MANUAL CONTROL HEATING, VENTILATION, AND AIR CONDITIONING SYSTEM 7B -- 21
DAEWOO M-150 BL2
D18B511B

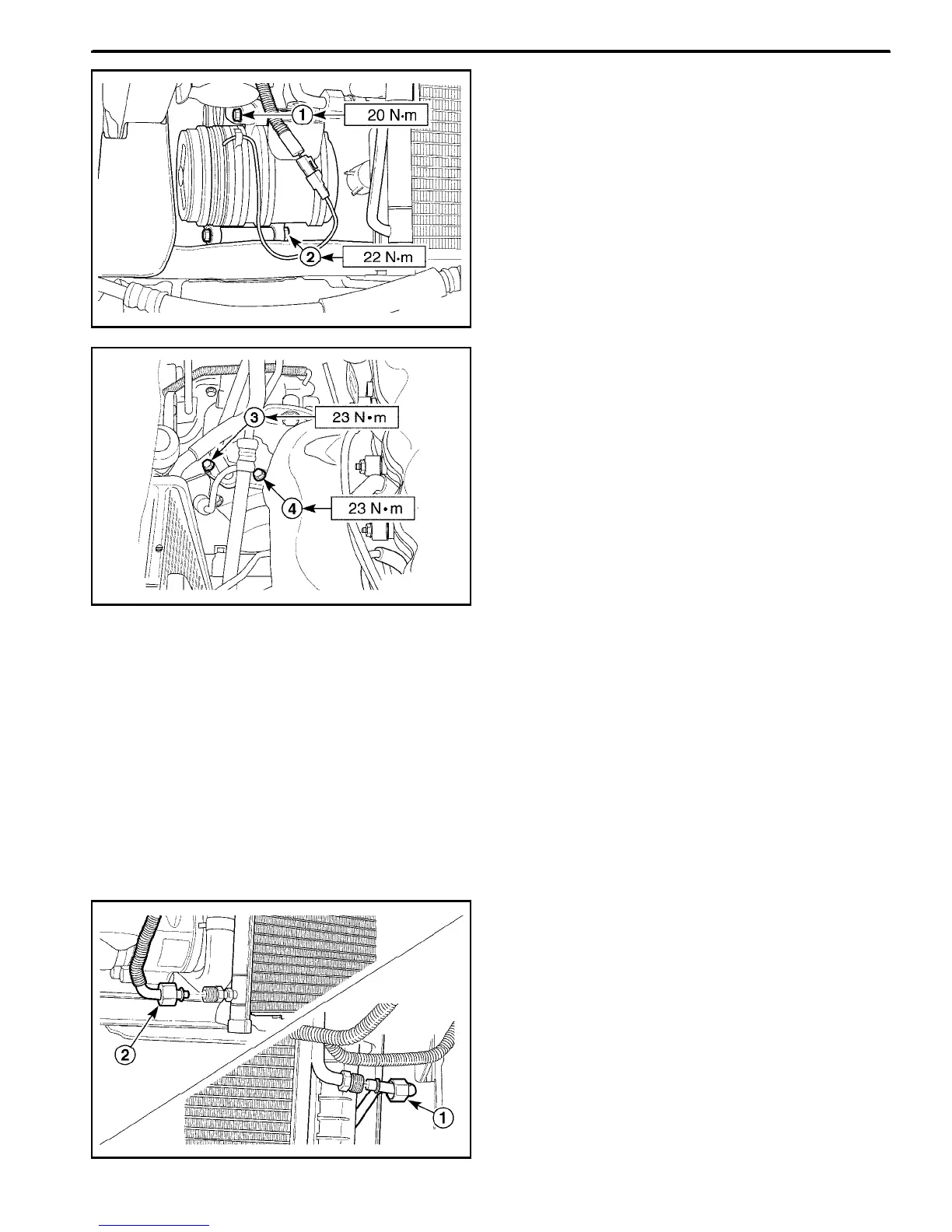

Installation Procedure
1. Install the compressor with the mounting bolts.
Tighten
D Tighten the compressor--to--bracket upper bolt to
20 NSm (15 lb-ft) (1).
D Tighten the compressor--to--bracket lower bolts to
22 NSm (16 lb-ft) (2).
2. Connect the electrical connector.
D18B512A
3. Install the A/C high pressure pipe line to the compres-
sor with the bolt.
Tighten
Tighten the A/C high pressure pipe line bolt to 23 NSm
(17 lb-ft) (3).
4. Install the A/C low pressure pipe line to the compres-
sor with the bolt.
Tighten
Tighten the A/C low pressure pipe line bolt to 23 NSm
(17 lb-ft) (4).
5. Evacuate and charge the system. Refer to “Discharg-
ing, Adding Oil, Evacuating, and Charging Procedure
for A/C System” in this section.
6. Install the A/C belt. Refer to Section 6B, Power Steer-
ing Pump.
7. Install the receiver dryer. Refer to “Receiver Dryer
and Dual Cut Switch” in this section.
D18B513A
CONDENSER
1. Disconnect the negative battery cable.
2. Remove the front bumper fascia. Refer to Section
9O, Bumpers and Fascias.
3. Discharge and recover the refrigerant. Refer to “Dis-
charging, Adding Oil, Evacuating, and Charging Pro-
cedures for A/C system” in this section.
4. Remove the condenser.
D Loosen the condenser pipe--to--compressor pipe
fitting (1).
D Loosen the condenser pipe--to--receiver dryer pipe
fitting (2).
To Next Page
