SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR) 8B–65
DAEWOO M-150 BL2
D110B308

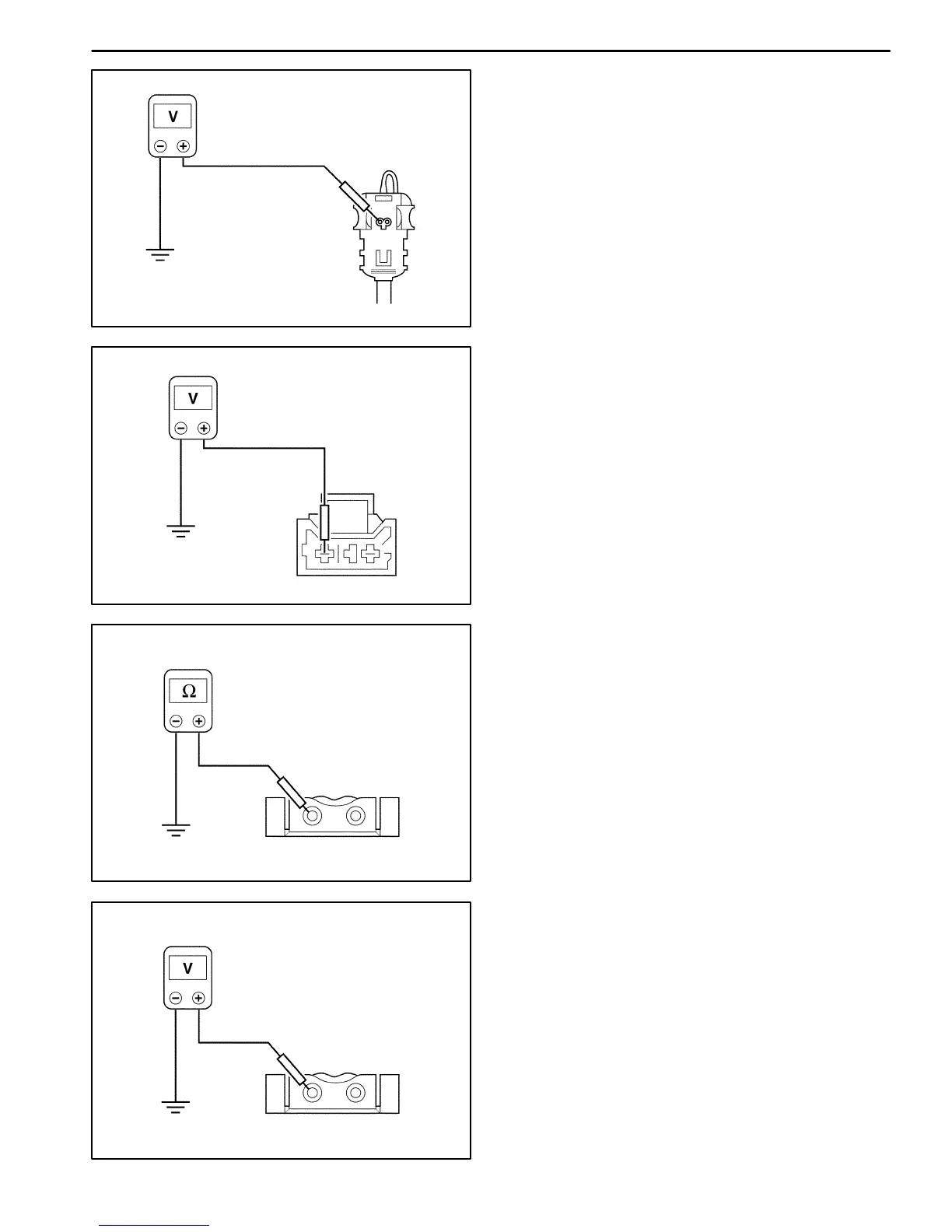

DIAGNOSTIC ILLUSTRATION 6
Checking the driver airbag circuit for a short to voltage.
D110B309
DIAGNOSTIC ILLUSTRATION 7
Checking the clock spring connector for a short to volt-
age on the sensing and diagnostic module side.
D110B310
.
DIAGNOSTIC ILLUSTRATION 8
Checking the passenger airbag circuit continuity on the
sensing and diagnostic module side of the connector.
D110B311
DIAGNOSTIC ILLUSTRATION 9
Checking the passenger airbag circuit for a short to
ground.
