Daewoo MATIZ - Diagnostic Information and Procedure; Compression Pressure Check; Oil Pressure Check

SOHC ENGINE MECANICAL 1B–9
DAEWOO M-150 BL2
DIAGNOSTIC INFORMATION AND PROCEDURE

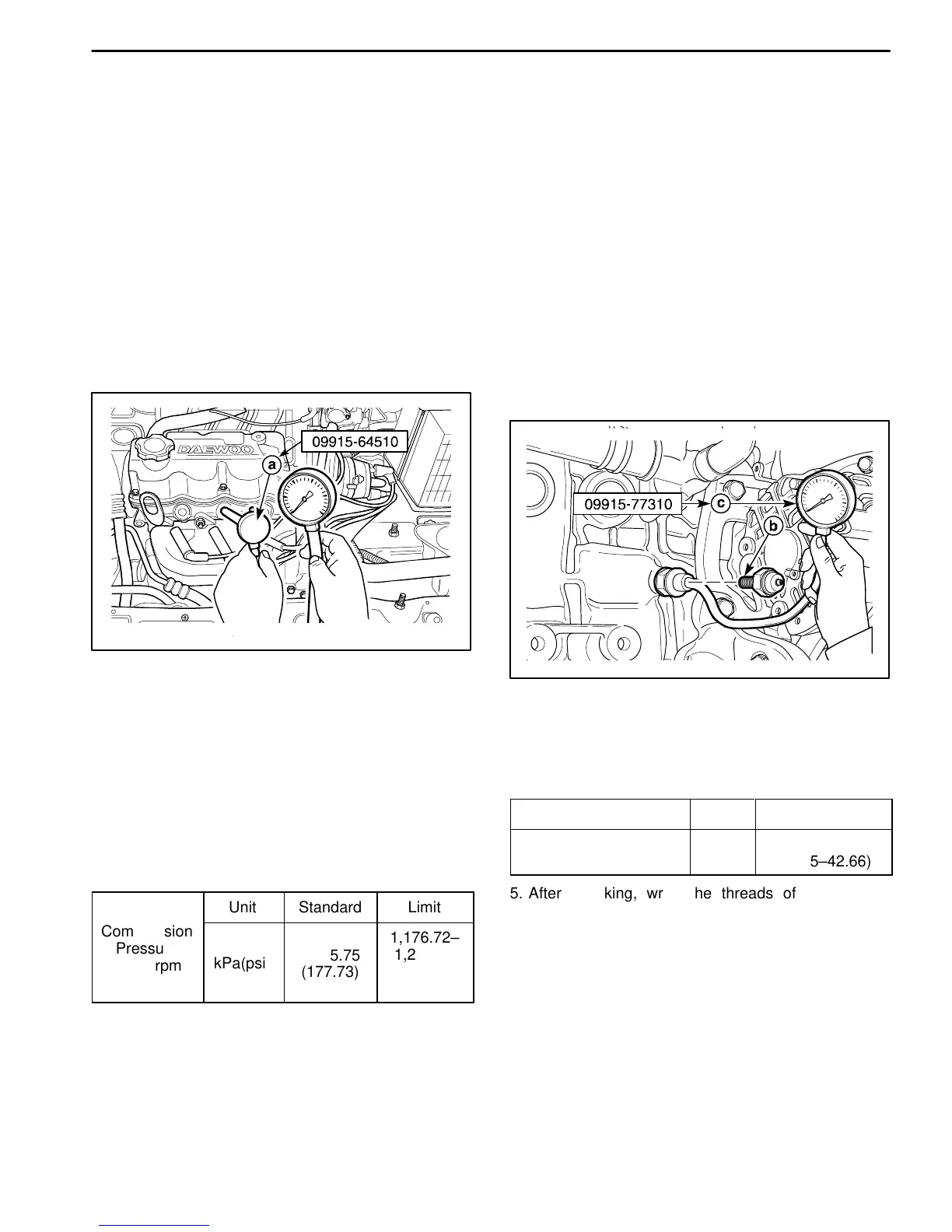

COMPRESSION PRESSURE CHECK
Tools Required
09915–64510 Compression Pressure Gauge
Check the compression pressure in the following proce-
dures:
1. Warm up the engine to the normal operating tempera-
ture (Cooling temperature : 80–90_C (176–194_F)).
2. Stop the engine and then remove the high tension
cable and the spark plug.
3. Disconnect the distributor optical sensor connector.
4. Install the compression pressure gauge 09915–64510
(a) in the hole of spark plug.
D12B301A
5. Disengage the clutch in Neutral (to lighten starting
load on engine upon cranking), and depress the ac-
celerator all the way to make the throttle fully open.
6. Crank the engine with the starting motor, and read the
highest pressure on the compression pressure gauge.
D The difference of measured value between cylinders
is 98.06kPa (14.22 psi) and less.
D On checking, make the connection perfectly airtight
between the hole of spark plug and compression pres-
sure gauge.
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁ
ÁÁÁÁ
Unit
ÁÁÁÁÁ
ÁÁÁÁÁ
Standard
ÁÁÁÁÁ
ÁÁÁÁÁ
Limit
ÁÁÁÁÁÁ
Á
ÁÁÁÁ
Á
Á
ÁÁÁÁ
Á
ÁÁÁÁÁÁ
Compression
Pressure
– 400 rpm
kPa(psi)
1,225.75
(177.73)
1,176.72–
1,274.78
(170.62–
184.84)
7. After checking, remove the gauge and install the re-
moved parts.
OIL PRESSURE CHECK
Tools Required
09915–77310 Oil Pressure Gauge
Prior to check oil pressure, check the followings:
D Check oil level and add if required.
D Replace the discolored, deteriorated or diluted oil.
D Check any oil leakage and repair the defective parts.
Check the compression pressure in the following proce-
dures:
1. Remove the oil pressure switch (b) from the cylinder
block.
2. Install the oil pressure gauge 09915–77310 (c) to the
mounting place of the oil pressure switch.
D12B302A
3. Start the engine and warm up to the normal operating
temperature.
4. Raise the engine speed up to 2,000rpm and then
read oil pressure.
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
Item
ÁÁÁÁ
ÁÁÁÁ
Unit
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁ
Standard
Oil Pressure – 2000rpm
kPa
(psi)
245.15–294.18
(35.55–42.66)
5. After checking, wrap the threads of oil pressure
switch with a seal tape and tighten it to the specified
torque 12–16 NSm (106–144 lb-in).
6. Start the engine and check oil pressure switch for oil
leakage.
