Daewoo MATIZ - 5 C-2; Clutch Release Bearing, Shaft and Bushing

5C –8 CLUTCH
DAEWOO M-150 BL2
D13C5071
Installation Procedure
1. Install in the reverse order of removal.

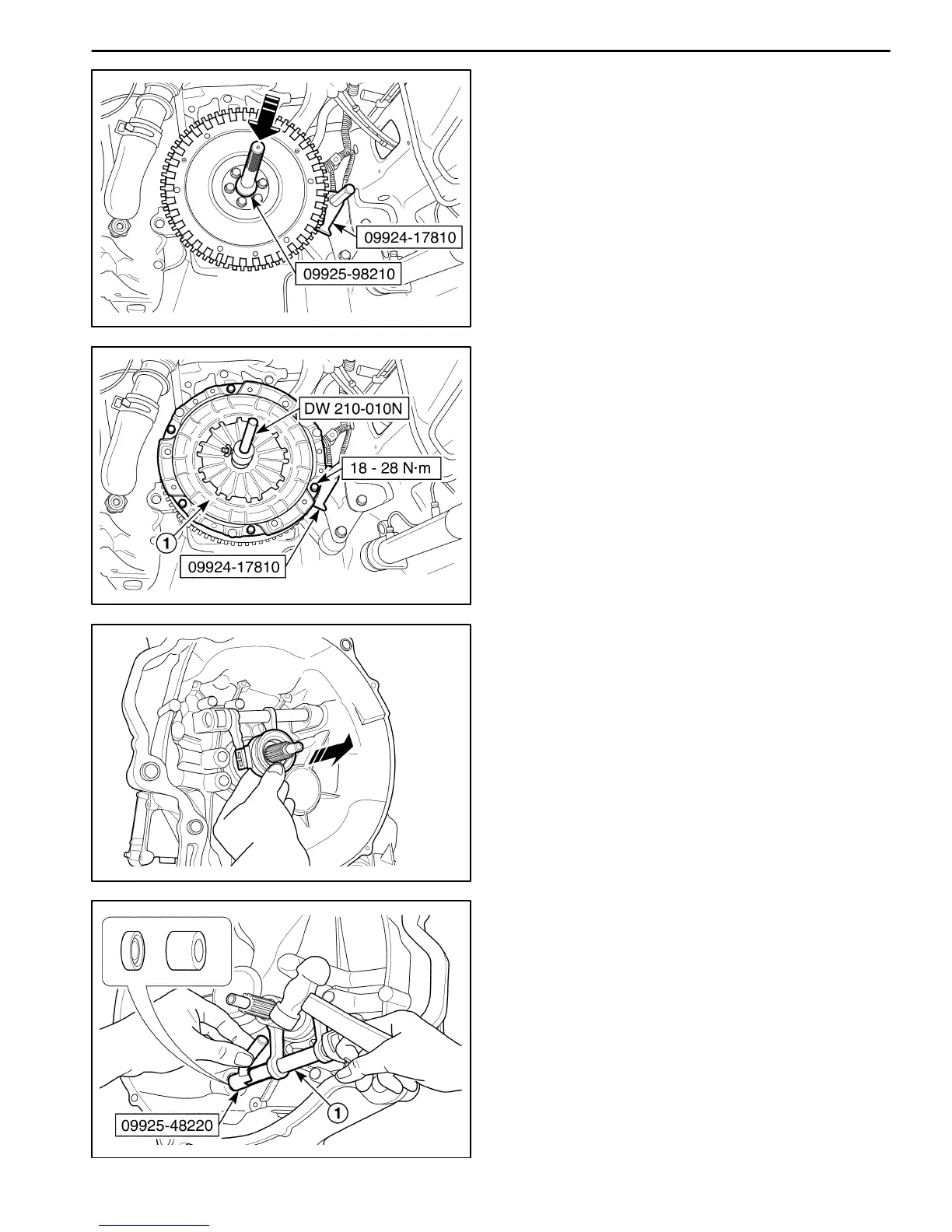

2. Install the input shaft bearing using the input shaft
bearing installer 09925–98210 and the flywheel hold-
er 09924–17810.
D13C508B
3. Install the pressure plate and the clutch disc.
D Install the clutch disc.
D Install the pressure plate (1).
D Align the pressure plate and the clutch disc onto the
flywheel using the clutch center guide DW210–010
and the flywheel holder 09924–17810.
D Install the pressure plate bolts.
Tighten
Tighten the bolts to 18–28 NSm (13–21 lb-ft).
D103C510
D103C509
CLUTCH RELEASE BEARING, SHAFT
AND BUSHING
Tools Required
09923–46040 Bushing Joint Pipe
09925–48220 Bushing Remover/Installer
09930–30102 Sliding Shaft
09943–88211 Bushing, Bearing Installer
Removal Procedure
1. Remove the transaxle from the vehicle. Refer to Sec-
tion 5B, Manual Transaxle.
2. Remove the release arm. Refer to “Clutch Release
Arm” in this section.
3. Remove the release bearing.
4. Remove the release shaft and bushing.
D Remove the bushing (No.2) and seal using the
bushing remover 09925–48220 and hammer.
D Remove the release shaft (1).
