Daewoo MATIZ - Repair Instructions; Turn Signal Lamps; Side Turn Signal Lamps

9B–8 LIGHTING SYSTEMS
DAEWOO M-150 BL2
D19D505A

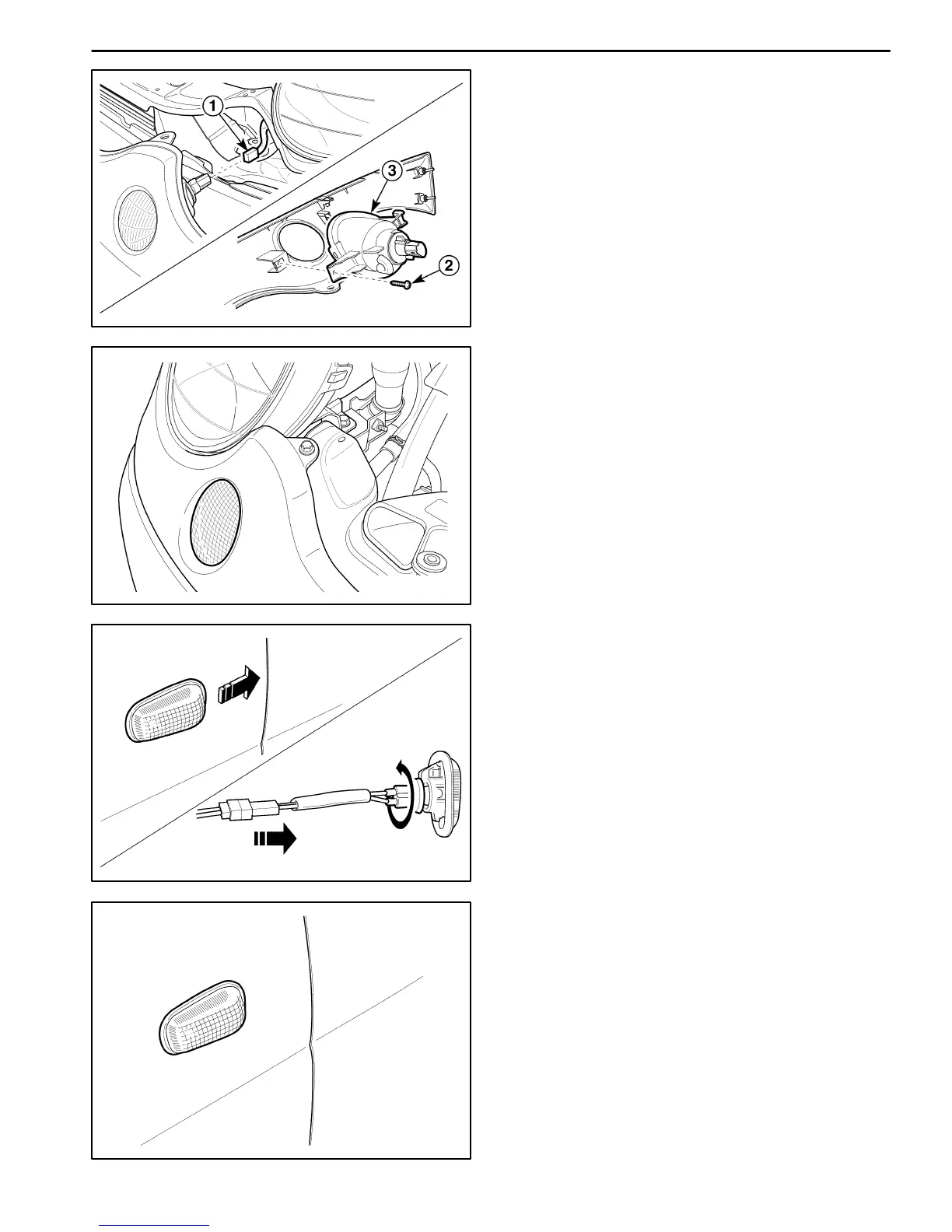

TURN SIGNAL LAMPS
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the front bumper spacer. Refer to Section
9M, Exterior Trim.
3. Remove the turn signal lamps from the front bumper
spacer.
D Disconnect the electrical connector (1).
D Remove the screw (2).
D Remove the turn signal lamp assembly (3).
D19D506A
Installation Procedure
1. Connect the electrical connector.
2. Install the turn signal lamp assembly with the screw.
3. Install the front bumper spacer. Refer to Section 9M,
Exterior Trim.
4. Connect the negative battery cable.
D29B001
SIDE TURN SIGNAL LAMPS
Removal Procedure
1. Disconnect the negative battery cable.
2. Slide the side turn signal lamp rearward.
3. Remove the lamp.
4. Disconnect the electrical connector.
D29B002
Installation Procedure
1. Connect the electrical connector.
2. Install the side turn signal lamp.
3. Connect the negative battery cable.
