A/C PUSH KNOB
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Remove the instrument cluster housing trim panel.
Refer to Section 9E, Instrumentation/Driver Informa-
tion.
2. Remove the A/C push knob.

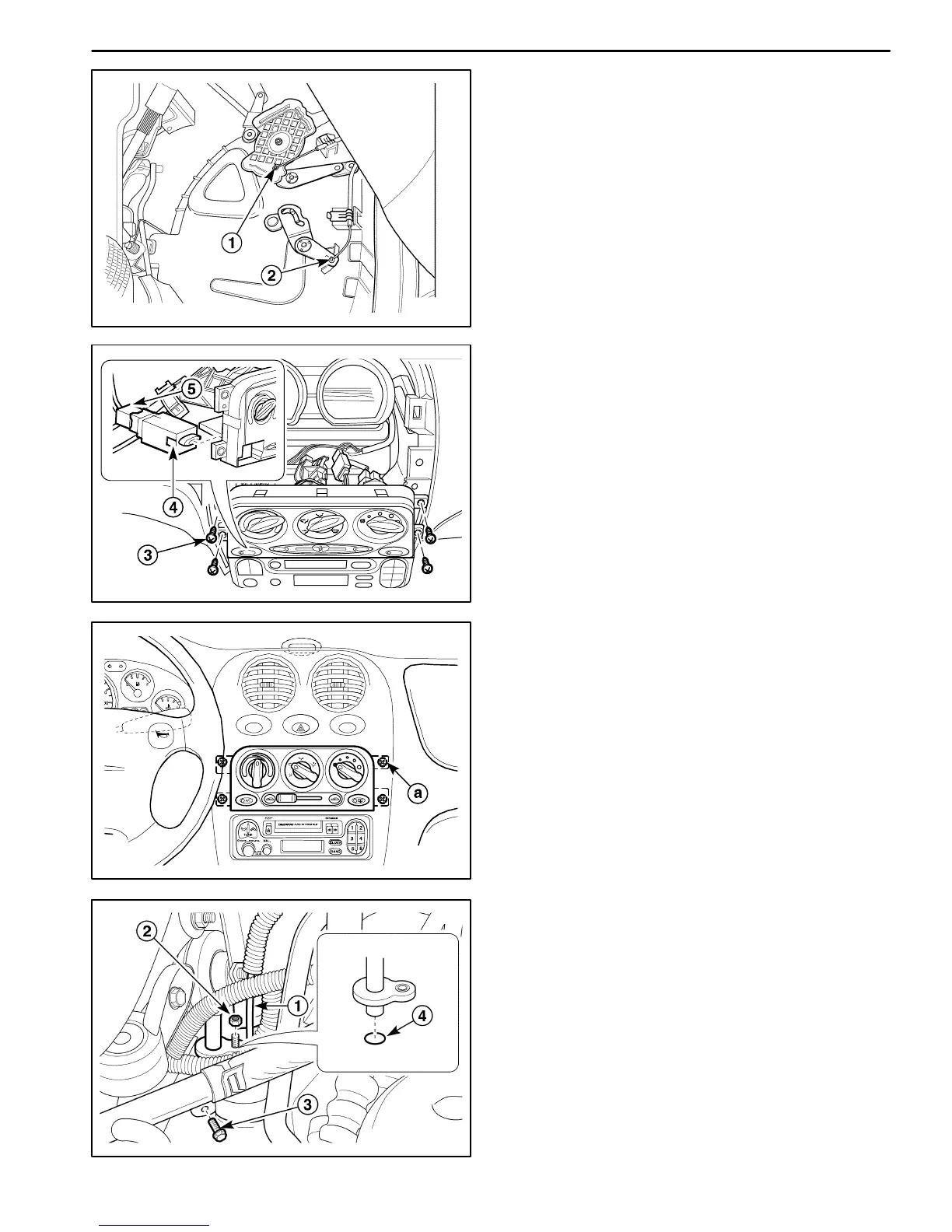

D Disconnect the temperature control cable from the
heater module (1).
D Disconnect the mode control cable from the heater
module (2).
D108B502
D Remove the control assembly retaining screws (3).
D Pull out the control assembly.
D Remove the A/C push knob by pushing the knob
lock (4).
D Disconnect the A/C push knob electrical connector
(5).
D108A506
Installation Procedure
1. Install the A/C push knob to the control assembly.
2. Connect the A/C push knob electrical connector.
3. Install the control assembly with the screws.
4. Connect the mode control cable to the heater mod-
ule.
5. Connect the temperature control cable to the heater
module.
6. Install the instrument cluster housing trim panel. Re-
fer to Section 9E, Instrumentation / Driver Informa-
tion.
D18B503A
RECEIVER DRYER AND DUAL CUT
SWITCH
Removal Procedure
1. Recover the refrigerant. Refer to “Discharging, Add-
ing Oil, Evaculating, and Charging Procedures for
A/C System” in this section.
2. Remove the front bumper fascia. Refer to Section
9O, Bumpers and Fascias.
3. Remove the receiver dryer.
D Disconnect the dual cut switch connector (1).
D Remove the receiver dryer flange nuts (2).
D Remove the bracket bolt (3).
D Discard the O–ring (4).
