5B–10 FIVE-SPEED MANUAL TRANSAXLE
DAEWOO M-150 BL2
REPAIR INSTRUCTION
ON–VEHICLE SERVICE
D103B501
MANUAL TRANSAXLE ASSEMBLY
Tools Required
DW110–021 Engine Support Fixture
DW220–031 Transaxle Remove/Install Support
Removal Procedure
1. Remove the air cleaner assembly. Refer to Section
1B, SOHC Engine Mechanical.
2. Remove the battery and battery tray. Refer to Section
1E, Engine Electrical.

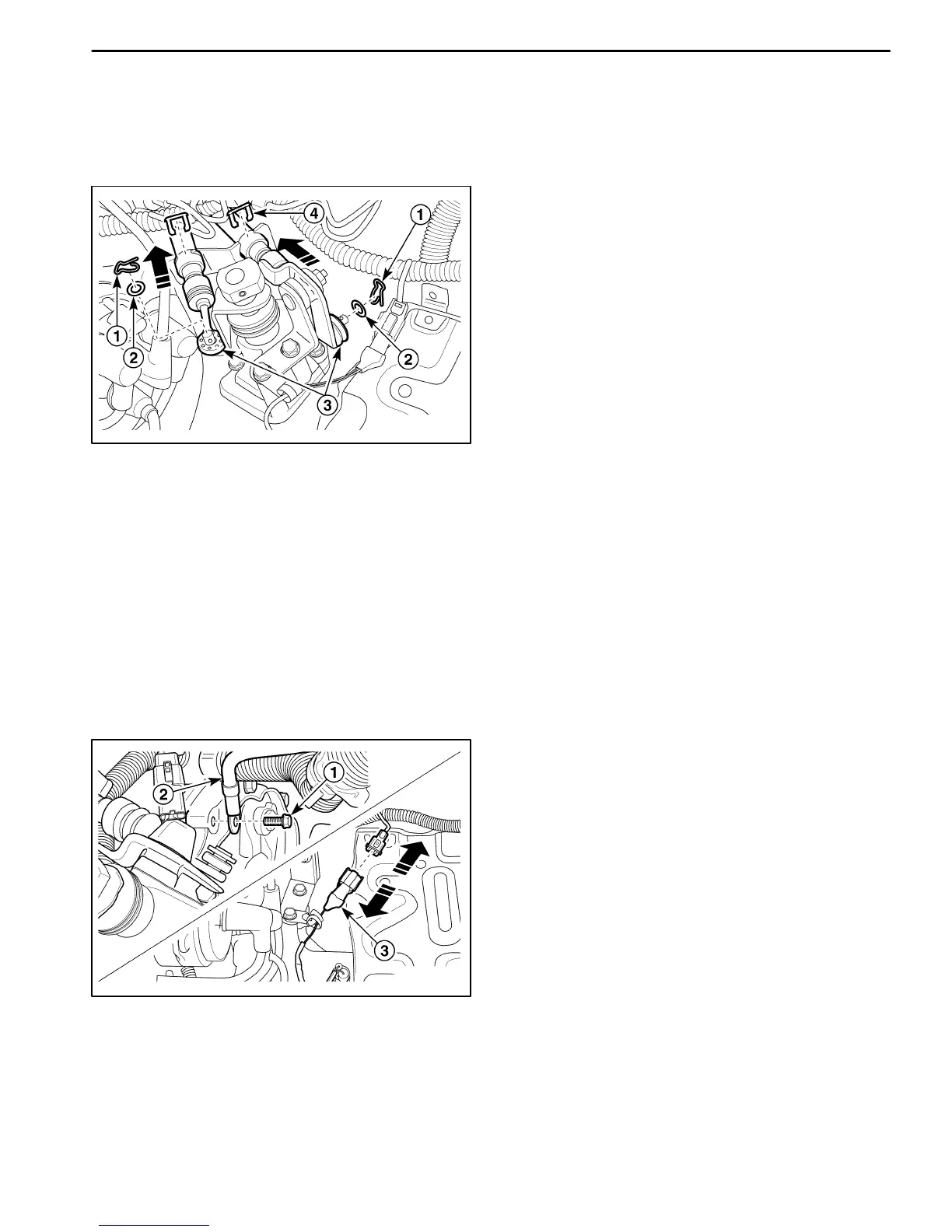

3. Disconnect the select and the shift cable.
D Remove the cable pins (1).
D Remove the washers (2).
D Disconnect the select and the shift cable (3).
D Remove the cable E–rings (4).
D Disconnect the cables from the cable bracket.
D103B502
4. Remove the engine wiring harness bending strap.
5. Disconnect the ground wire and the backup lamp
switch connector.
D Remove the ground wire bolt (1).
D Disconnect the ground wire (2).
D Disconnect the backup lamp switch connector (3).
