FRONT DISC BRAKES 4D–7
DAEWOO M-150 BL2
D107B504
CALIPER ASSEMBLY

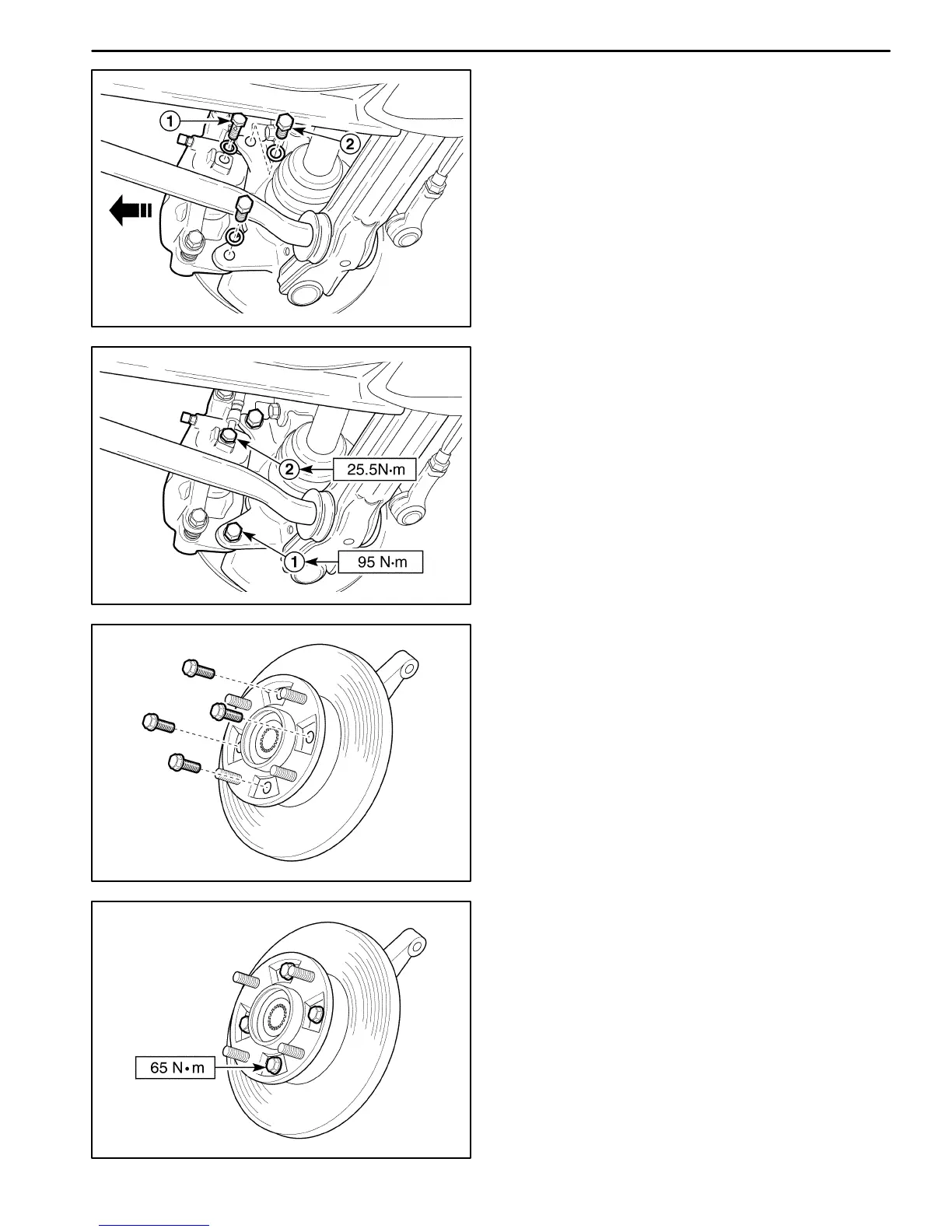

Removal Procedure
1. Remove the front wheels. Refer to Section 2E, Tires
and Wheels.
2. Remove the caliper assembly.
D Remove the brake hose coupling bolt (1).
D Plug the opening in the brake hose to prevent fluid
loss and contamination.
D Remove the caliper mounting bolts (2).
D17B505B
Installation Procedure
1. Install the caliper assembly with the bolts (1).
Tighten
Tighten the caliper–to–steering knuckle bolts to 95
NSm (70 lb-ft).
2. Connect the brake hose (2).
Tighten
Tighten the brake hose inlet fitting–to–coupling bolt to
25.5 NSm (19.1 lb-ft).
3. Install the front wheels. Refer to Section 2E, Tires
and Wheels.
4. Bleed the brake system. Refer to Section 4A, Hy-
draulic Brakes.
D117B506
ROTOR
Removal Procedure
1. Remove the steering knuckle. Refer to Section 2C,
Front Suspension.
2. Remove the rotor bolts from the front wheel hub.
3. Remove the rotor. Refer to Section 2C, Front Sus-
pension.
D17B507A
Installation Procedure
1. Install the rotor to the front wheel hub by tightening
the detent bolts.
Tighten
Tighten the rotor–to–front wheel hub detent bolts to
65 NSm (48 lb-ft).
2. Install the steering knuckle. Refer to Section 2C, Front
Suspension.
