MANUAL CONTROL HEATING, VENTILATION, AND AIR CONDITIONING SYSTEM 7B -- 25
DAEWOO M-150 BL2
D108B526
A/C LOW PRESSURE PIPE LINE
(Left--Hand Drive Shown, Right--Hand
Drive Similar)
Removal Procedure
1. Disconnect the negative battery cable.
2. Discharge and recover the refrigerant. Refer to “Dis-
charging, Adding Oil, Evacuating, and Charging Pro-
cedures for A/C System” in this section.
3. Remove the A/C low pressure pipe line.

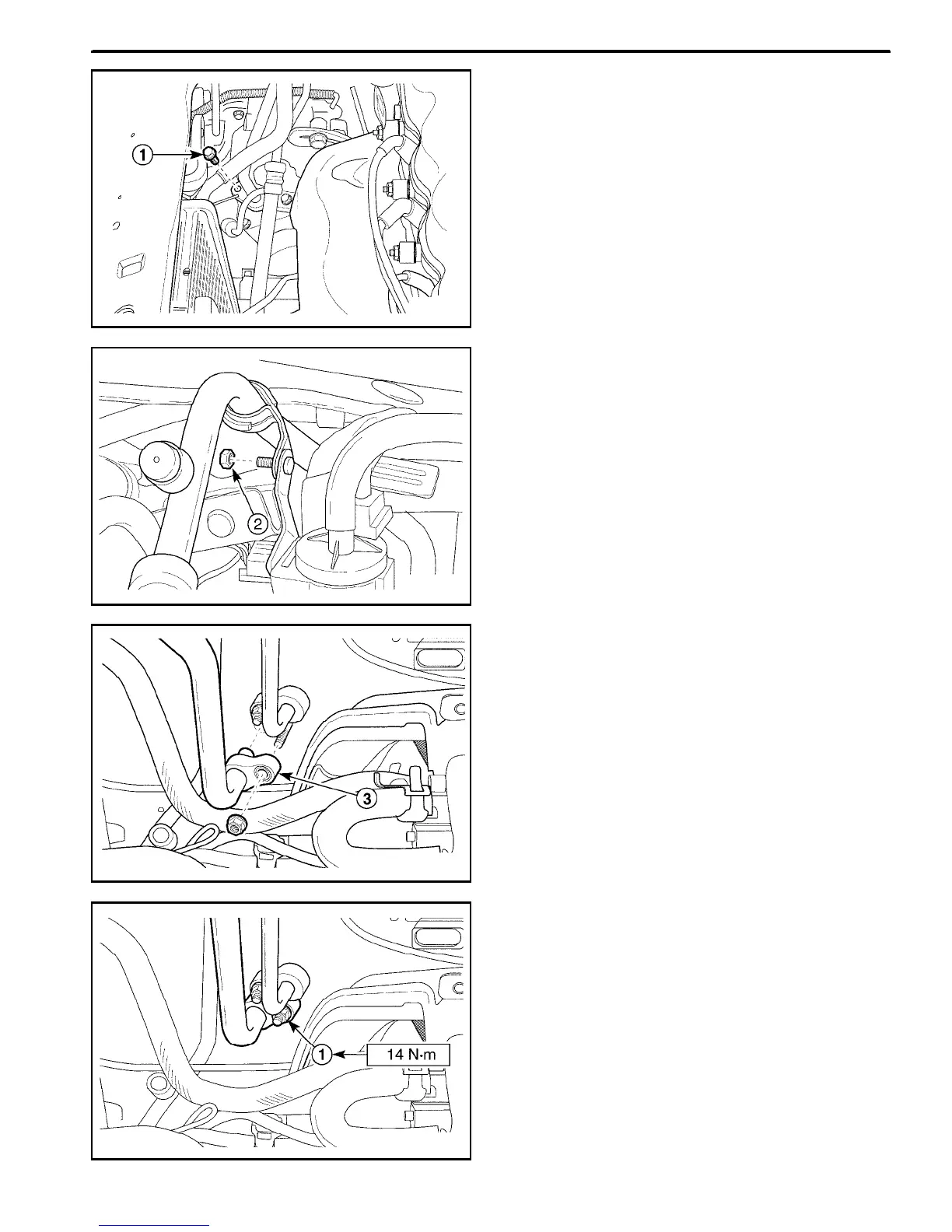

D Remove the bolt securing the A/C low pressure
pipe line at the compressor (1).
D18B527A
D Remove the bracket nut from shut bar (2).
D18B528A
D Remove the purge control valve. Refer to Section
1F, Engine Controls.
D Loosen the nut securing the A/C low pressure pipe
line at the evaporator (3).
D18B529B
Installation Procedure
Important: Discard the removed O--rings.
1. Install the A/C low pressure pipe line.
Tighten
D Tighten the nut securing the A/C low pressure pipe
line at the evaporator to 14 NSm (10.5 lb-ft) (1).
