7B -- 24 MANUAL CONTROL HEATING, VENTILATION, AND AIR CONDITIONING SYSTEM
DAEWOO M-150 BL2
D18B522A
D18B523B
D18B524A
Installation Procedure
Important: Discard the removed O--rings.

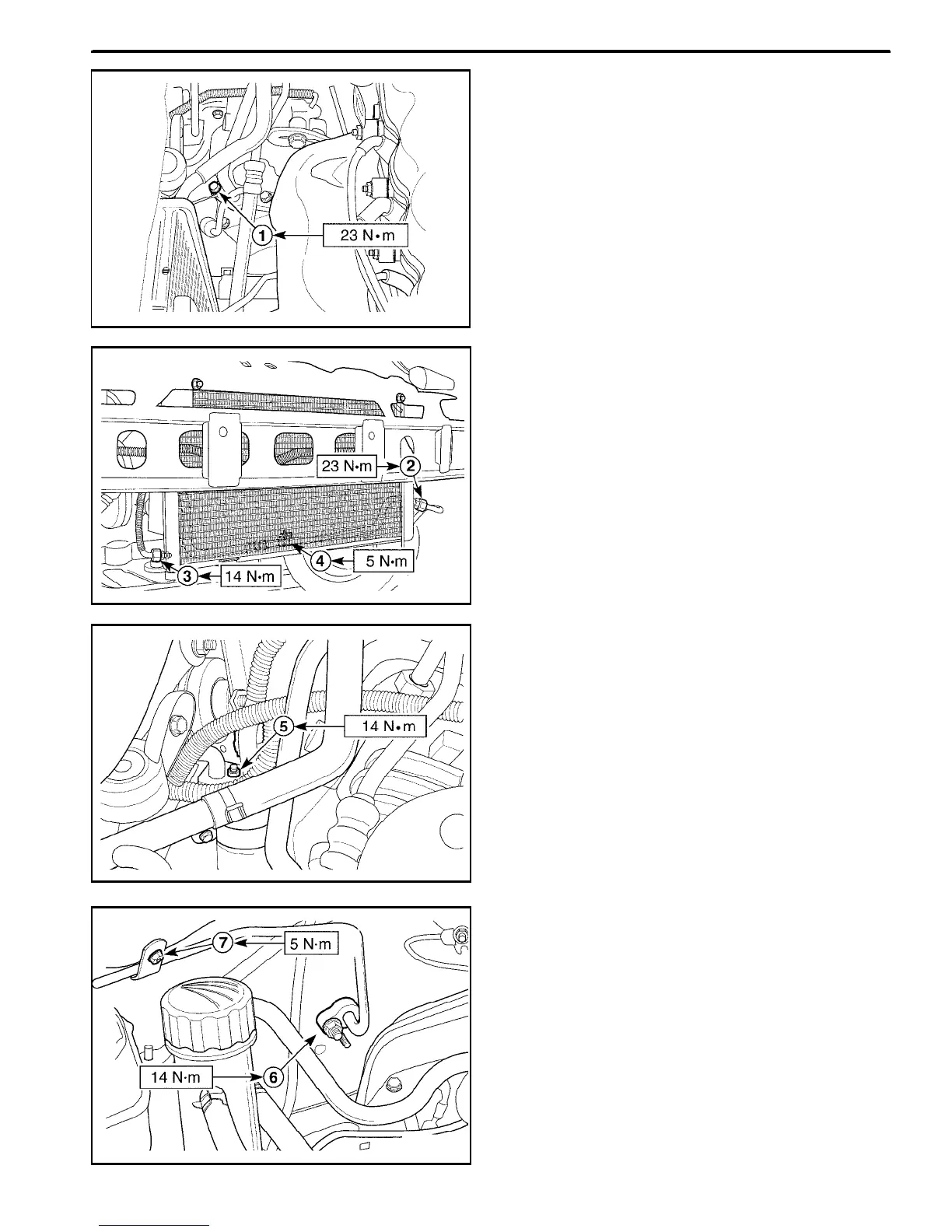

1. Install the high pressure pipe lines with the bolts, the
nuts, and the fittings.
Tighten
D Tighten the bolt securing the high pressure pipe
line to the compressor to 23 NSm (17 lb-ft) (1).
D Tighten the fitting securing the high pressure pipe
line to the condenser pipe line to 23 NSm (17 lb-ft)
(2).
D Tighten the fitting securing the high pressure pipe
line to the receiver dryer to 14 NSm (10.5 lb-ft) (3).
D Tighten the bracket nut to 5 NSm (44 lb-in) (4).
D Tighten the receiver dryer flange nuts to 14 NSm
(10.5 lb-ft) (5).
D Tighten the nut securing the high pressure pipe line
to the evaporator to 14 NSm (10.5 lb-ft) (6).
D Tighten the bracket nut to 5 NSm (44 lb-in) (7).
2. Install the purge control valve. Refer to Section 1F,
Engine controls.
3. Evacuate and recharge the system. Refer to “Dis-
charging, Adding Oil, Evaculating, and Charging Pro-
cedures for A/C System” in this section.
4. Install the front bumper fascia. Refer to Section 9O,
Bumpers and Fascias.
5. Connect the negative battery cable.
D18B525B
