MANUAL CONTROL HEATING, VENTILATION, AND AIR CONDITIONING SYSTEM 7B -- 23
DAEWOO M-150 BL2
D18B518A

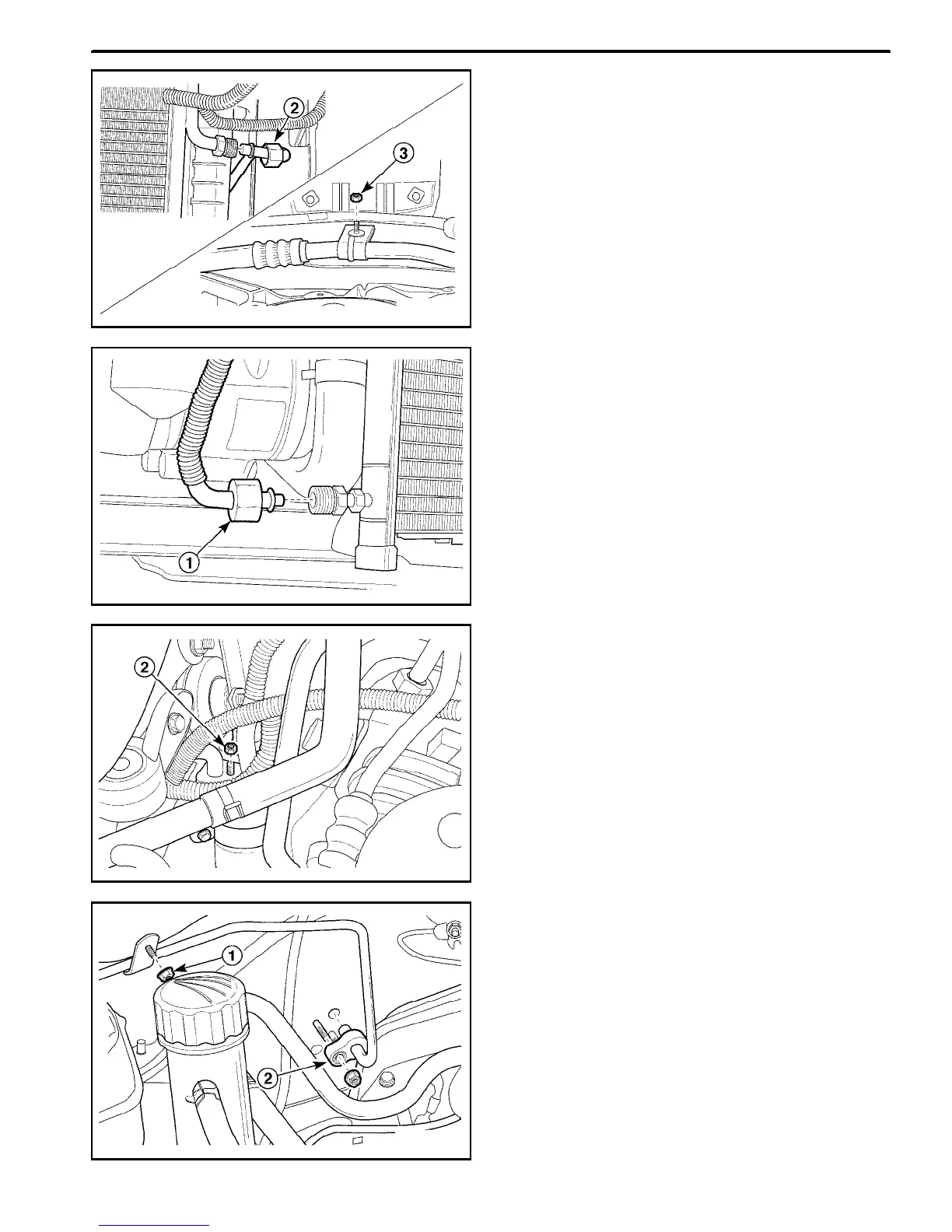

D Loosen the fitting securing the high pressure pipe
line to the condenser pipe line (2).
D Remove the c lamp nut (3).
D18B519A
5. Remove the A/C high pressure pipe line between the
condenser and the receiver dryer.
D Loosen the fitting securing the receiver dryer to the
condenser (1).
D108B520
D Remove the r eceiver dryer flange nuts (2).
D18B521A
6. Remove the A/C high pressure pipe line between the
receiver dryer and the evaporator.
D Remove the purge control valve. Refer to Section
1F, Engine Controls.
D Remove the bracket nut (1).
D Loosen the fitting (2).
