INSTRUMENTATION/DRIVER INFORMATION 9E–9
DAEWOO M-150 BL2
D109B504
ASHTRAY
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure

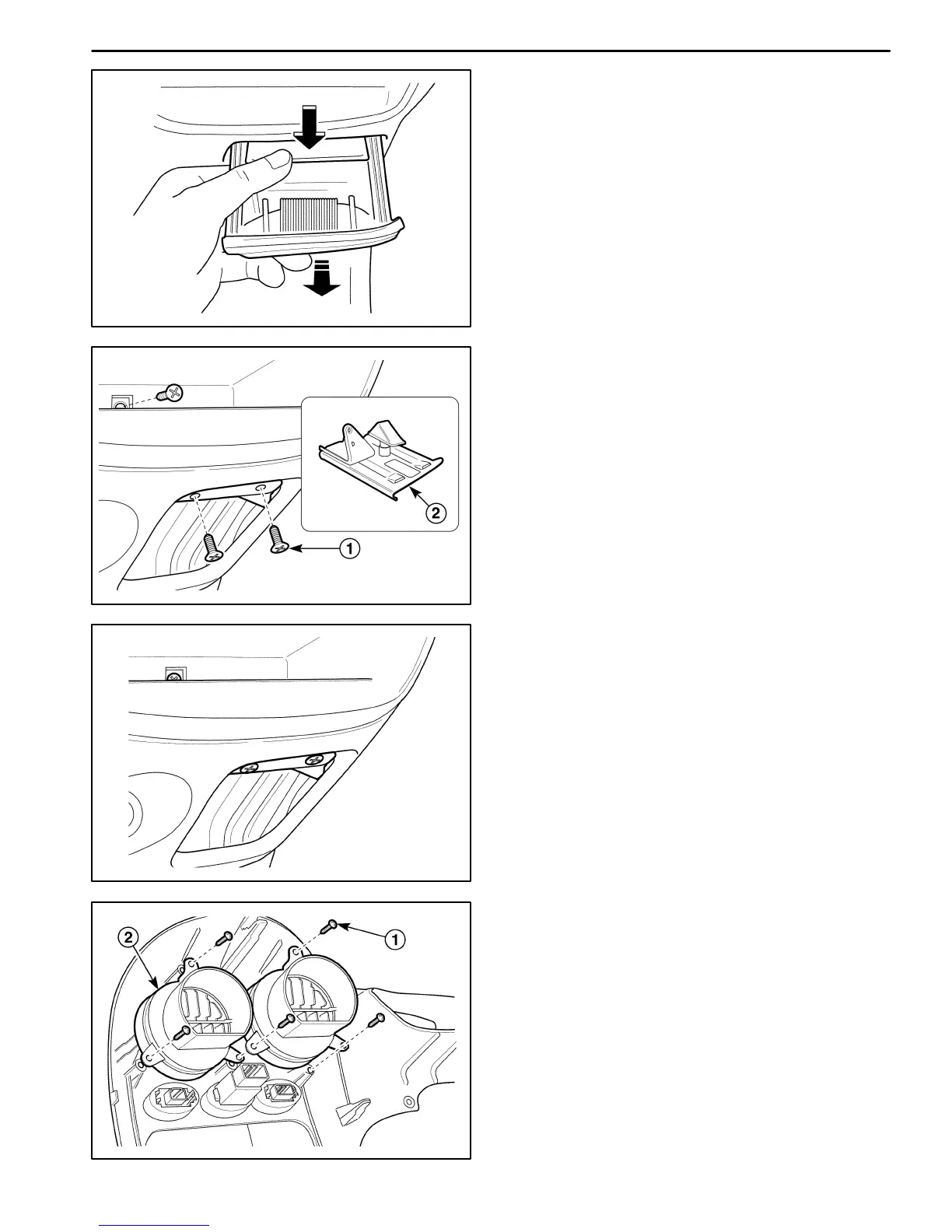

1. Remove the ashtray from the ashtray bracket.
D Pull off the ashtray by pressing the upper button.
D19B505A
2. Remove the ashtray bracket from the instrument pan-
el.
D Remove the screws (1).
D Remove the ashtray bracket (3).
D109B506
Installation Procedure
1. Install the ashtray bracket with the screws.
2. Install the ashtray.
D109B507
INSTRUMENT CLUSTER TRIM PANEL
VENTS
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Remove the instrument cluster trim panel from the in-
strument panel. Refer to “Instrument Cluster Trim
Panel” in this section.
2. Remove the vent from the instrument cluster trim
panel.
D Remove the screws (1).
D Remove the vents (2).
