4B –4 MASTER CYLINDER
DAEWOO M-150 BL2
REPAIR INSTRUCTIONS
ON–VEHICLE SERVICE
MAB4B001
D107A514
MASTER CYLINDER ASSEMBLY
Removal Procedure
1. Remove the air filter assembly. Refer to Section 1B,
Engine Mechanical.
2. For vehicles with the non–ABS braking system, re-
move the proportioning valve. Refer to “Proportioning
Valve” in this section.

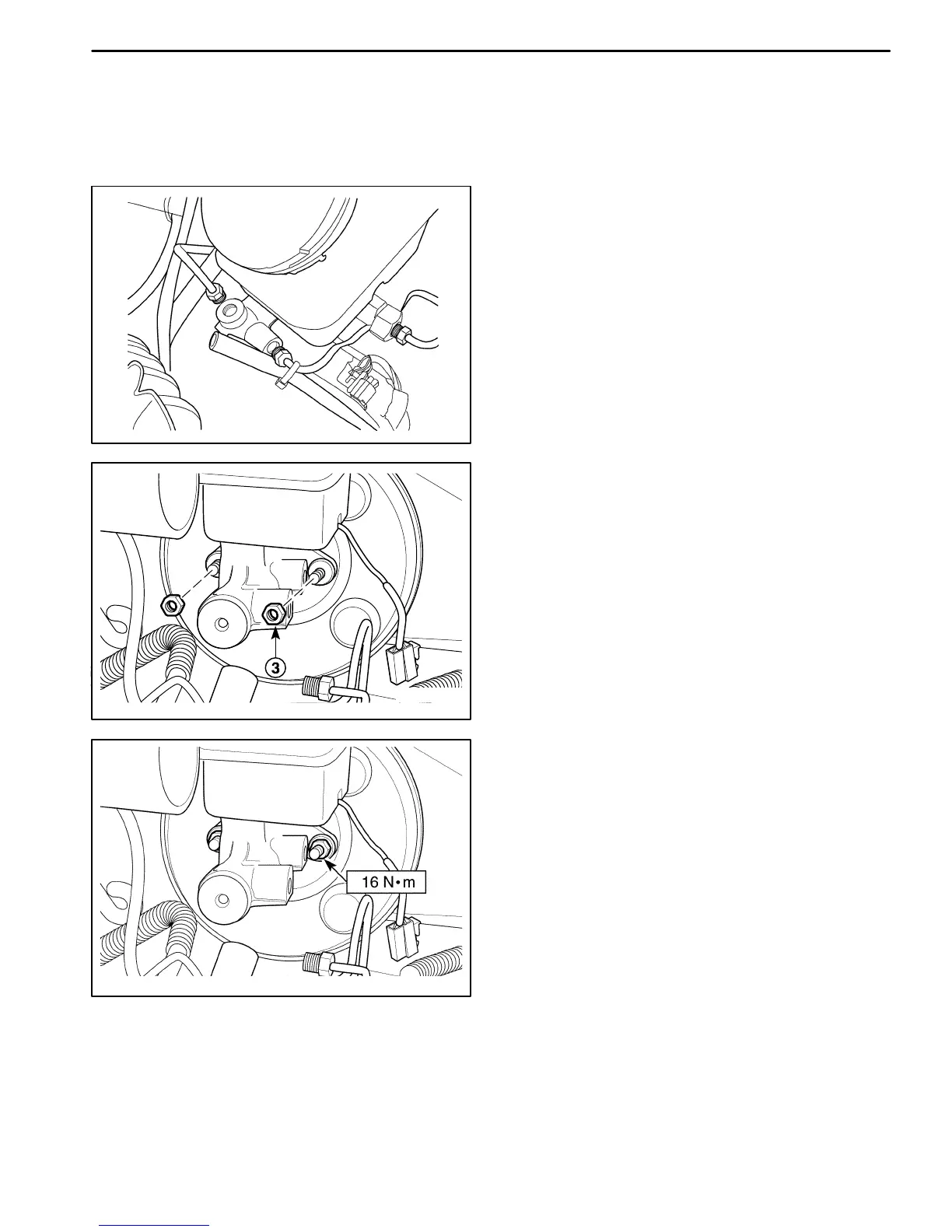

3. Remove the master cylinder.
D Disconnect the electrical connector.
D Loosen the brake pipe fittings.
D Plug the opening in the master cylinder to prevent
fluid loss or contamination.
Notice: Brake fluid may damage paintwork, if spillage
onto paintwork, wash with cold water immediately.
D Remove the nuts mounting the master cylinder (3).
D17A515A
Installation Procedure
Important: Use only Daewoo recommended brake
fluid.
1. Install the master cylinder assembly with the nuts.
Tighten
Tighten the attaching nuts to 16 NSm (12 lb-ft).
