9D –8 WIPERS/WASHER SYSTEMS
DAEWOO M-150 BL2
D109D526
Installation Procedure

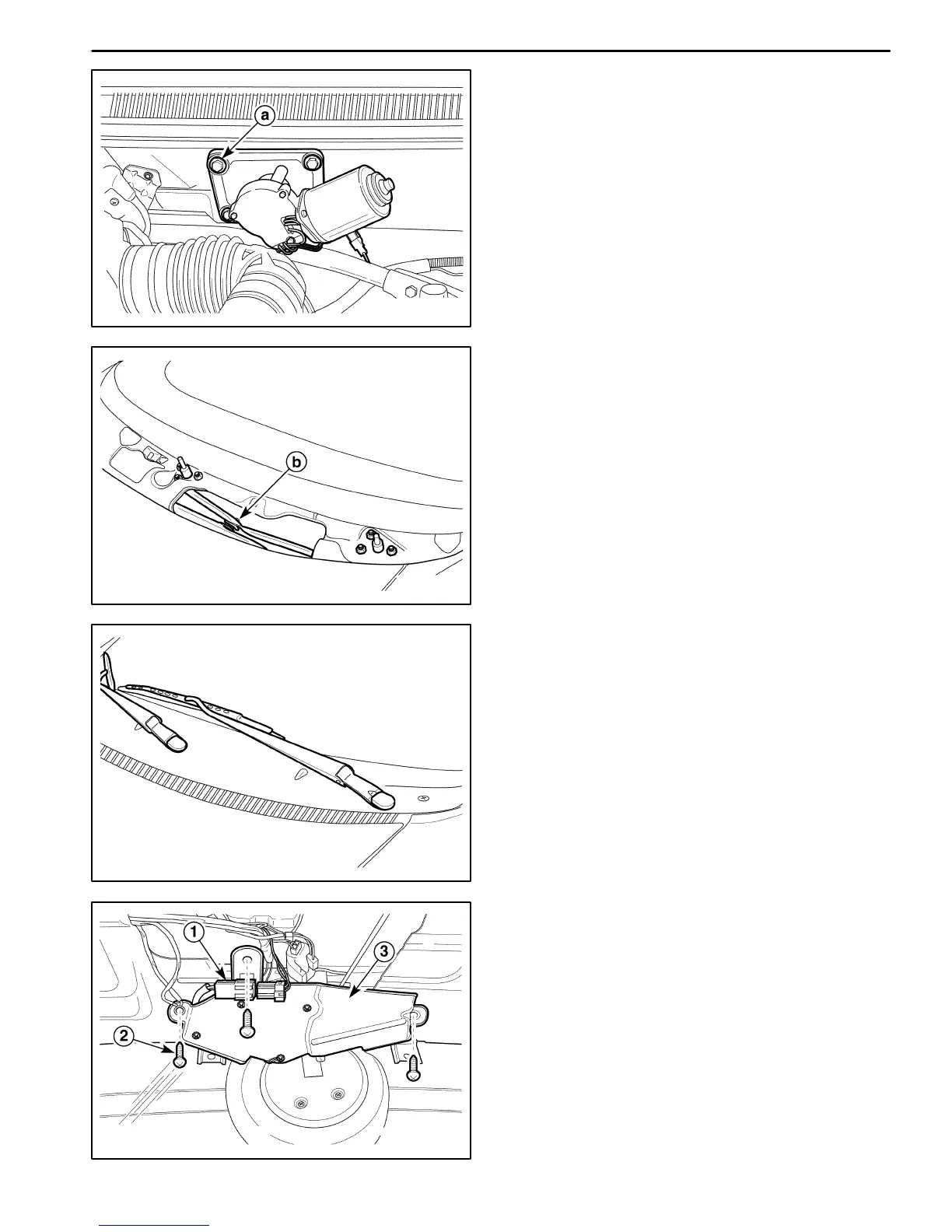

1. Install the wiper motor to the engine room with the
bolts.
a. Wiper motor assembly bolt.
2. Connect the electrical connector.
D109D527
3. Install the wiper linkage to the wiper motor linkage
ball.
b. Wiper linkage ball.
D109D528
4. Install the cowl vent grille. Refer to Section 9R, Body
Front End.
5. Install the windshield wiper arm. Refer to “Windshield
Wiper Arm” in this section.
6. Connect the negative battery cable.
D19D529A
REAR WINDOW WIPER MOTOR
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the wiper arm from the tailgate. Refer to
“Windshield Wiper Arm” in this section.
3. Remove the tailgate inside trim. Refer to Section 9G,
Interior Trim.
4. Remove the rear wiper motor assembly.
D Disconnect the electrical connector (1).
D Remove the screws (2).
D Remove the rear wiper motor assembly (3).
