4D –6 FRONT DISC BRAKES
DAEWOO M-150 BL2
REPAIR INSTRUCTIONS
ON–VEHICLE SERVICE
D107B501
SHOE AND LINING

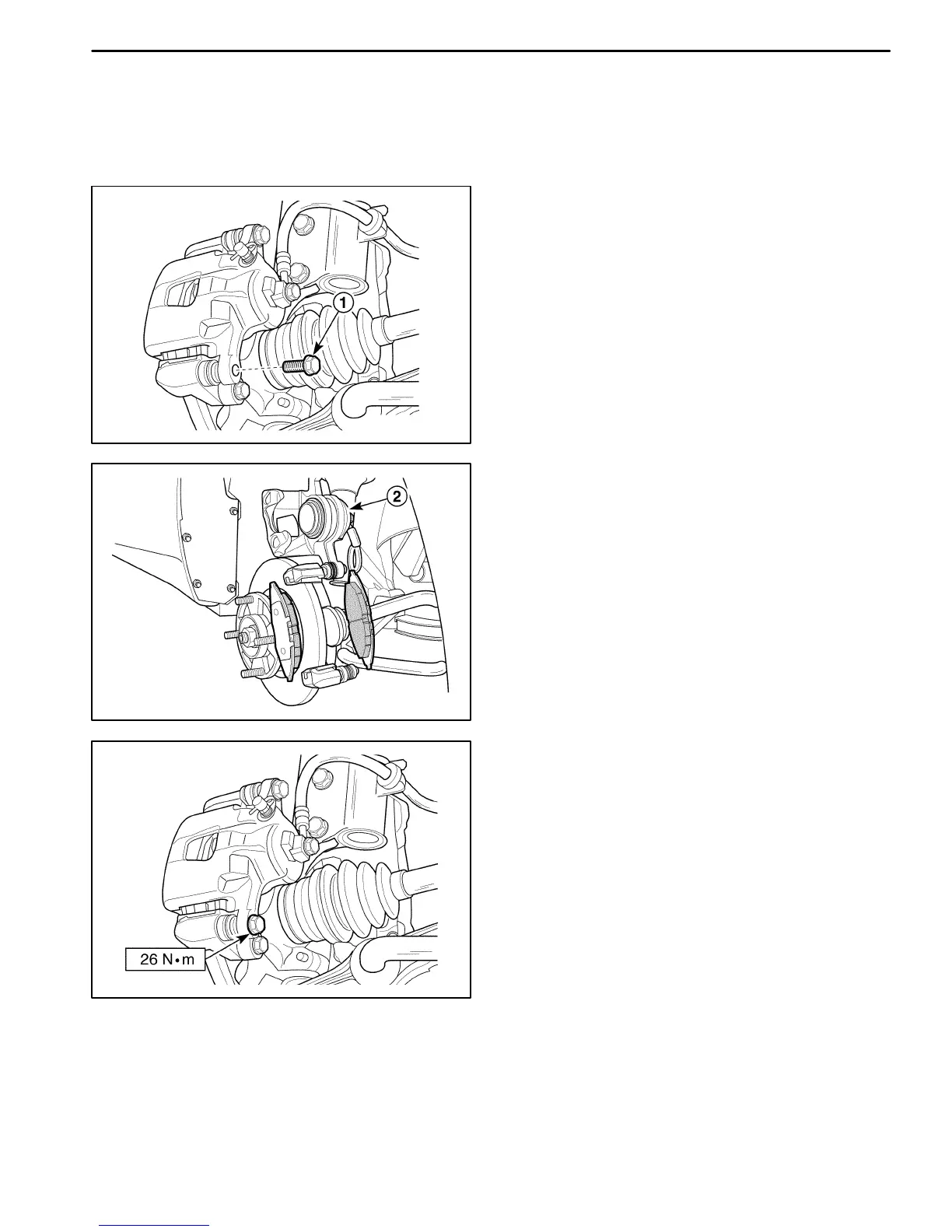

Removal Procedure
1. Remove the front wheels. Refer to Section 2E, Tires
and Wheels.
2. Remove the brake pads.
D Remove the pin bolt (1).
D107B502
D Lift up the cylinder assembly (2).
D17B503A
Installation Procedure
1. Install the brake pads and the cylinder assembly with
the pin bolt.
Tighten
Tighten the pin bolt to 26 NSm (19 lb-ft).
2. Install the front wheels. Refer to Section 2E, Tires
and Wheels.
