HEATING AND VENTILATION SYSTEM 7A–3
DAEWOO M-150 BL2

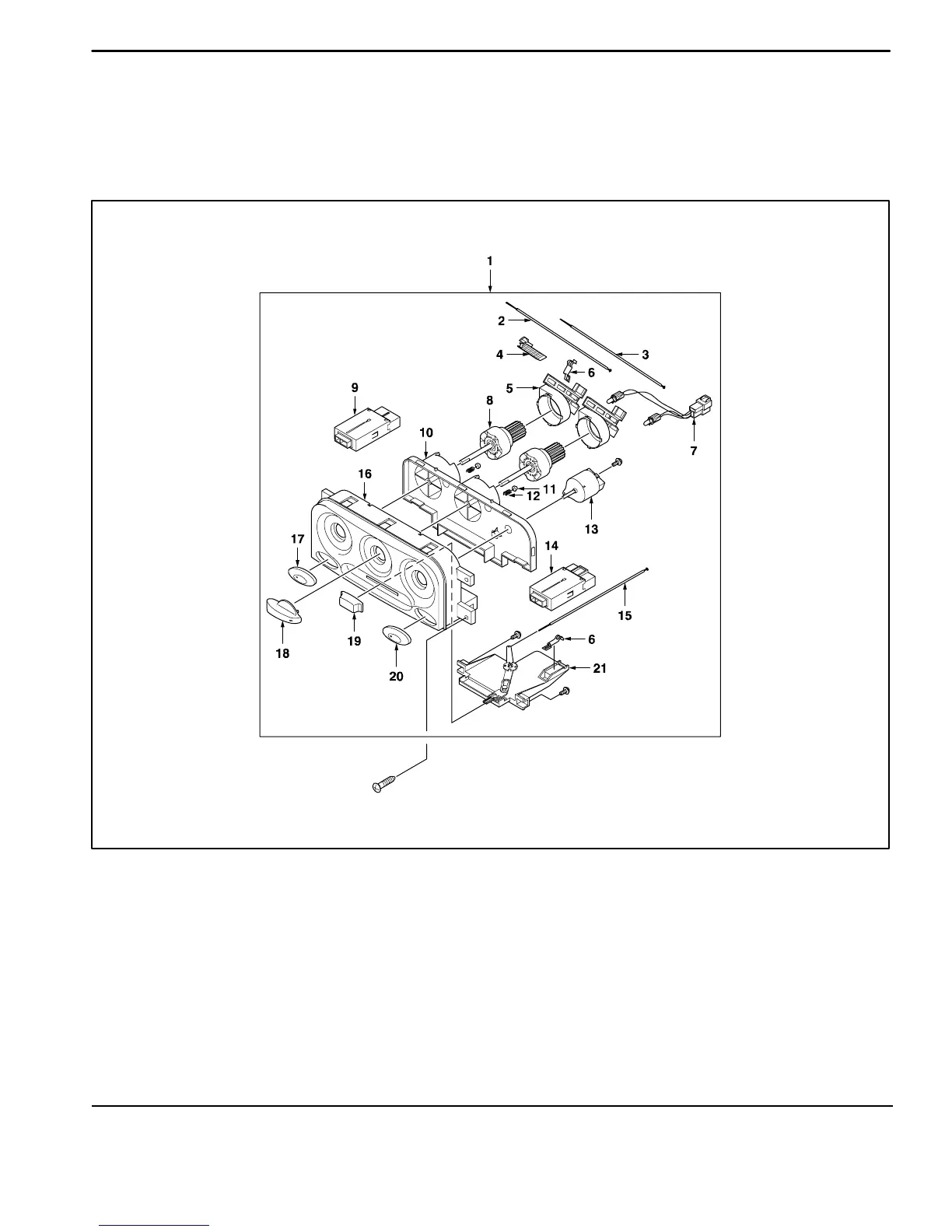

COMPONENT LOCATOR
CONTROL ASSEMBLY
(Left–Hand Drive Shown, Right–Hand Drive Similar)
D108A401
1. HVAC Control Assembly
2. Temperature Control Cable
3. Mode Select Cable
4. Rack
5. Bracket
6. Cable Clamp
7. Bulb Socket Assembly
8. Pinion Assembly
9. A/C Switch
10. Housing
11. Detent Cap
12. Detent Spring
13. Blower Switch
14. Rear Defogger Switch
15. Recirculating/Fresh Air Door Cable
16. Panel
17. A/C Push Knob
18. Rotary Knob
19. Recirculating Knob
20. Rear Defogger Push Knob
21. Recirculation
