Installation Procedure

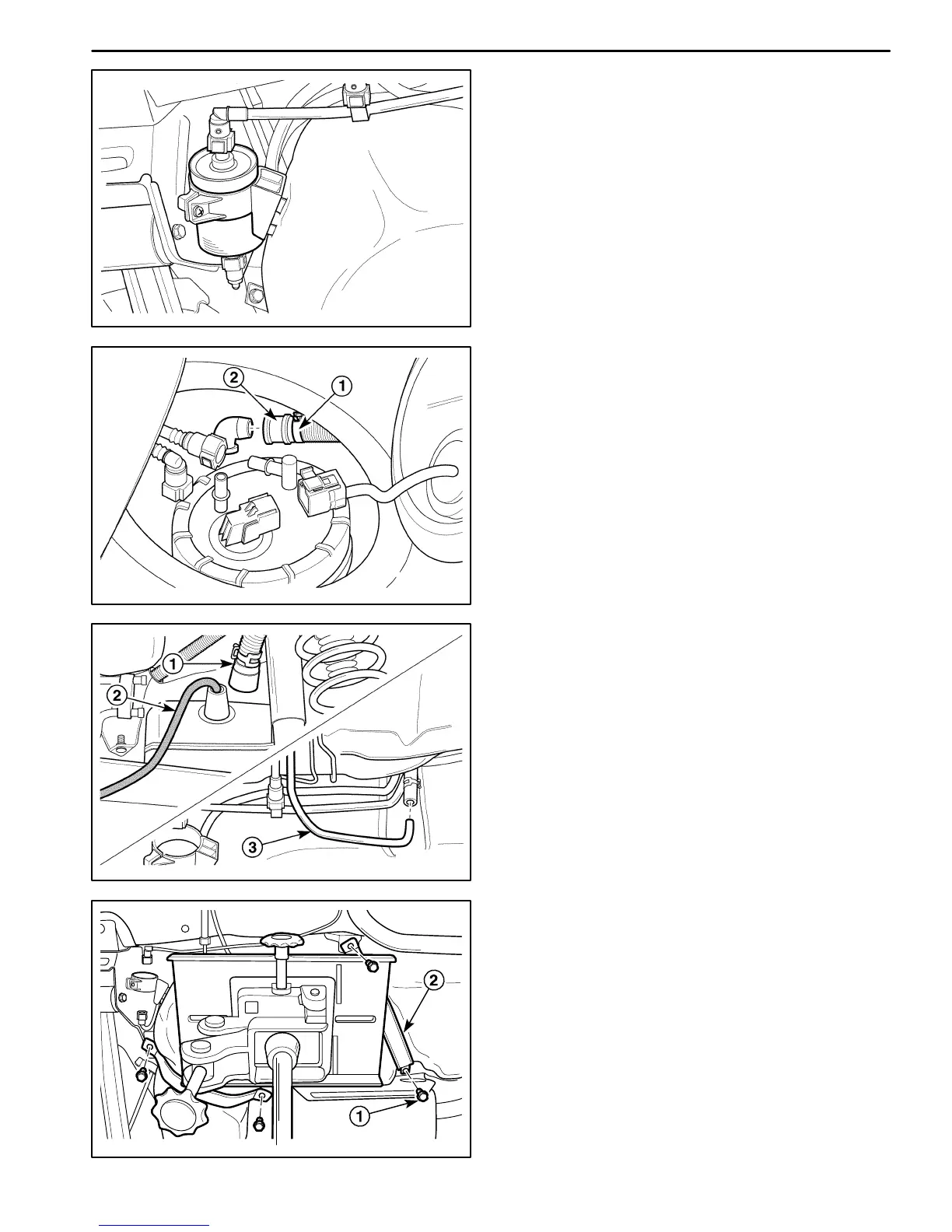

1. Install in the reverse order of removal.
D Install the new fuel filter into the retaining clamp.
Note the flow direction.
D Connect the inlet/outlet lines. Secure the lines with
the connector lock.
D Perform a leak test of the fuel filter.
D102F514
D102F513
FUEL TANK
Removal Procedure
Caution: The fuel system is under pressure. To
avoid fuel spillage and the risk of personal injury or
fire, it is necessary to relieve the fuel system pres-
sure before disconnecting the fuel lines.
1. Relieve the fuel system pressure.
Refer to “Fuel Pump” in this section.
2. Disconnect the fuel tank ventilation tube.
D Disconnect the clamp (1).
D Disconnect the ventilation tube (2).
3. Drain the fuel tank.
D Place a pan below the fuel tank to catch the drain-
ing fuel.
D Disconnect the fuel tank filter tube (1).
D Drain the fuel from the fuel tank using the ventila-
tion tube joint port (2).
D Disconnect the evaporative emission canister line
(3).
D12F515A
4. Remove the fuel filter. Refer to “Fuel Filter” in this
section.
5. Install the jack to remove the fuel tank.
D Install the jack on the center of the fuel tank.
D Remove the strap bolts (1).
D Remove the straps (2).
