Daewoo MATIZ - Unit Repair; Gear Unit

5B–24 FIVE-SPEED MANUAL TRANSAXLE
DAEWOO M-150 BL2
MAINTENANCE AND REPAIR
UNIT REPAIR
D13B701A
GEAR UNIT
Tools Required
09913–76010 Bushing, Seal Installer
DW09940–53111 Gear, Bearing Installer
DW09943–78210 Bushing, Seal Installer
DW220–010A Transaxle Fixture
KM519 Oil Seal Installer
Disassembly Procedure
1. Remove the manual transaxle. Refer to “Manual
Transaxle Assembly” in this section.

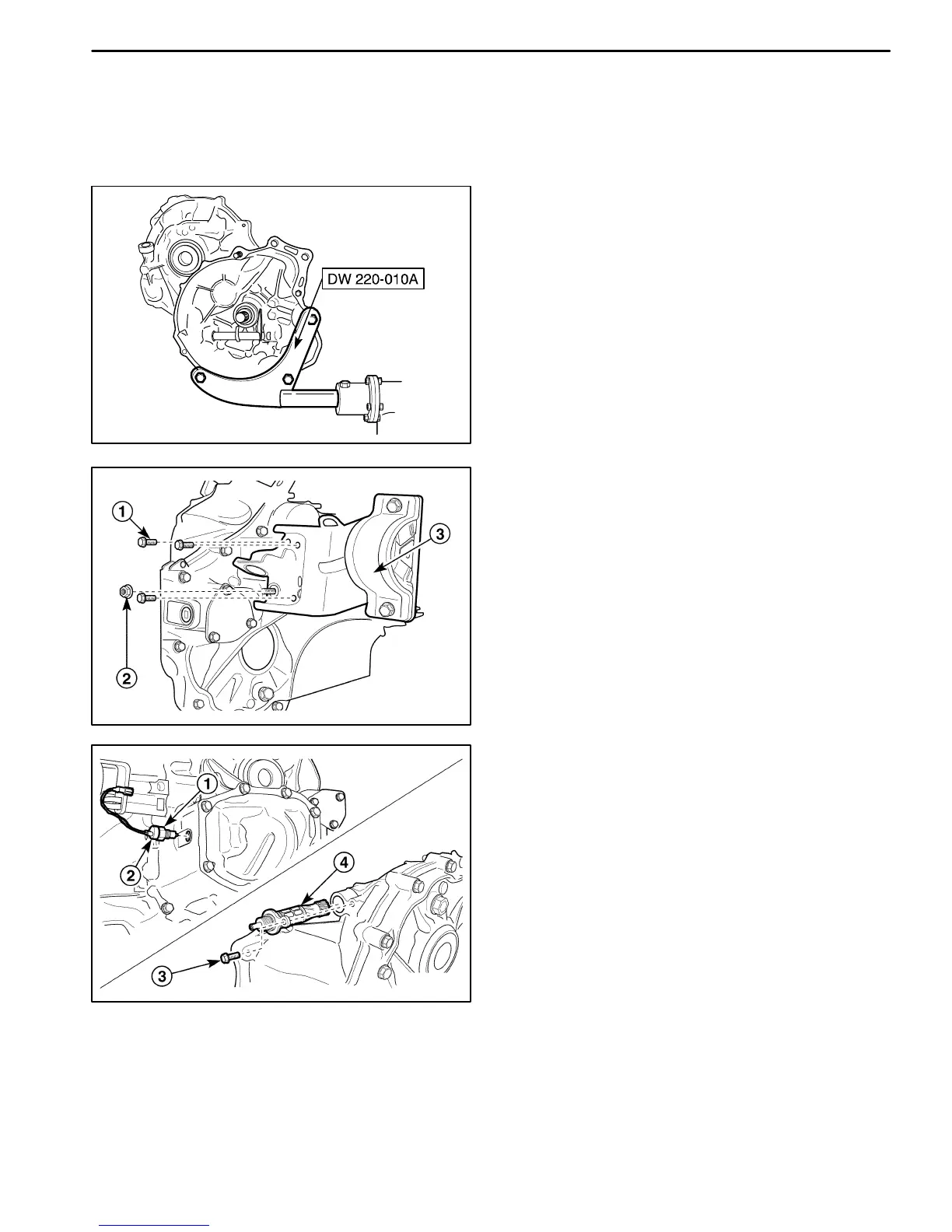

2. Position the manual transaxle to a transaxle stand us-
ing the transaxle fixture DW220–010.
D13B7021
3. Remove the related clutch parts. Refer to Section 5C,
Clutch.
4. Remove the manual transaxle mounting bracket.
D Remove the bolts (1).
D Remove the nut (2).
D Remove the mounting bracket (3).
D103B703
5. Disconnect the backup light switch and speedometer
driven gear assembly.
D Remove the nut (1).
D Disconnect the backup light switch (2).
D Remove the bolt (3).
D Remove the speedometer driven gear assembly
(4).
