2C –10 FRONT SUSPENSION
DAEWOO M-150 BL2
D106B511
FRONT LONGITUDINAL FRAME AND
STABILIZER SHAFT

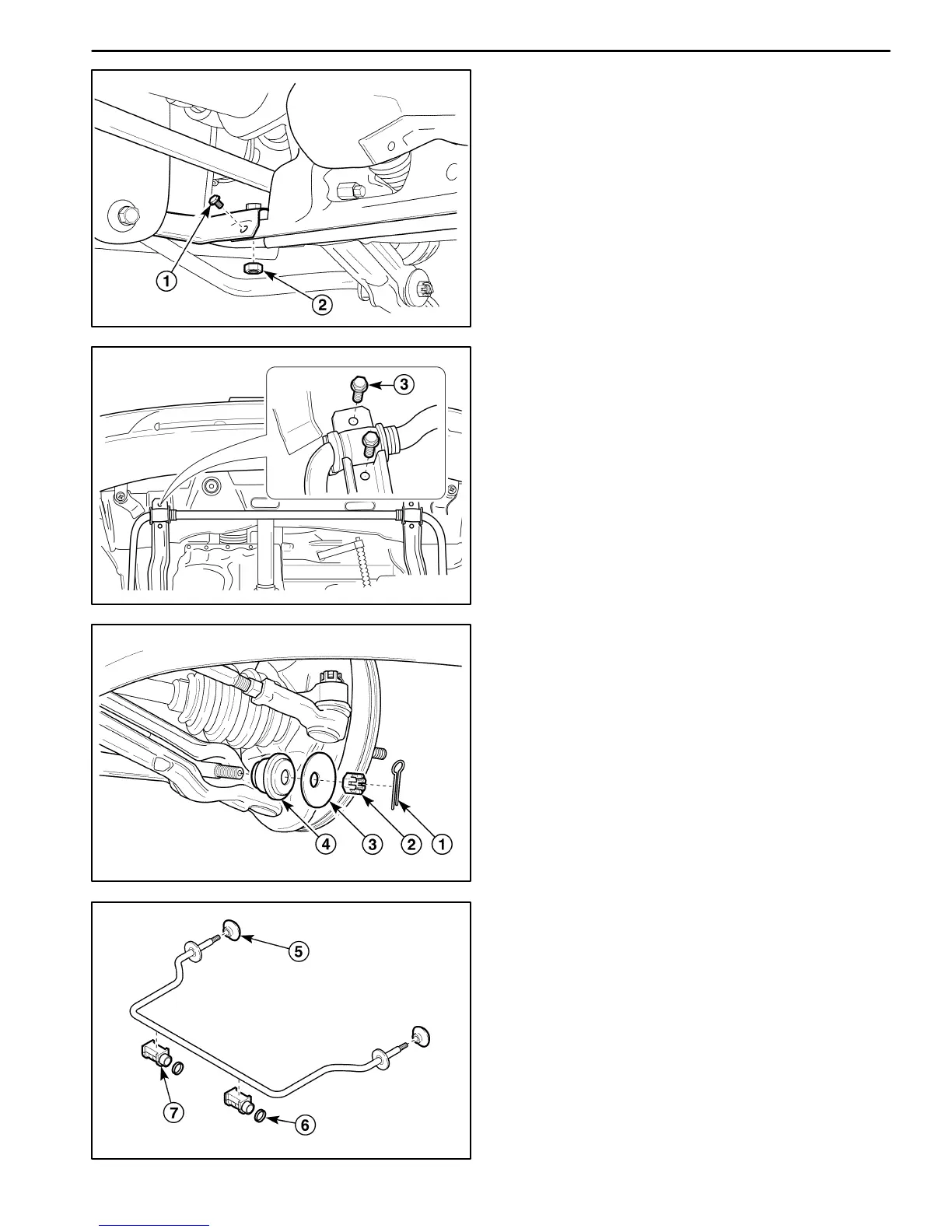

Removal Procedure
1. Removed the front under longitudinal frame.
D Raise and suitably support the vehicle.
D Remove the front wheel. Refer to Section 2E, Tires
and Wheels.
D Remove the transaxle under cover. Refer to Sec-
tion 5B, Manual Transaxle.
D Remove the front under longitudinal frame bolt (1).
D Remove the front under longitudinal frame nut (2).
D16B512A
D Remove the stabilizer shaft mounting bolts (3).
D Remove the front under longitudinal frame.
D106B513
2. Remove the stabilizer shaft from the vehicle.
D Remove the cotter pin (1).
D Remove the castellated nut (2).
D Remove the washer (3).
D Remove the rear bushing with separating the sta-
bilizer shaft from the control arm (4).
D16B514A
D Remove the bushing (5).
D Remove the wire clamps (6).
D Remove the mountings (7).
