Daewoo MATIZ - Page 452

FRONT SUSPENSION 2C–9
DAEWOO M-150 BL2
D106B507

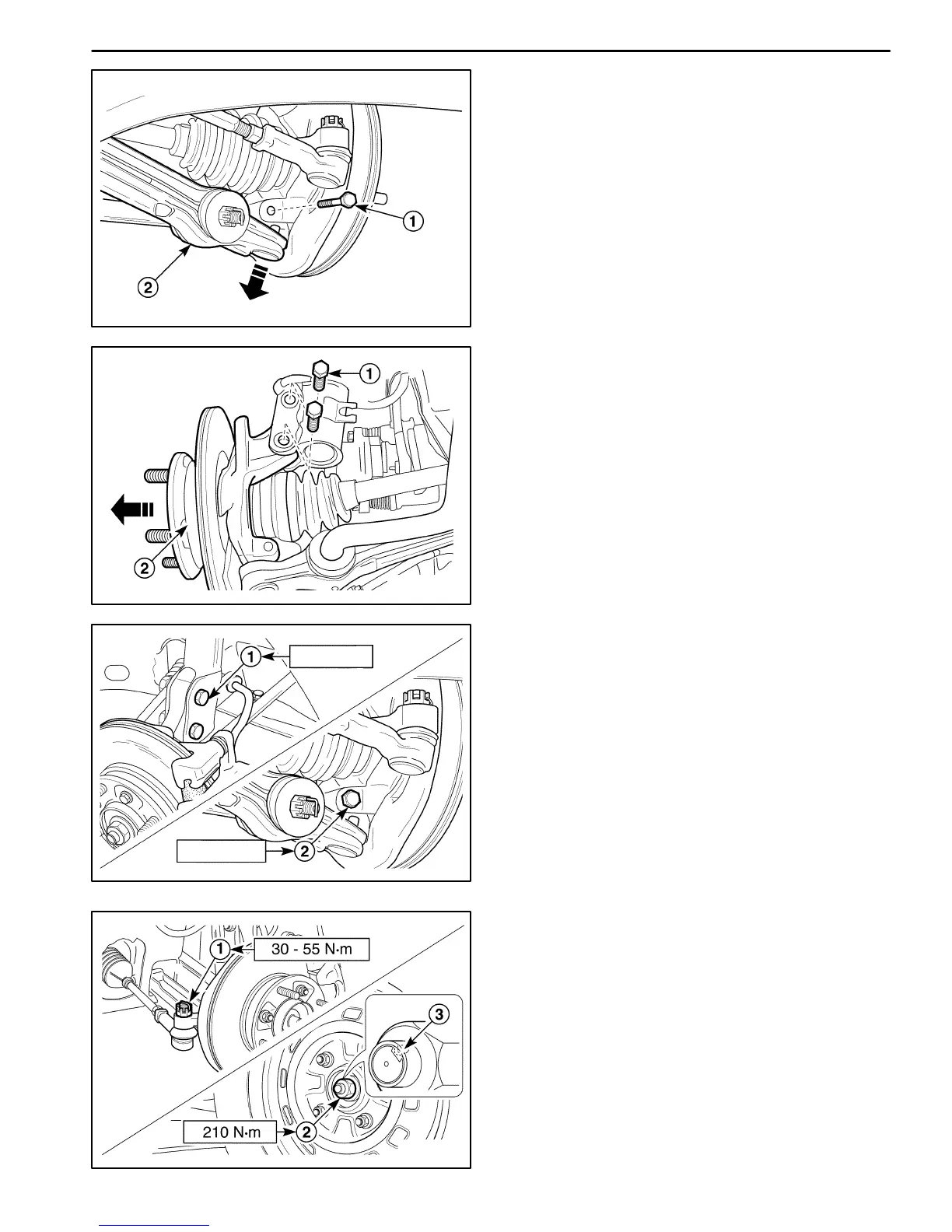

4. Remove the control arm from the knuckle assembly.
D Remove the stud bolt (1).
D Separate the control arm from the knuckle assem-
bly (2).
D106B508
5. Remove the brake caliper from the knuckle assembly.
Refer to Section 4D, Front Disc Brakes.
6. Remove the ABS wheel speed sensor from the
knuckle assembly, if applicable. Refer to Section 4F,
Anti–lock Brake System.
7. Remove the steering knuckle assembly from the ve-
hicle.
D Remove the strut bracket bolts (1).
D Separate the knuckle assembly from the drive
shaft by pulling the steering knuckle assembly (2).
D16B509A
70–90 NSm
50–70 NSm
Installation Procedure
1. Install in the reverse order of removal.
2. Install the steering knuckle assembly in the vehicle
with strut bracket bolts (1).
Tighten
Tighten the strut bracket bolts to 70–90 NSm (52–66
lb-ft).
3. Install the brake caliper from the knuckle assembly.
4. Install the control arm into the knuckle assembly with
the stud bolt (2).
Tighten
Tighten the stud bolt to 50–70 NSm (36–52 lb-ft).
D16B510B
5. Install the tie rod end to the knuckle assembly.
6. Install the tie rod end–to–knuckle castellated nut (1)
and the cotter pin.
Tighten
Tighten the castellated nut to 30–55 NSm (22–41 lb-
ft).
7. Install the caulking nut (2).
D Bend the caulking nut flange (3).
Tighten
Tighten the caulking nut to 210 NSm (155 lb-ft).
