Daewoo MATIZ - Clutch Release Arm

5C –10 CLUTCH
DAEWOO M-150 BL2
D103C515

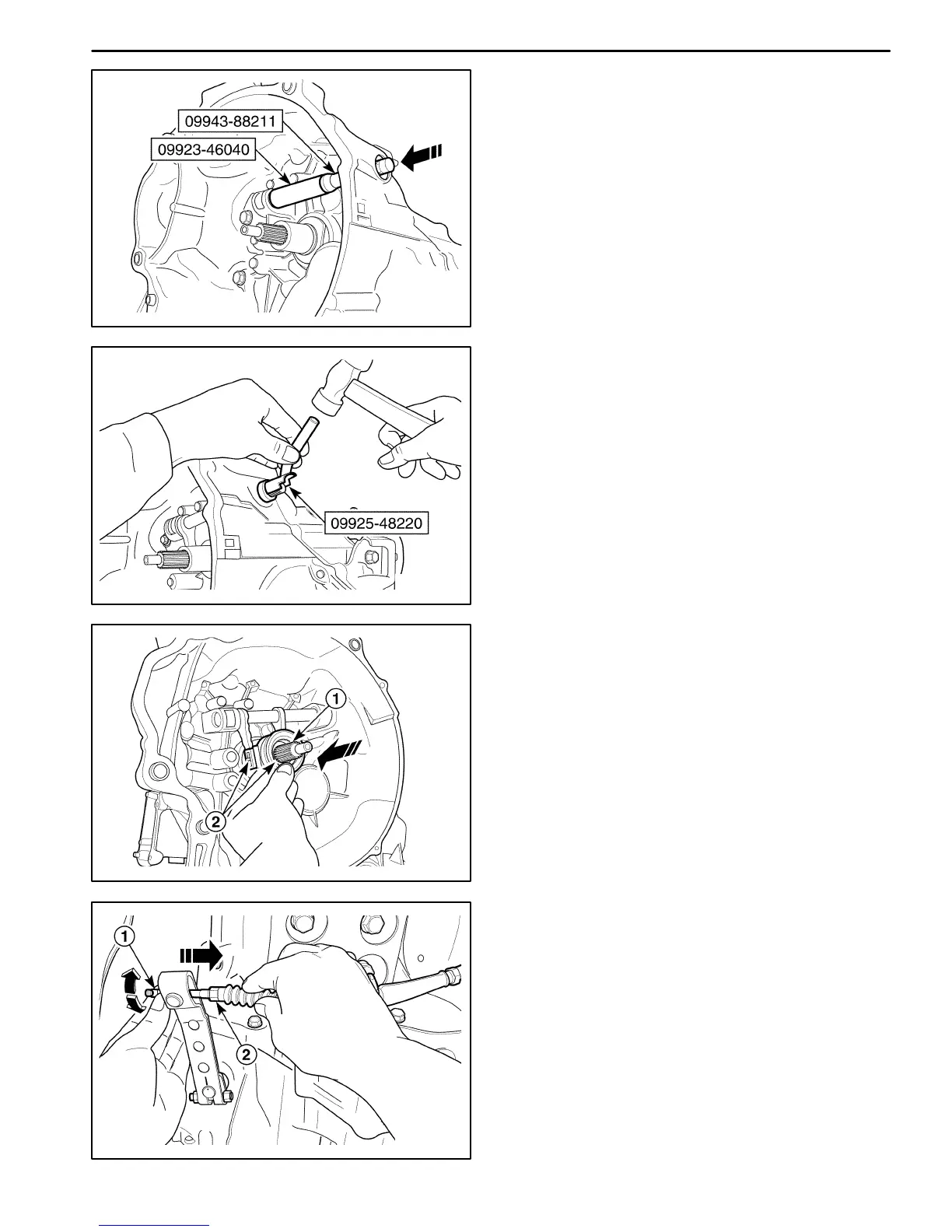

Installation Procedure
1. Install in the reverse order of removal.
2. Install the release shaft bushing (No.1) using the
bushing joint pipe 09923–46040, bushing, bearing in-
staller 09943–88211 and a hammer.
D103C516
3. Install the release shaft bushing (No.2) and seal using
the bushing remover/installer 09925–48220 and a
hammer.
D103C517
4. Install the release bearing.
D Coat the spline of transaxle input shaft with multi–
purpose grease (1).
D Coat the release bearing bore and the connecting
of release shaft with multi–purpose grease (2).
D Install the release bearing.
D103C518
CLUTCH RELEASE ARM
Removal Procedure
1. Disconnect the clutch cable.
D Remove the adjusting nut (1).
D Disconnect the cable (2).
