Daewoo MATIZ - Unit Repair; Hub Bearing and Knuckle

2C –16 FRONT SUSPENSION
DAEWOO M-150 BL2
UNIT REPAIR
D106B701
HUB BEARING AND KNUCKLE
Tools Required
DW 220–020A–01 Differential Bearing Puller.
DW 220–020A–04 Differential Bearing Plate Adapter.
DW 340–010 Front Wheel Hub Remover.
DW 340–020 Front Wheel Bearing Race Installer.
DW 340–030 Front Wheel Bearing Installer.
09940–71430 Front Spring Compressor.
Disassembly Procedure
1. Remove the steering knuckle assembly. Refer to
“Knuckle Assembly” in this section.

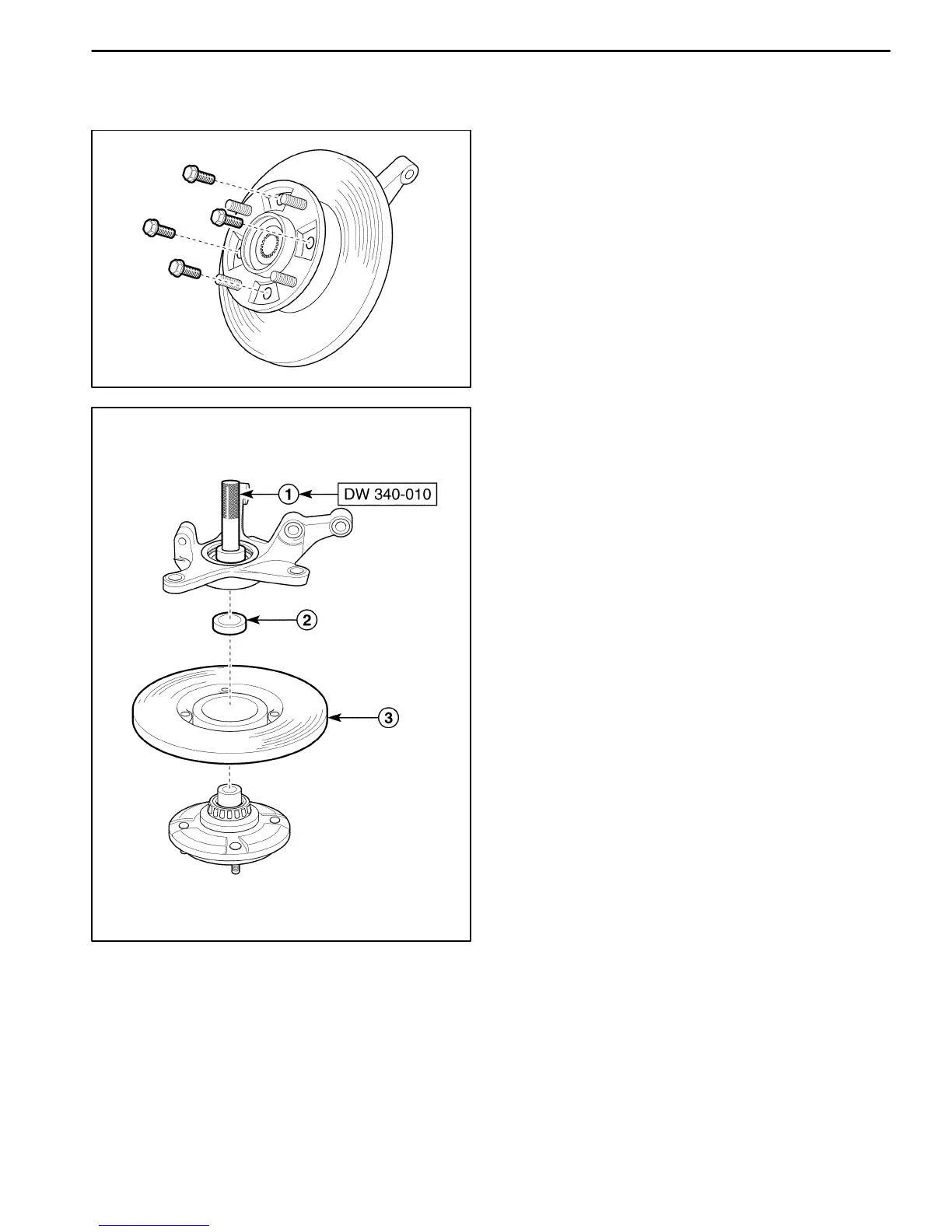

2. Remove the bolts from the wheel hub.
D106B702
3. Remove the wheel hub from the knuckle assembly
using the front wheel hub remover DW 340–010.
D Remove the wheel hub using the front wheel hub
remover DW 340–010 (1).
D Remove the bearing spacer (2).
D Remove the brake rotor (3).
