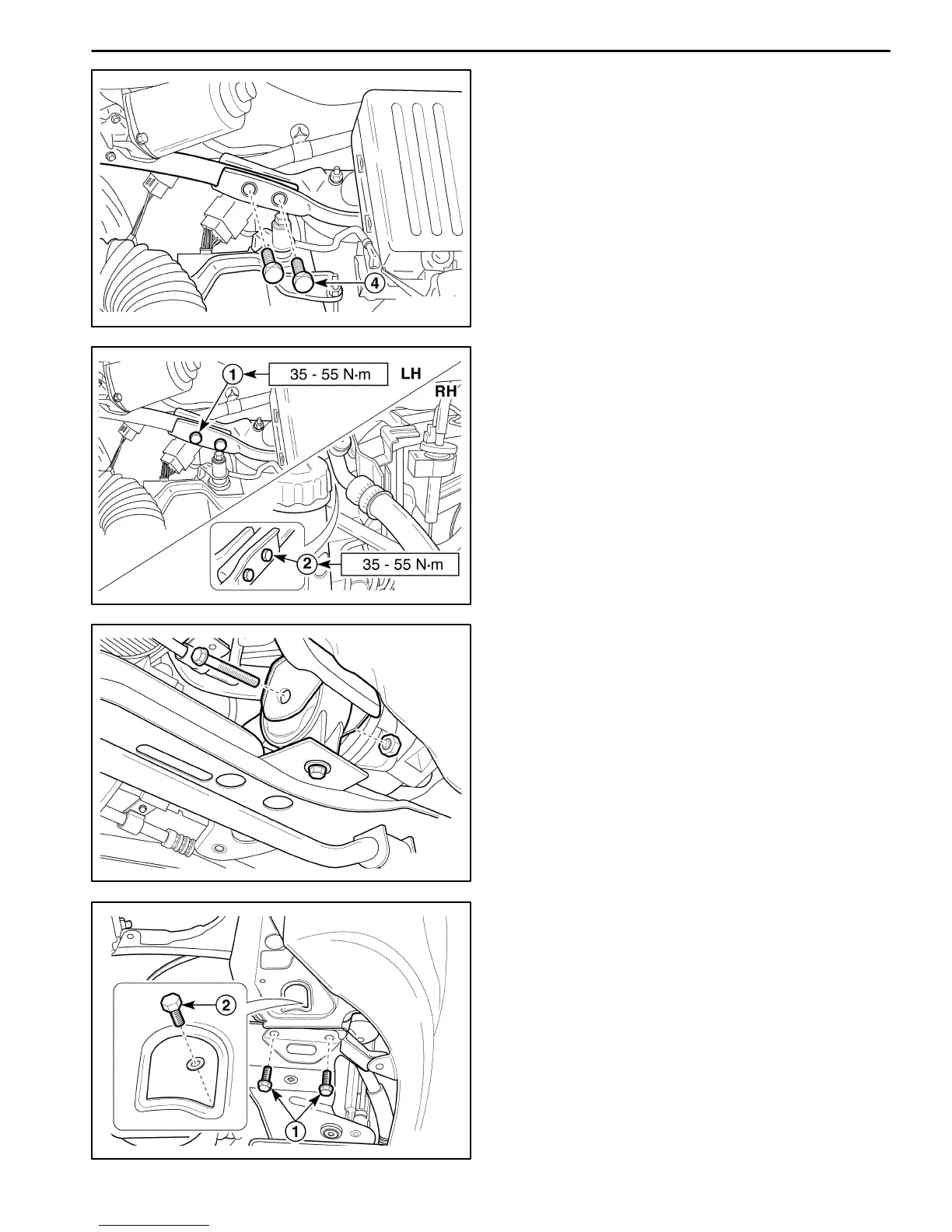

D Remove the strut bar bolts at driver side (4).
Important: When removing the bolts using the tool,
do not contact the battery terminal.
D Remove the strut bar at passenger side
D16B524B
Installation Procedure
1. Install the strut bar to the vehicle.
D Install the strut bar at passenger side.
D Install the strut bar bolts at driver side (1).
Important: When installing the bolts using the tool, do
not contact the battery terminal.
D Install the strut bar bolts at passenger side (2).
D Install the A/C low pressure pipe bracket–to–strut
bar nut.
Tighten
Tighten the strut bar bolts to 35–55 NSm (25–41 lb-ft).
D Install the purge control valve to the strut bar.
D106B525
CROSSMEMBER
Removal Procedure
1. Remove the transaxle under cover. Refer to Section
5B, Five–Speed Manual Transaxle.
2. Remove the front under longitudinal frame. Refer to
“Stabilizer Shaft” in this section.
3. Remove the damping bush bolt and nut.
D106B526
4. Disconnect the power steering pressure line from the
crossmember. Refer to Section 6B, Power Steering
Pump.
5. Remove the crossmember from the vehicle.
D Place support jack under the crossmember.
D Remove the bumper fascia screws.
D Remove the rear bolts (1).
D Remove the side bolts (2).
D Lower the support jack and remove the crossmem-
ber from the vehicle.
