REAR DRUM BRAKES 4E–7
DAEWOO M-150 BL2
D17C504A

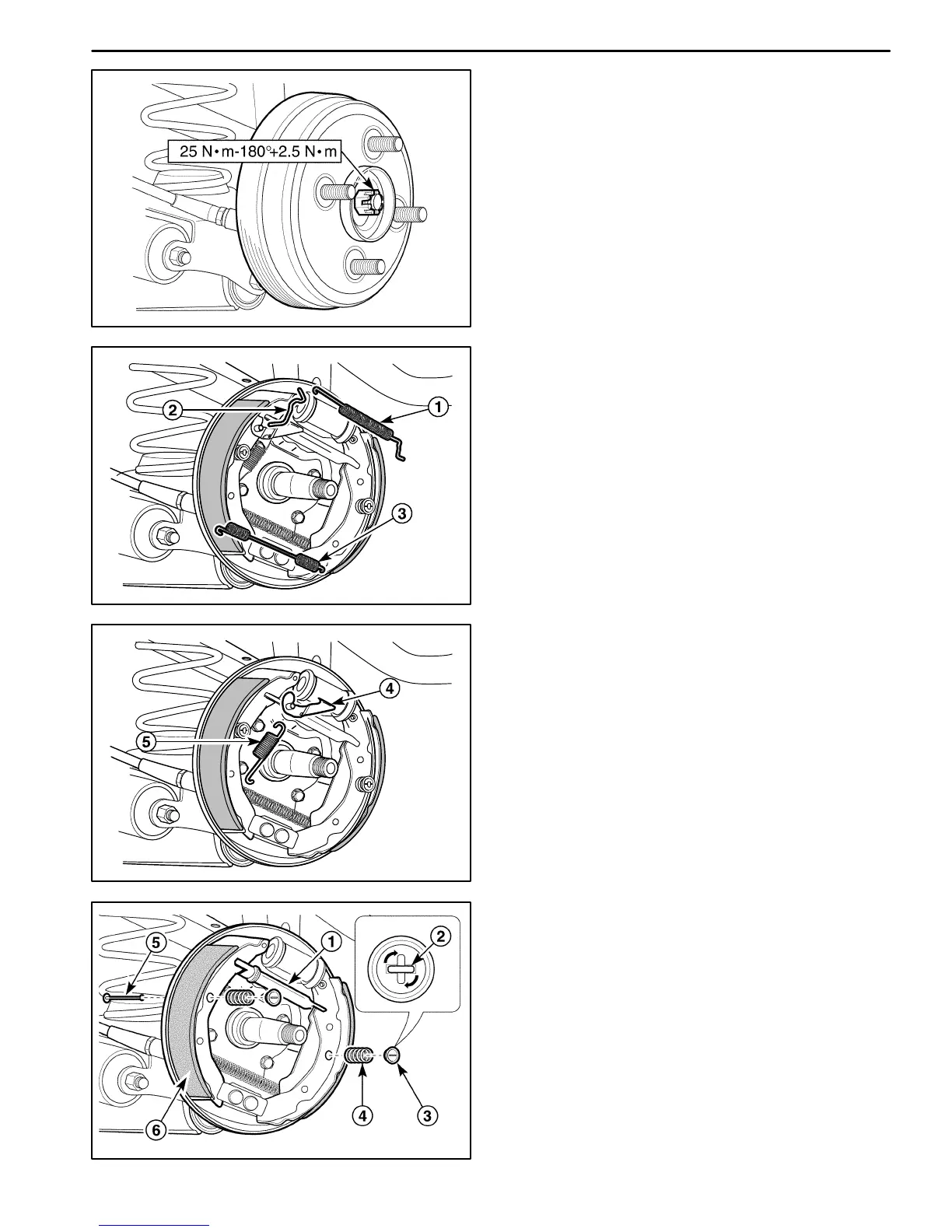

D Tighten the castellated nut to 25 NSm (18 lb-ft).
D Loosen the castellated nut to 180_.
D Retighten the castellated nut to 2.5 NSm (22 lb-in).
D Install the new cotter pin and spindle cap.
2. Adjust the parking brake.
3. Install the rear wheels. Refer to Section 6E, Tires and
Wheels.
D107C505
BRAKE SHOE
Removal Procedure
1. Remove the brake drum. Refer to “Brake Drum” in
this section.
2. Remove the return spring.
D Remove the upper return spring (1).
D Remove the upper return spring bracket (2).
D Remove the lower return spring (3).
D107C506
D Remove the adjust lever (4).
D Remove the middle return spring (5).
D107C507
3. Remove the brake shoe.
D Remove the readjusting unit (1).
D Turn the brake shoe retaining spring pin rectangu-
larly by the pliers (2).
D Remove the brake shoe retain spring cap (3).
D Remove the retaining spring (4).
D Remove the retaining spring pin (5).
D Remove the leading shoe (6).
