4E –6 REAR DRUM BRAKES
DAEWOO M-150 BL2
REPAIR INSTRUCTIONS
ON–VEHICLE SERVICE
D107C501
D17C502A
REAR BRAKE DRUM
Removal Procedure
1. Remove the rear wheels. Refer to Section 6E, Tires
and Wheels.
2. Release the parking brake.
3. Remove the brake drum.
D Remove the spindle cap (1).
D Remove the cotter pin and do not reuse it (2).
D Remove the castellated nut (3).
D Remove the rear axle washer (4).
D Remove the bearing, race and oil seal. Refer to
Section 2D, Rear Suspension.

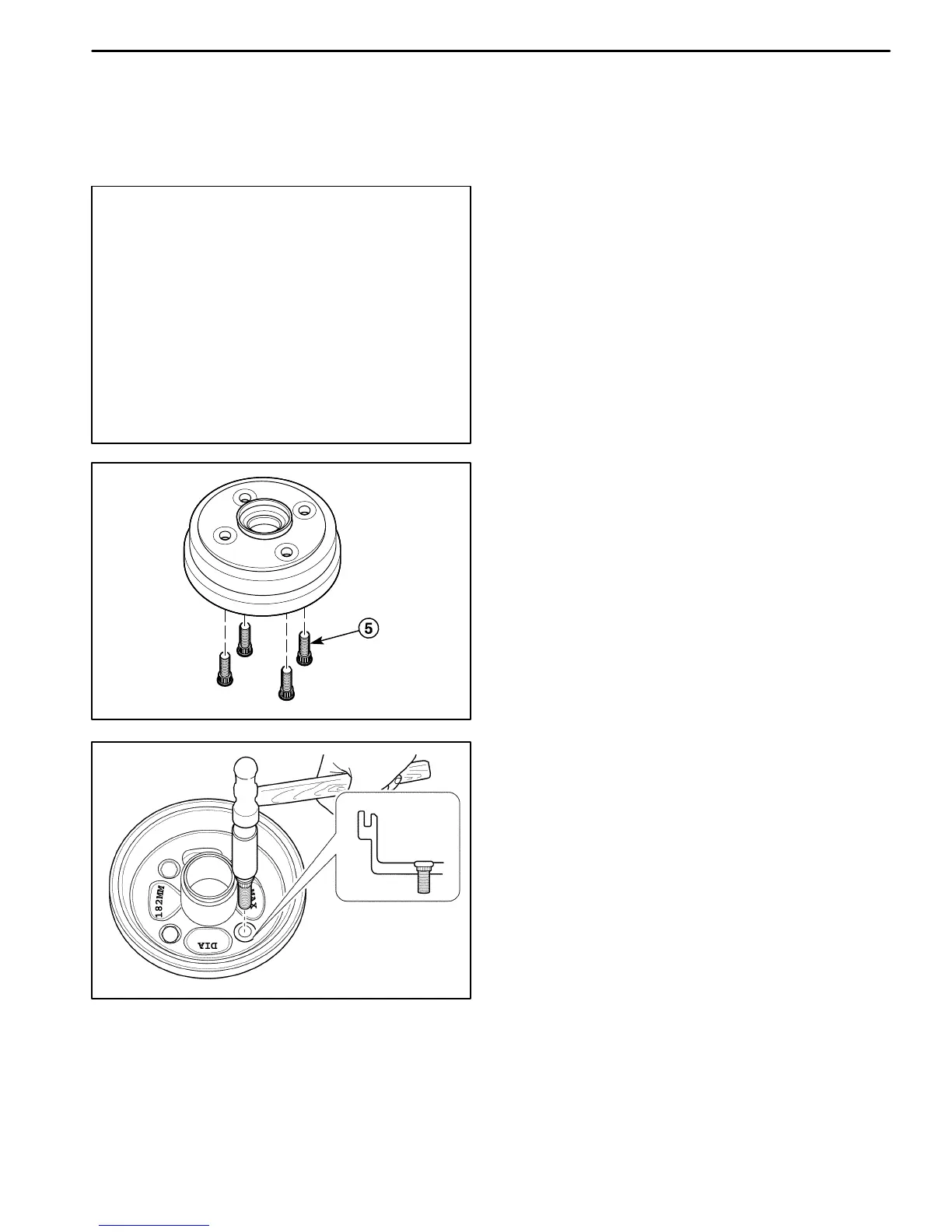

D Remove the hub bolts using a hammer (5).
Important: Do not reuse removed hub bolts.
D107C503
Installation Procedure
1. Install the brake drum.
D Insert the new hub bolts using a hammer.
D Install the bearing, race, oil seal and rear axle
washer.
