REAR DRUM BRAKES 4E–5
DAEWOO M-150 BL2

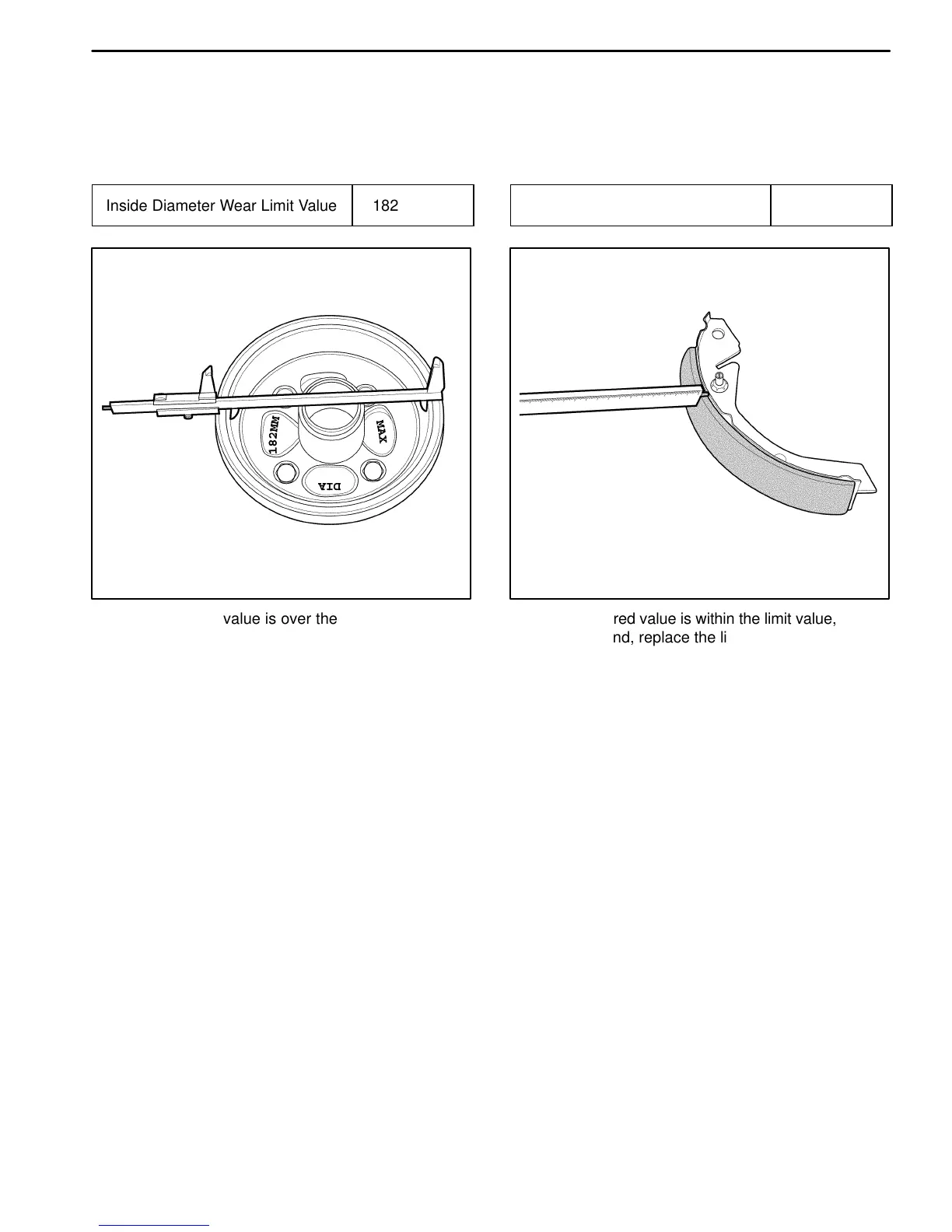

DRUMS
Inspect the brake drum as follows ;
1. Inspect the drum for crack or damage.
2. Measure the inside diameter.
Unit : mm (in.)
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Inside Diameter Wear Limit Value
ÁÁÁÁÁÁ
Á
ÁÁÁÁ
Á
ÁÁÁÁÁÁ
182 (7.165)
D107C301
3. If the measured value is over the limit value, or if the
defect is found, replace the drum.
LINING
Inspect the brake drum as follows ;
1. Inspect the lining for wear or stain with oil.
2. Measure the thickness.
Unit : mm (in.)
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Lining Wear Limit Value
ÁÁÁÁÁÁ
Á
ÁÁÁÁ
Á
ÁÁÁÁÁÁ
1 (0.039)
D107C302
3. If the measured value is within the limit value, or if the
defect is found, replace the lining.
