9H –12 SEATS
DAEWOO M-150 BL2
D109B720

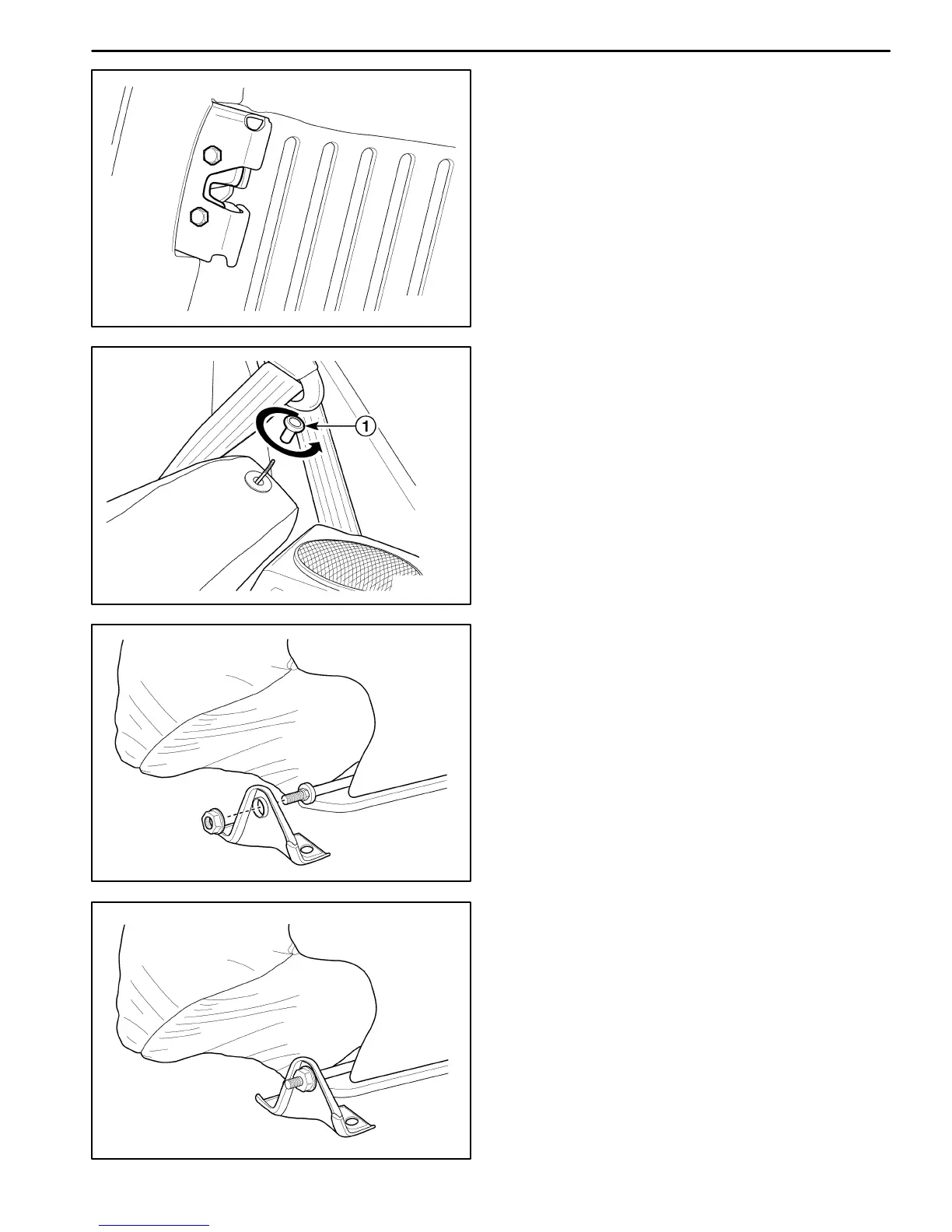

Installation Procedure
1. Install the lock to the seatback frame with the bolts.
2. Install the rear seatback cover to the seatback frame.
D109B718
3. Install the lock knob to the seatback.
4. Install the rear seatback assembly. Refer to “Rear
Seatback” in this section.
D109B721
REAR SEATBACK HINGE
Removal Procedure
1. Remove the rear seatback assembly. Refer to “Rear
Seatback” in this section.
2. Remove the hinge from the seatback.
D Remove the nut.
D Remove the hinge.
D109B722
Installation Procedure
1. Install the hinge to the seatback with the nut.
2. Install the rear seatback assembly. Refer to “Rear
Seatback” in this section.
