REAR SUSPENSION 2D–9
DAEWOO M-150 BL2
D16C515A

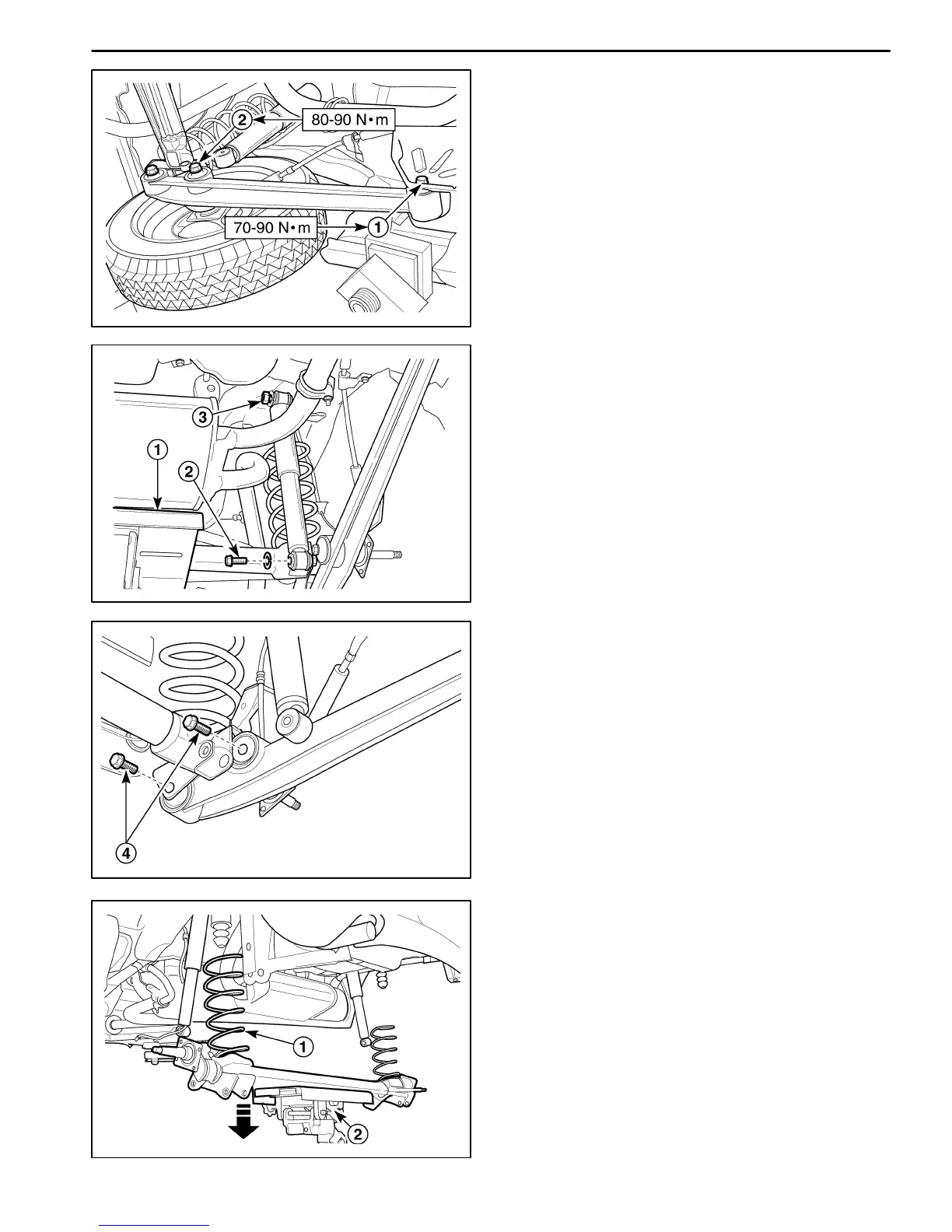

Installation Procedure
1. Install the trailing arm.
D Install the trailing arm–to–body bracket bolt (1).
Tighten
Tighten the trailing arm–to–body bracket bolt to 70–
90 NSm (55–66 lb-ft).
D Install the trailing arm–to–rear axle bolts (2).
Tighten
Tighten the trailing arm–to–rear axle bolts to 80–90
NSm (59–66 lb-ft).
2. Install the rear shock absorber. Refer to “Shock Ab-
sorber” in this section.
D106C516
D106C517
REAR AXLE ASSEMBLY
(INCLUDING COIL SPRING)
Removal Procedure
1. Remove the rear brake drum, shoe and brake plate.
Refer to Section 4E, Rear Drum Brakes.
2. Remove the lateral rod. Refer to “Lateral Rod” in this
section.
3. Disconnect the rear axle and the trailing arm.
D Support the rear axle with adjustable jack stands
(1).
D Remove the shock absorber–to–rear axle bolt (2).
D Loosen the shock absorber–to–body bracket nut
(3).
D Remove the trailing arm–to–rear axle bolt (4).
Caution: When disconnecting the rear axle and the
trailing arm, coil spring tension may cause the ad-
justable jack stand to slip from the rear axle. This
may result in personal injury. Carry out the opera-
tion with co–worker.
D106C518
4. Remove the rear axle from the vehicle.
D Remove the coil spring by lowering the jack stand
slowly (1).
D Lower the support jack and remove the rear axle
(2).
