5B–46 FIVE-SPEED MANUAL TRANSAXLE
DAEWOO M-150 BL2
D103B780

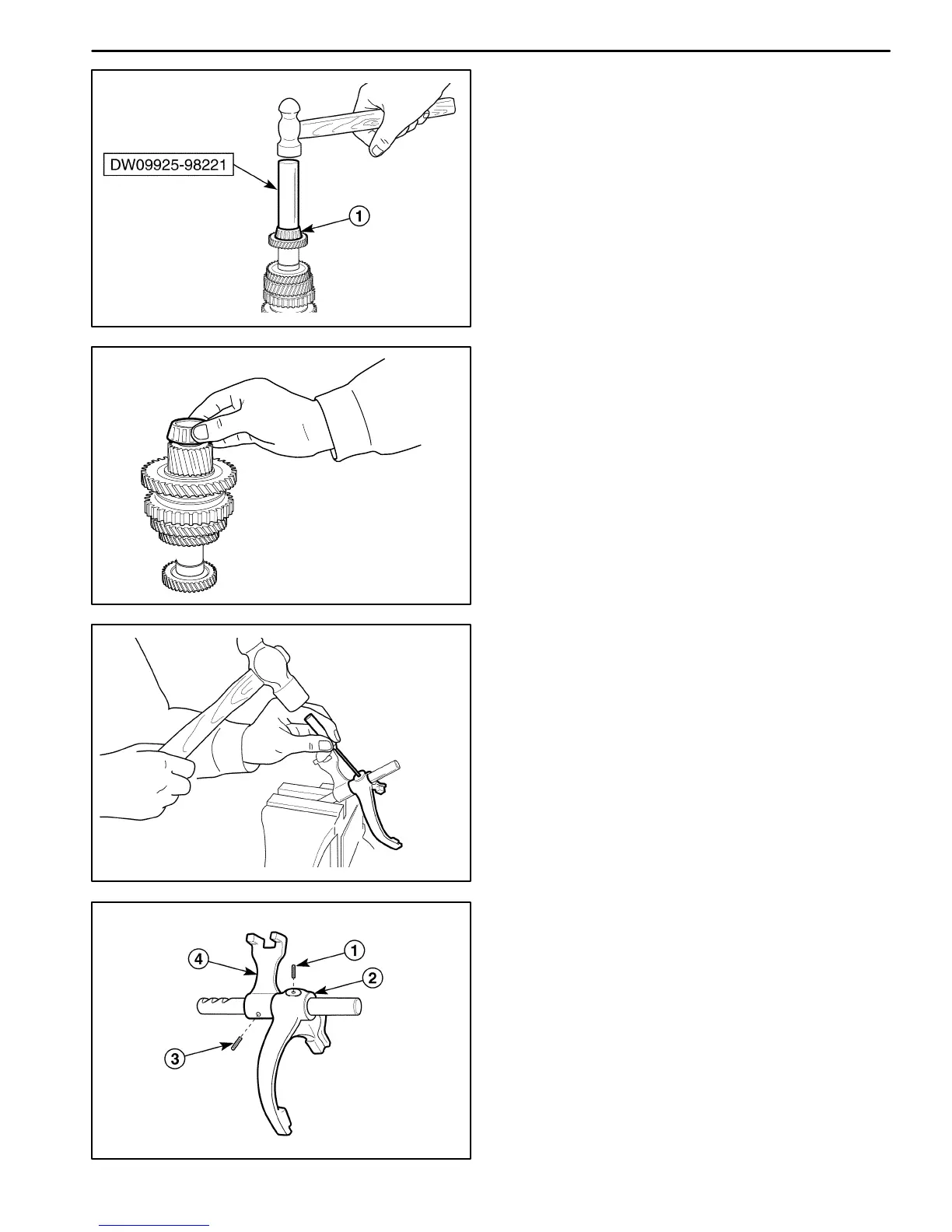

9. Install the counter shaft left side bearing.
D Install the left side bearing to the counter shaft us-
ing the gear, bearing installer DW09925–98221
and a hammer (1).
D103B765
10. Install the counter shaft right side bearing.
11. Install the gear unit. Refer to “Gear Unit” in this sec-
tion.
D103B781
GEAR SHIFT FORK
Disassembly Procedure
1. Remove the gear unit. Refer to “Gear Unit” in this
section.
2. Remove the each shift shaft assembly from the gear
unit.
3. Remove the first–second gear shift shaft assembly.
D Fix the shift shaft assembly to a vise with protector.
D Remove the first–second gear fork pin using a pin
punch and a hammer (1).
D Remove the first–second gear shift fork (2).
D103B783
D Remove the first–second gear shift yoke pin using
a pin punch and a hammer (3).
D Remove the first–second gear shift yoke (4).
Important: Mark the place and direction of shift fork and
yoke to install easily before removing them.
To Next Page
