7A–26 HEATING AND VENTILATION SYSTEM
DAEWOO M-150 BL2
D18A531B
Installation Procedure

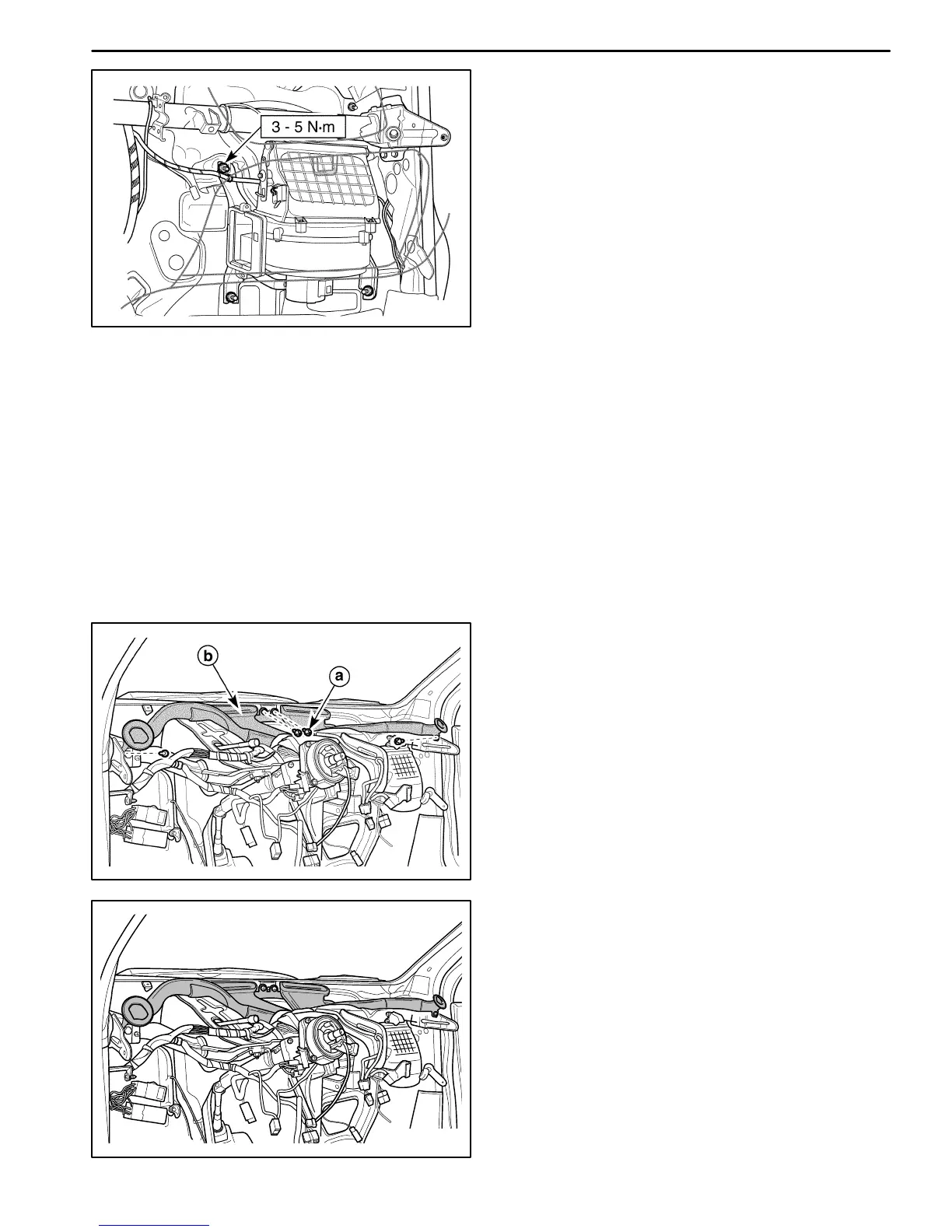

1. Install the blower module with the nuts.
Tighten
Tighten the blower module retaining nuts to 3–5 NSm
(27–44 lb-in).
2. Connect the wiring harness.
3. Connect the blower motor connector. Refer to “Blow-
er Motor and Cooling Hose” in this section.
4. Install the blower resistor. Refer to “Blower Resistor”
in this section.
5. Install the evaporator on the vehicle equipped with
A/C. Refer to Section 7B, Manual Control Heating,
Ventilation, and Air Conditioning System.
6. Install the heater module–to–blower module connec-
tion tube on the vehicle not equipped with A/C. Refer
to “Heater Module” in this section.
7. Install the glove box to the instrument panel. Refer to
Section 9E, Instrumentation/Driver Information.
D108A532
DEFROSTER DUCT AND HOSES
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Remove the instrument panel. Refer to Section 9E,
Instrumentation/Driver Information.
2. Remove the defroster duct and hoses retaining
screws.
a. Retaining screw.
3. Remove the defroster duct and hoses.
b. Defroster duct and hoses.
D108A533
Installation Procedure
1. Install the defroster duct and hoses with the screws.
2. Install the instrument panel. Refer to Section 9E, In-
strumentation/Driver Information.
