9R –6 BODY FRONT END
DAEWOO M-150 BL2
D19C527A

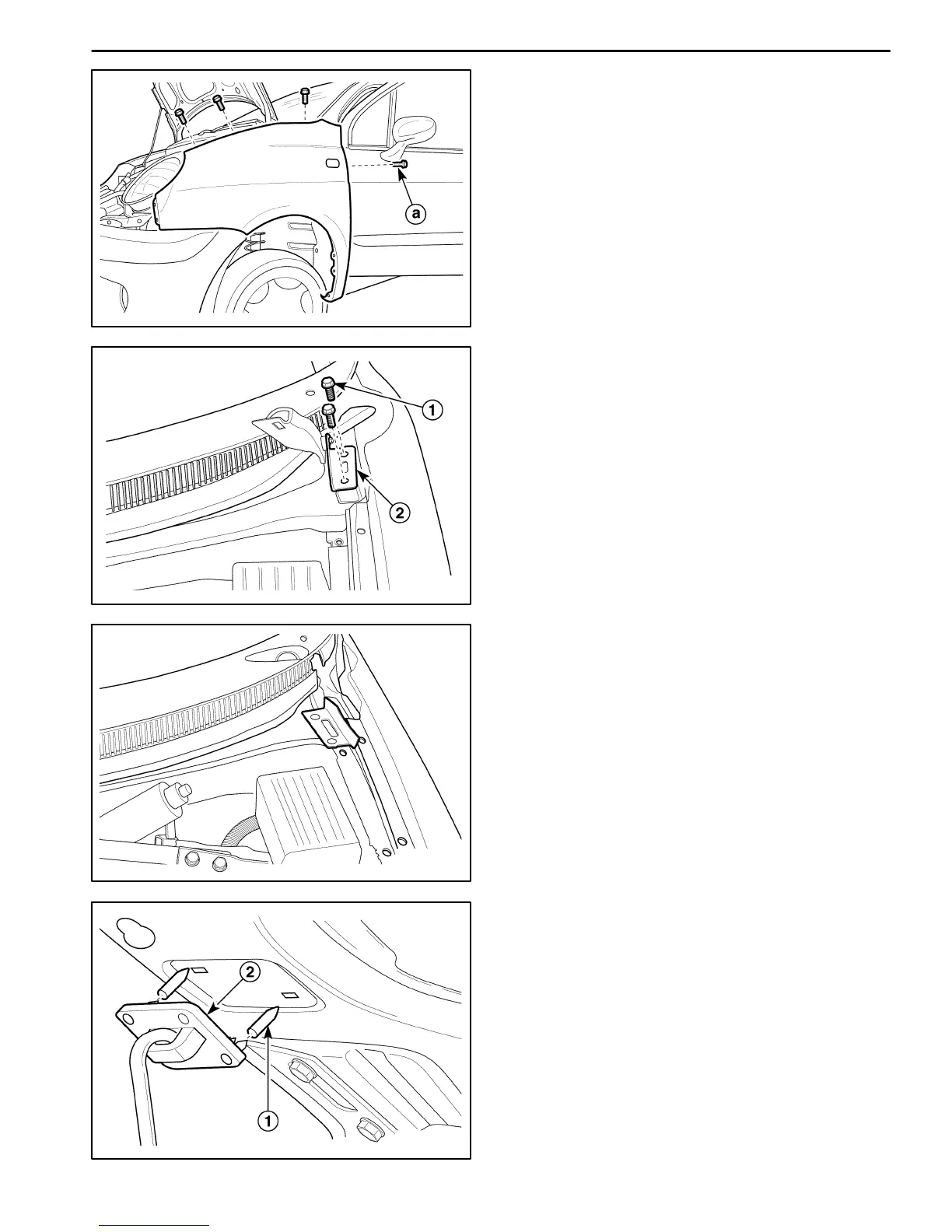

3. Remove the bolts on the top of the fender.
a. Fender upper mounting bolt.
D109C528
4. Remove the hood hinge.
D Remove the bolts (1).
D Remove the hood hinge (2).
D109C529
Installation Procedure
Notice: Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use the correct
fasteners to prevent premature corrosion.
1. Install the hood hinge with the bolts.
2. Install the bolts along the top of the fender.
3. Install the cowl vent grille with the screws and the
caps.
4. Install the hood. Refer to “Hood” in this section.
D109C530
HOOD PROP ROD
Removal Procedure
1. Support the hood in the open position.
2. Remove the hood prop from the hood.
D Using a sharp gimlet, press the pins (1).
D Remove the hood prop (2).
To Next Page
