BODY FRONT END 9R–9
DAEWOO M-150 BL2
D109C538

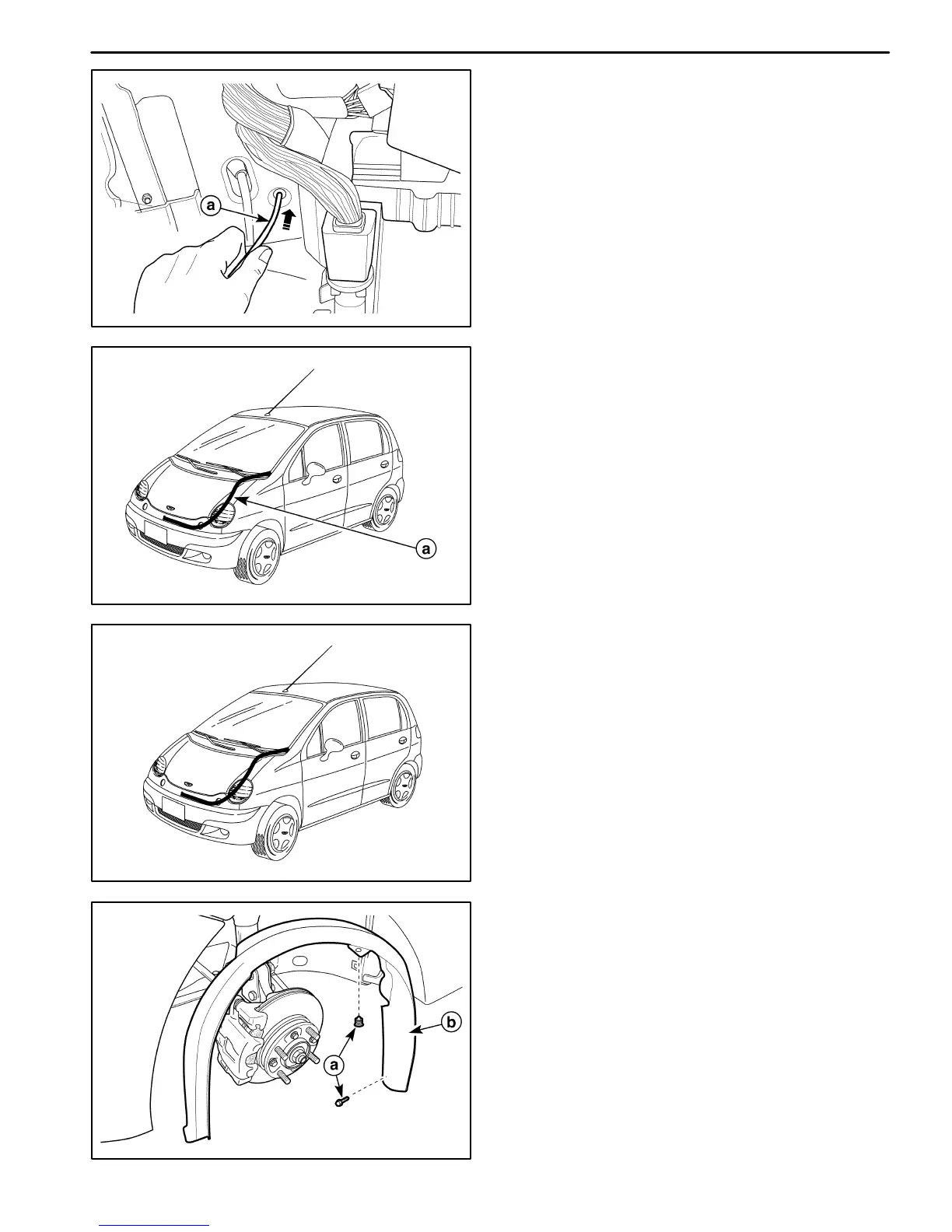

HOOD LATCH RELEASE CABLE
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Remove the hood latch release cable from the instru-
ment panel. Refer to “Hood Latch Release Lever” in
this section.
2. Push the cable toward the engine compartment
through the body hole.
a. Hood latch lever cable.
D19C539B
3. Open and suitably support the hood.
4. Disconnect the hood latch release cable from the
hood latch. Refer to “Hood Latch” in this section.
5. Remove the hood latch release cable after removing
the plastic strip.
a. Hood latch release cable.
D19C539C
Installation Procedure
1. Connect the hood latch release cable to the hood
latch. Refer to “Hood Latch” in this section.
2. Arrange the hood latch release cable with the plastic
strip.
3. Push the cable toward the passenger compartment
through the body hole.
4. Connect the hood latch release cable to the hood
latch release lever. Refer to “Hood Latch Release Le-
ver” in this section.
D19C501A
FENDER
Removal Procedure
1. Raise and suitably support the vehicle.
2. Remove the wheelhouse splash shield.
D Remove the clip and the bolt.
a. Clip and bolt.
D Remove the wheel house splash shield.
a. Wheel house splash shield.
To Next Page
