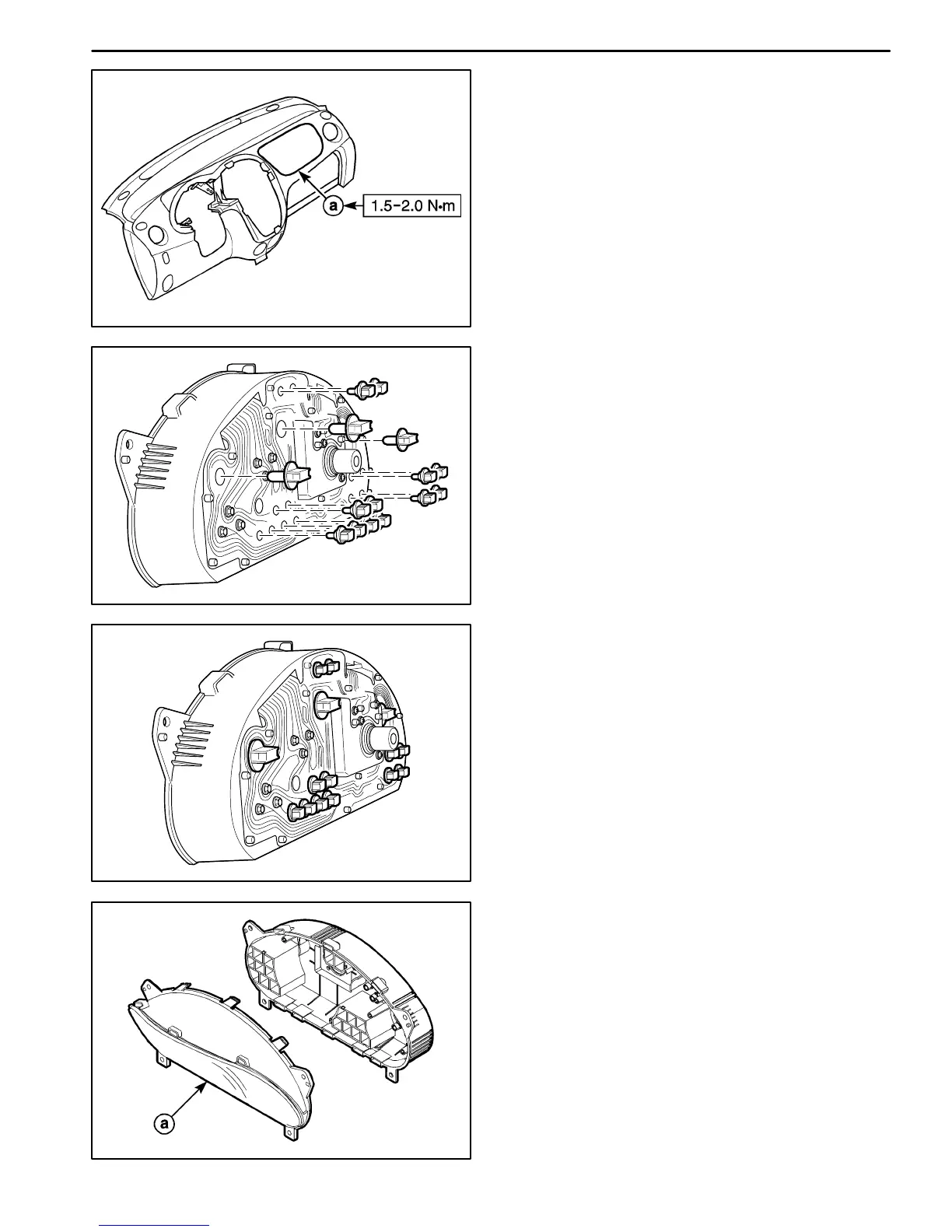

7. Install the passenger’s airbag module blank cover to
the instrument panel with the screws.
Tighten
Tighten the screws to 1.5–2 N.m (13–18 lb-in).
a. Passenger’s airbag module blank cover screw
8. Install the instrument cluster brackets to the instru-
ment panel with the screws.
9. Install the instrument panel assembly. Refer to “In-
strument Panel” in this section.
10. Connect the negative battery cable.
D109B711
INSTRUMENT CLUSTER INDICATOR
LAMPS
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the instrument cluster from the instrument
panel. Refer to “Instrument Cluster” in this section.
3. Remove the indicator bulbs from the rear of the clus-
ter.
D109B712
Installation Procedure
1. Install the indicator bulb.
2. Install the instrument cluster to the instrument panel.
Refer to “Instrument Cluster” in this section.
3. Connect the negative battery cable.
D109B713
SPEEDOMETER/ODOMETER/TRIP
ODOMETER
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the instrument cluster from the instrument
panel. Refer to “Instrument Cluster” in this section.
3. Remove the instrument cluster lens and the face
plate.
a. Window plate.
