Daewoo MATIZ - Brake Pedal

4A –10 HYDRAULIC BRAKES
DAEWOO M-150 BL2
D107A525

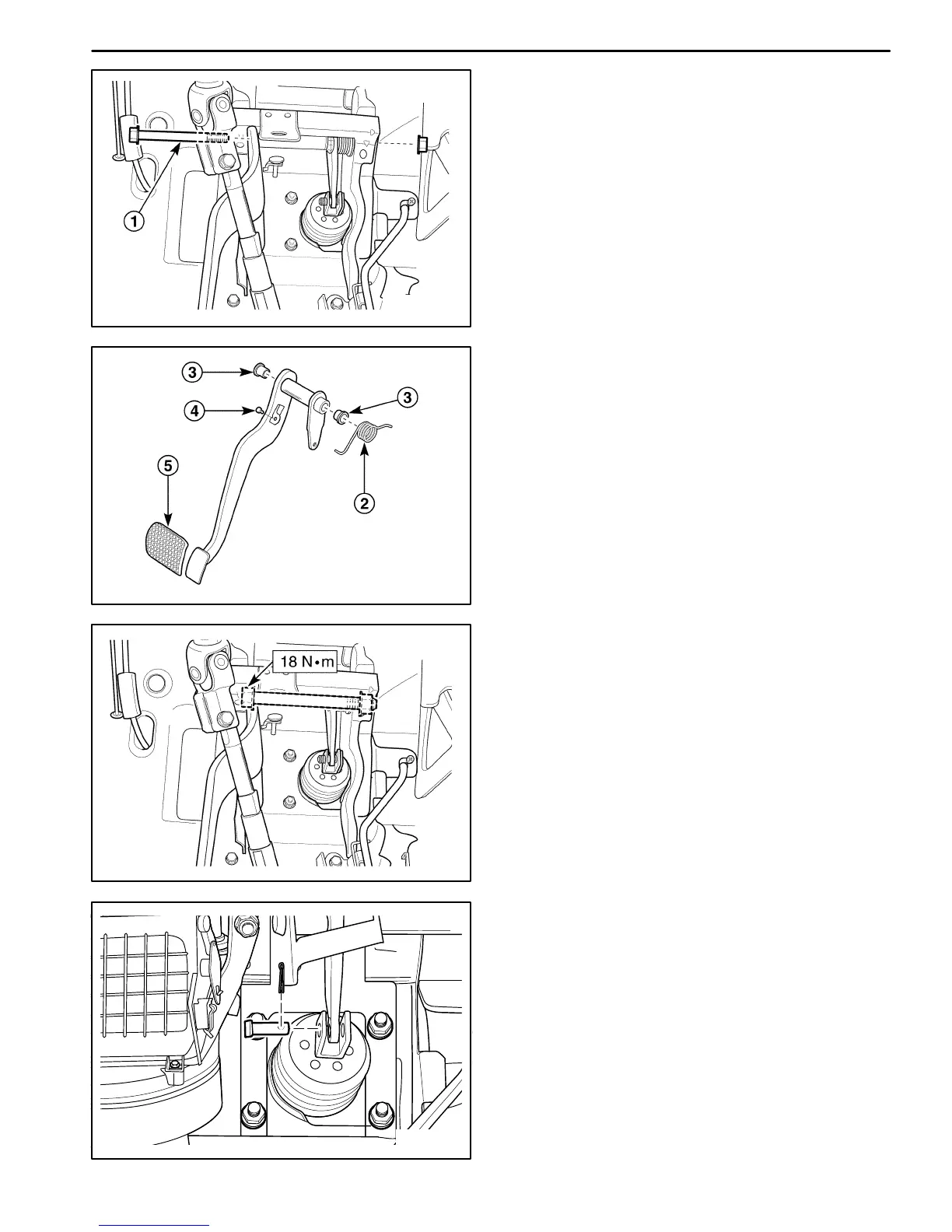

BRAKE PEDAL
(LEFT–HAND DRIVE)
Removal Procedure
1. Remove the stoplamp switch. Refer to “Stoplamp
Switch” in this section.
2. Disconnect the brake pedal from the power booster.
Refer to Section 4C, Power Booster.
3. Remove the brake pedal.
D Remove the bolt (1).
D107A526
D Remove the brake pedal spring (2).
D Remove the bushing (3).
D Remove the cushion (4).
D Remove the brake pedal pad (5).
D17A527A
Installation Procedure
1. Install the pad to the brake pedal.
2. Install the brake pedal with spring, bushing, and cush-
ion.
3. Connect the brake pedal to the power booster.
Tighten
Tighten the brake pedal–to–pedal bracket bolt to 18
NSm (13 lb-ft).
4. Install the stoplamp switch. Refer to “Stoplamp
Switch” in this section.
D24C001A
BRAKE PEDAL
(RIGHT–HAND DRIVE)
Removal Procedure
1. Remove the instrument panel assembly. Refer to
Section 9E, Instrument/Driver Information.
2. Disconnect the brake pedal rod from the power
booster. Refer to Section 4C, Power Booster.
