HYDRAULIC BRAKES 4A–11
DAEWOO M-150 BL2

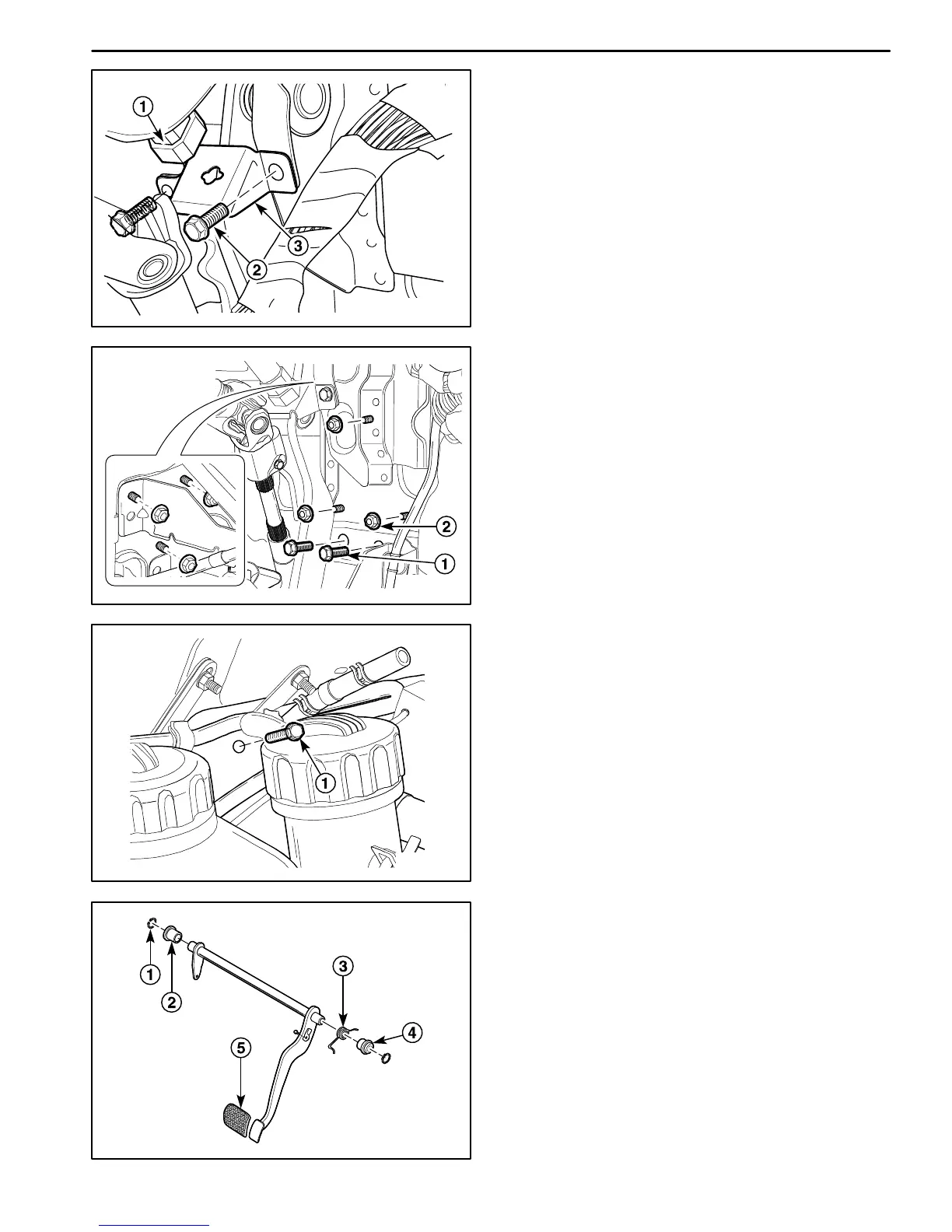

D24D001
3. Remove the stoplamp switch.
D Remove the stoplamp switch (1).
D Remove the bolts (2).
D Remove the stoplamp switch bracket (3).
D24D002
4. Remove the bolts mounting brake pedal bracket (1).
5. Remove the nuts mounting brake pedal bracket (2).
D24D003
6. Remove the canister. Refer to Section 1F, Engine
Controls.
7. Remove the bolt mounting brake pedal bracket in the
engine compartment (1).
D24D004
8. Remove the brake pedal.
D Remove the snap rings (1).
D Remove the bushings (2).
D Remove the brake pedal spring (3).
D Remove the cushion (4).
D Remove the brake pedal pad (5).
