9E –20 INSTRUMENT/DRIVER INFORMATION
DAEWOO M-150 BL2
D109B714

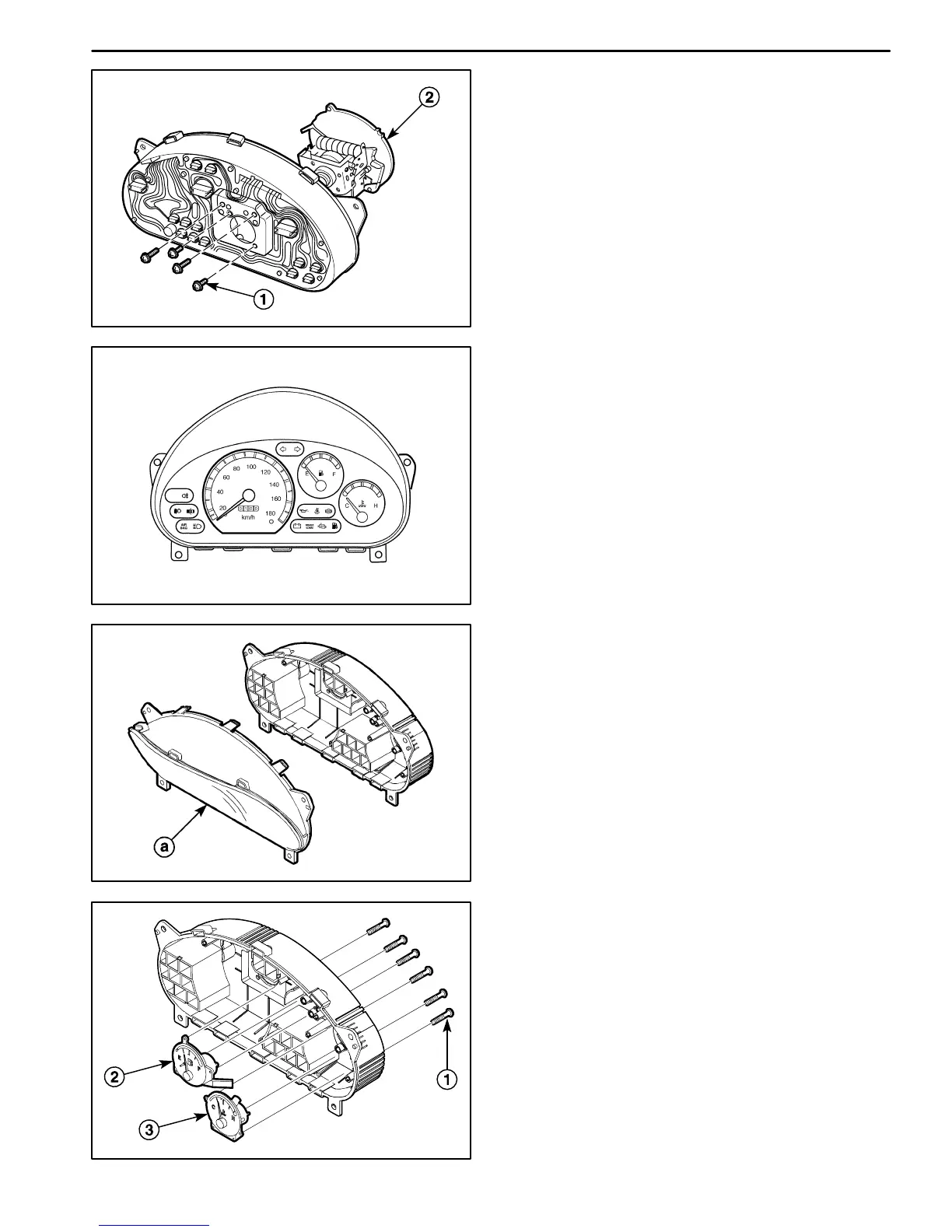

4. Remove the speedometer/odometer/trip odometer.
D Remove the screws on the circuit plate (1).
D Remove the speedometer/odometer/trip odometer
(2).
D19B715A
Installation Procedure
1. Install the speedometer/odometer/trip odometer with
the screws.
2. Install the instrument cluster lens and the face plate.
3. Install the instrument cluster. Refer to “Instrument
Cluster” in this section.
4. Connect the negative battery cable.
D109B713
FUEL GAUGE/TEMPERATURE
GAUGE
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the instrument cluster. Refer to “Instrument
Cluster” in this section.
3. Remove the instrument cluster lens and the face
plate.
a. Window plate.
D109B716
4. Remove the fuel gauge/temperature gauge from the
cluster assembly.
D Remove the screws on the circuit plate (1).
D Remove the fuel gauge (2).
D Remove the temperature gauge (3).
