5B–16 FIVE-SPEED MANUAL TRANSAXLE
DAEWOO M-150 BL2
D13B5032

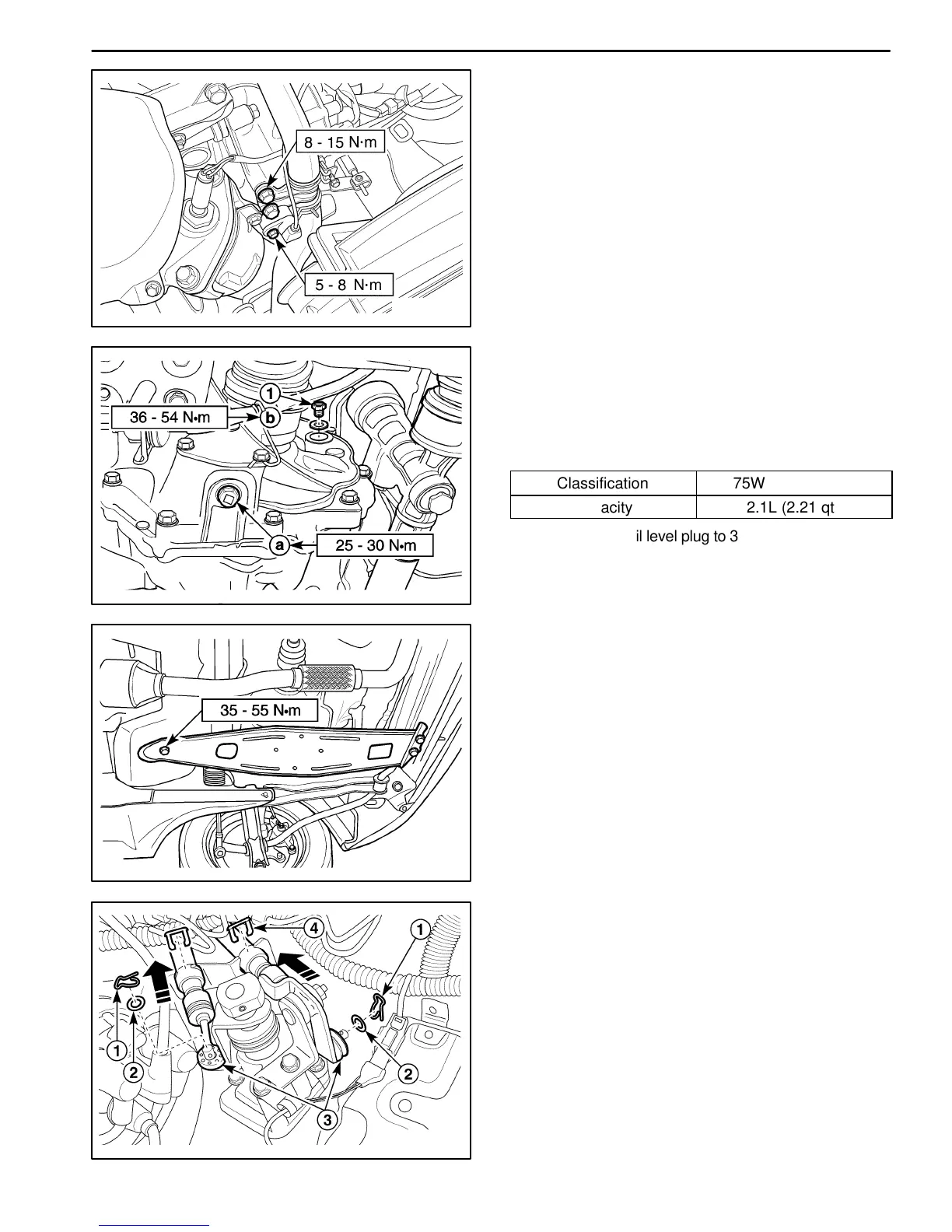

8. Install the radiator lower hose and crank position
(CKP) sensor.
Tighten
Tighten the radiator lower hose bolt to 8–15 NSm
(70–132 lb-in).
Tighten the CKP sensor bolt to 5–8 NSm (44–70 lb-
in).
D13B520A
9. Refill the transaxle fluid.
D Tighten the drain plug to 25–30 NSm (18–22 lb-ft)
(a).
D Remove the oil level plug (1).
D Refill recommended fluid to the proper level.
ÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁ
Classification
ÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁ
75W – 85 (GL–4)
ÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁ
Capacity 2.1L (2.21 qt)
D Tighten the oil level plug to 36–54 NSm (26–40 lb-ft)
(b).
D13B521A
10. Adjust the clutch cable. Refer to Section 5C, Clutch.
D Adjust the clutch cable by the clutch cable adjust
nut.
11. Install the transaxle under cover.
Tighten
Tighten the transaxle under cover bolts to 35–55
NSm (25–41 lb-ft).
D103B501
GEAR SHIFT CONTROL CASE
ASSEMBLY
Removal Procedure
1. Remove the air hose (air cleaner to throttle body).
Refer to Section 1B, SOHC Engine Mechanical.
2. Remove the battery.
3. Disconnect the select and the shift control cable.
D Remove the cable pins (1).
D Remove the washers (2).
D Disconnect the select and the shift control cable
(3).
D Remove the cable E–rings (4).
D Disconnect the cables from the cable bracket.
