FIVE-SPEED MANUAL TRANSAXLE 5B–17
DAEWOO M-150 BL2
D103B522

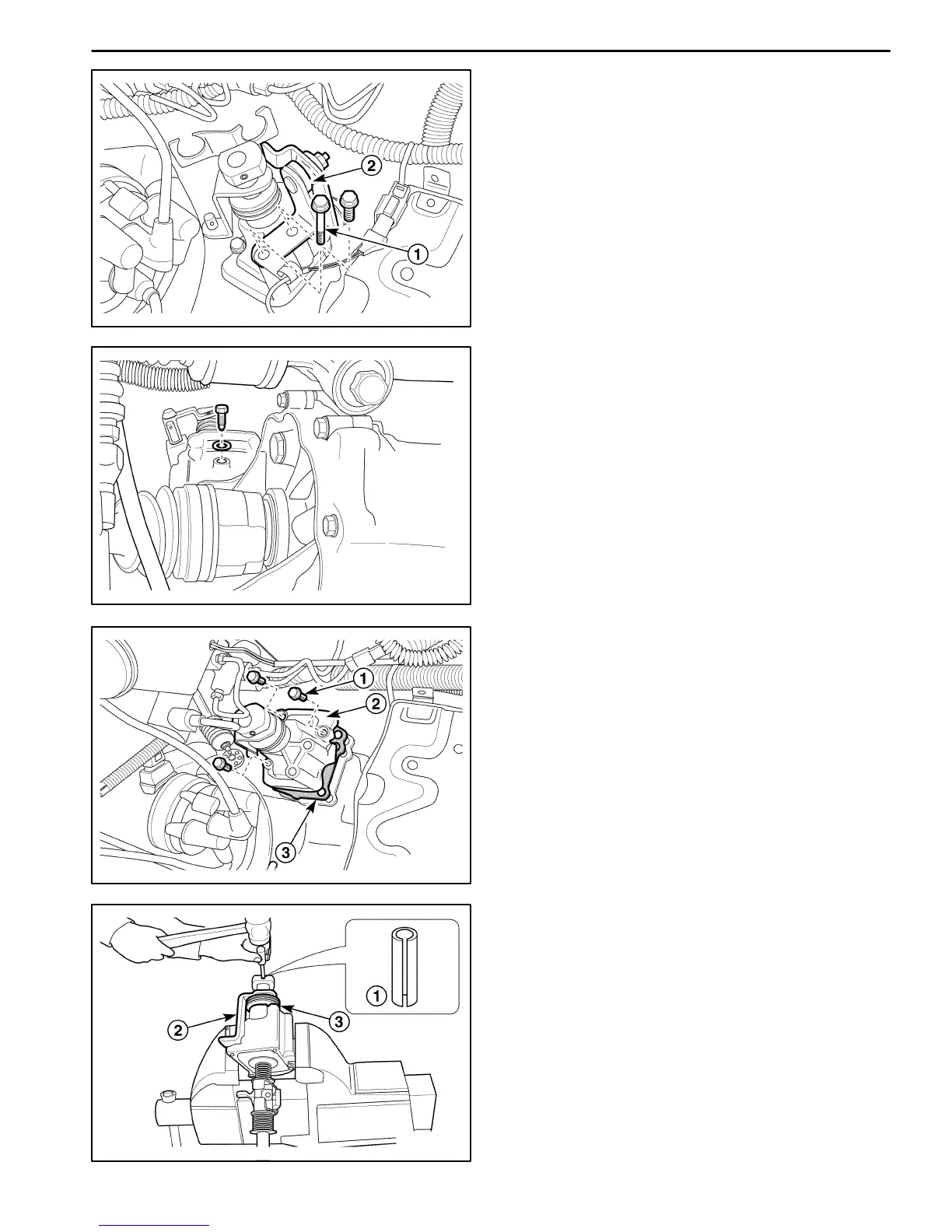

4. Remove the select lever.
D Remove the bolts (1).
D Remove the select lever (2).
D103B523
5. Remove the shift interlock bolt.
Important: Certainly remove the shift interlock bolt.
Otherwise, the gear shift control case can not be re-
moved.
D103B524
6. Remove the gear shift control case assembly.
D Remove the bolts (1).
Important: Make sure the gear shift lever is in NEU-
TRAL.
D Remove the gear shift control case assembly (2).
D Remove the gasket (3).
D103B525
7. Remove the shift lever.
D Position the gear shift control case assembly to the
vice with a protector.
D Remove the lever pin with a pin punch and a ham-
mer (1).
D Remove the shift lever (2).
D Remove the boot (3).
