Daewoo MATIZ - Rear Door Trim Panel (Standard)

9G –6 INTERIOR TRIM
DAEWOO M-150 BL2
D109E539
4. Remove the inside channel weatherstrip. Refer to
Section 9P, Doors.

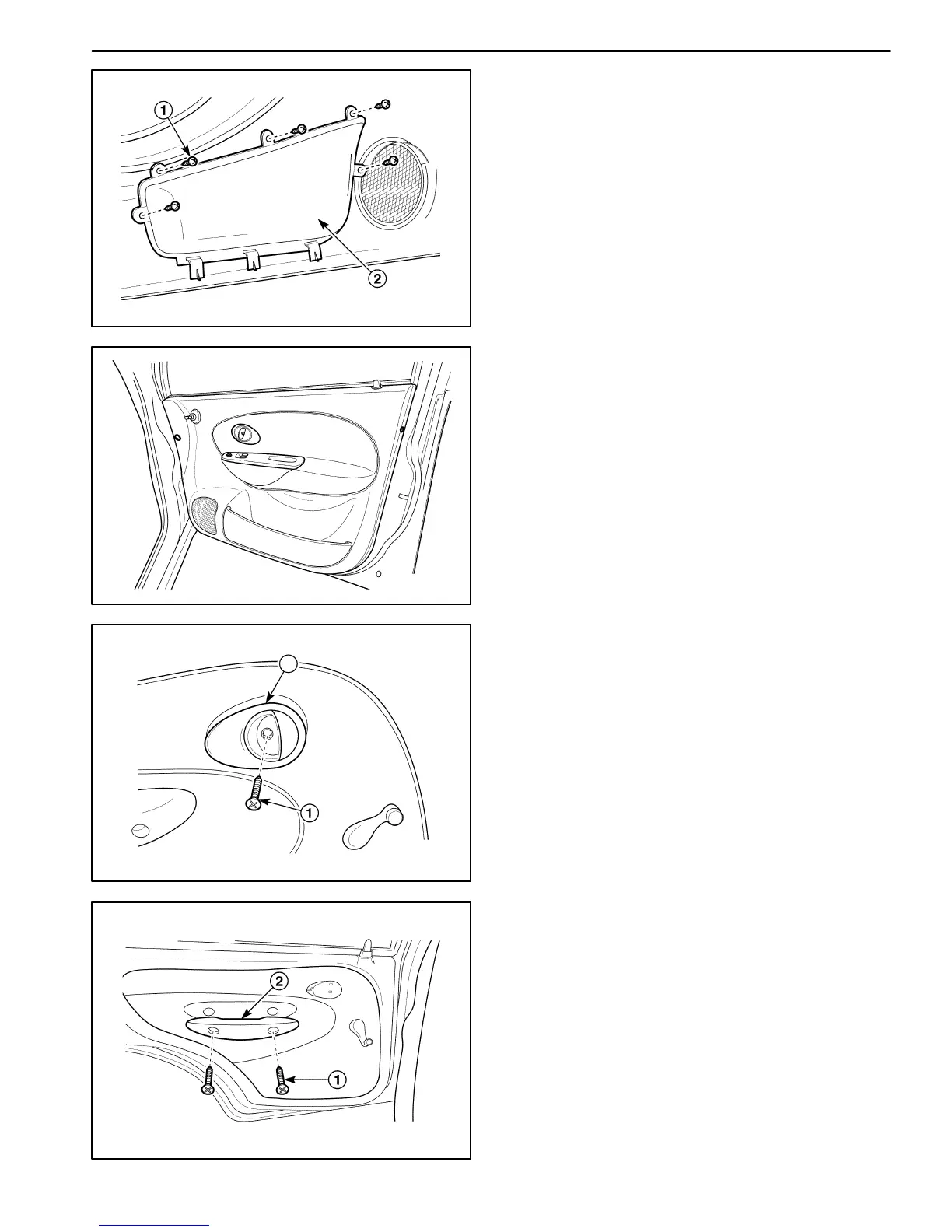

5. Remove the map pocket from the door trim.
D Remove the screws (1).
D Remove the map pocket (2).
D19E540A
Installation Procedure
1. Install the map pocket to the door trim with the
screws.
2. Install the inside channel weatherstrip. Refer to Sec-
tion 9P, Doors.
3. Install the door trim panel with the screws and the
clips.
4. Install the power window/mirror control switch assem-
bly with the screw.
5. Install the inside door handle. Refer to Section 9P,
Doors.
D109E541
2
REAR DOOR TRIM PANEL
(STANDARD)
Tool Required
KM 475–B Trim Remover.
Removal Procedure
1. Remove the inside door handle.
D Remove the screw (1).
D Disconnect the inside door handle rod.
D Pry off the inside door handle (2).
D109E542
2. Remove the door pull.
D Remove the screws (1).
D Remove the door pull (2).
