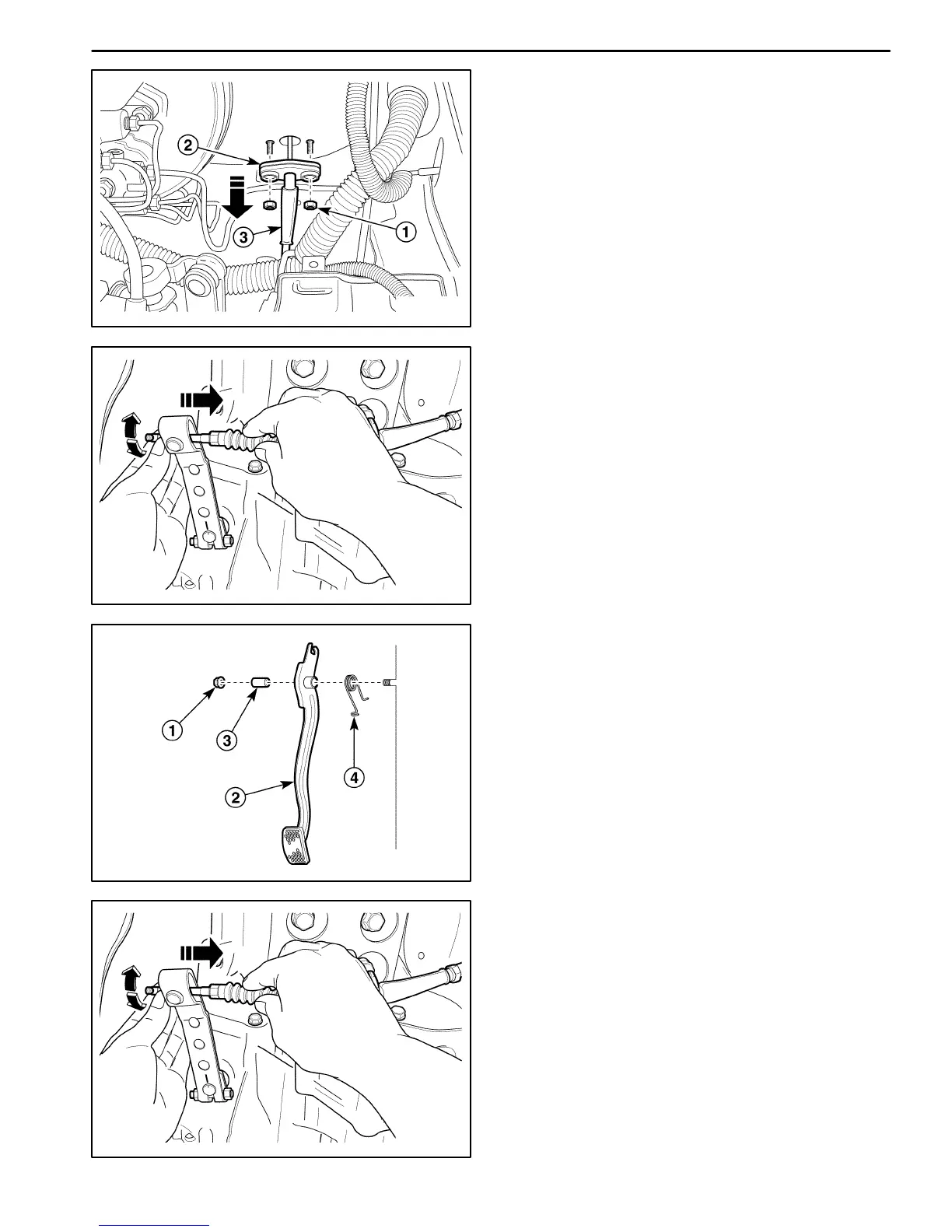

5C –12 CLUTCH
DAEWOO M-150 BL2
D103C522
3. Remove the battery. Refer to Section 1E, Engine
Electrical.
4. Remove the clutch cable.
D Remove the nuts (1).
D Remove the cable grommet (2).
D Remove the cable from the pedal (3).
D103C302
Installation Procedure
1. Install the clutch cable.
2 Install the battery.
3. Connect the clutch cable to the pedal.
4. Connect the clutch cable to the transaxle.
5. Adjust the clutch cable. Refer to “Diagnosis” in this
section.
D103C524
CLUTCH PEDAL
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Disconnect the clutch cable. Refer to “Clutch Cable”
in this section.
2. Remove the clutch pedal.
D Release the pedal return spring.
D Remove the nut (1).
D Remove the clutch pedal (2).
D Remove the bushing (3).
D Remove the pedal return spring (4).
D103C302
Installation Procedure
1. Install the pedal return spring.
2. Install the bushings.
3. Install the clutch pedal.
4. Install the nut.
5. Fix the pedal return spring.
6. Connect the clutch cable.
7. Adjust the clutch cable. Refer to “Diagnosis” in this
section.
