FIVE-SPEED MANUAL TRANSAXLE 5B–45
DAEWOO M-150 BL2
D103B768
4. Install the second synchronizer ring.
Important: Position the second synchronizer ring groove
to the synchronizer hub key.

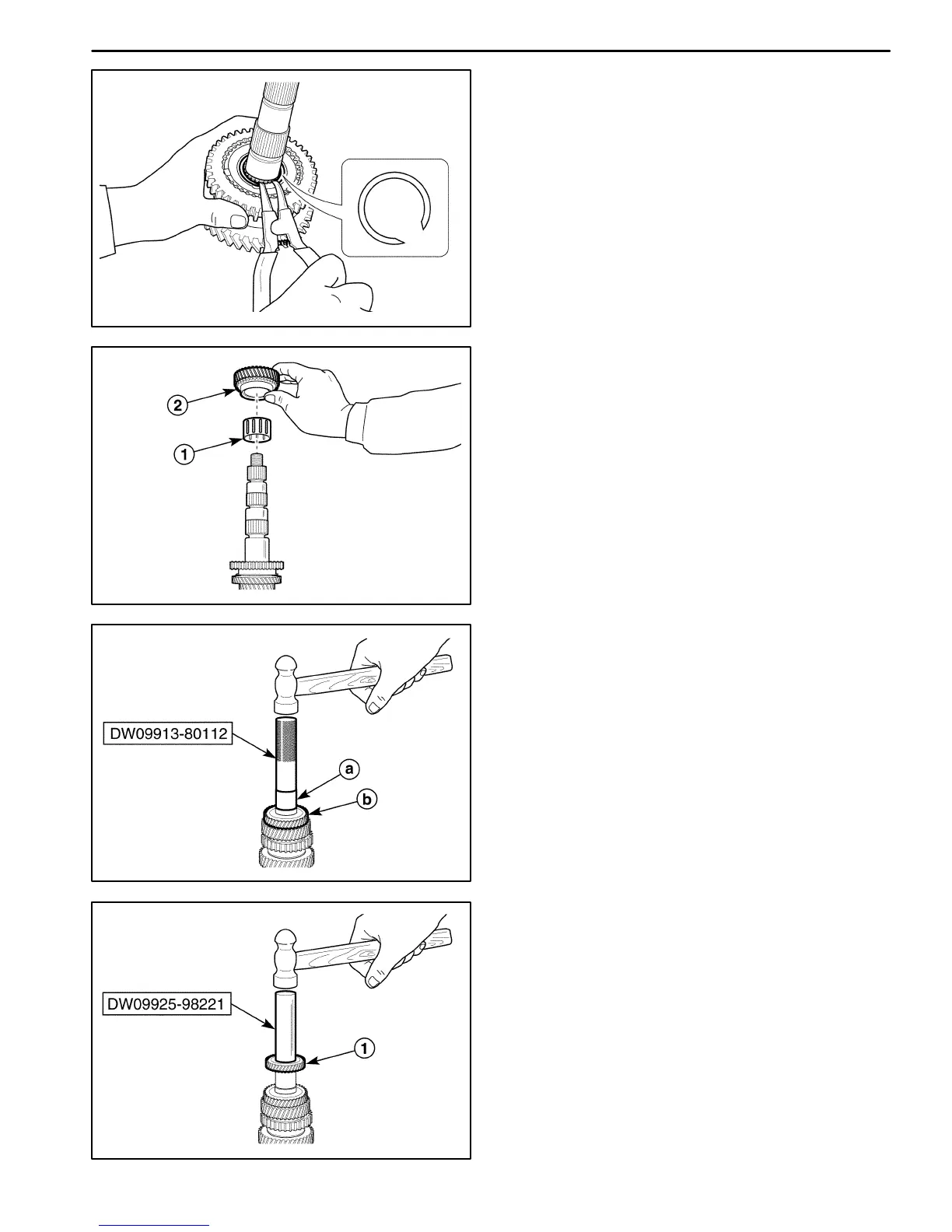

5. Install the first–second gear synchronizer circlip.
D103B777
6. Install the related counter shaft second gear.
D Install the second gear bearing (1).
D Install the second gear (2).
D103B778
7. Install the counter shaft third gear and the third–fourth
gear spacer.
D Insert the third gear and the third–fourth gear
spacer into the counter shaft.
D Install the following parts using the gear, bearing
installer DW09913–80112 and a hammer.
a. Third–fourth gear spacer.
b. Third gear.
D103B779
8. Install the counter shaft fourth gear.
D Install the fourth gear to the counter shaft using the
gear, bearing installer DW09925–98221 and a
hammer (1).
