FIVE-SPEED MANUAL TRANSAXLE 5B–11
DAEWOO M-150 BL2
D13B5031

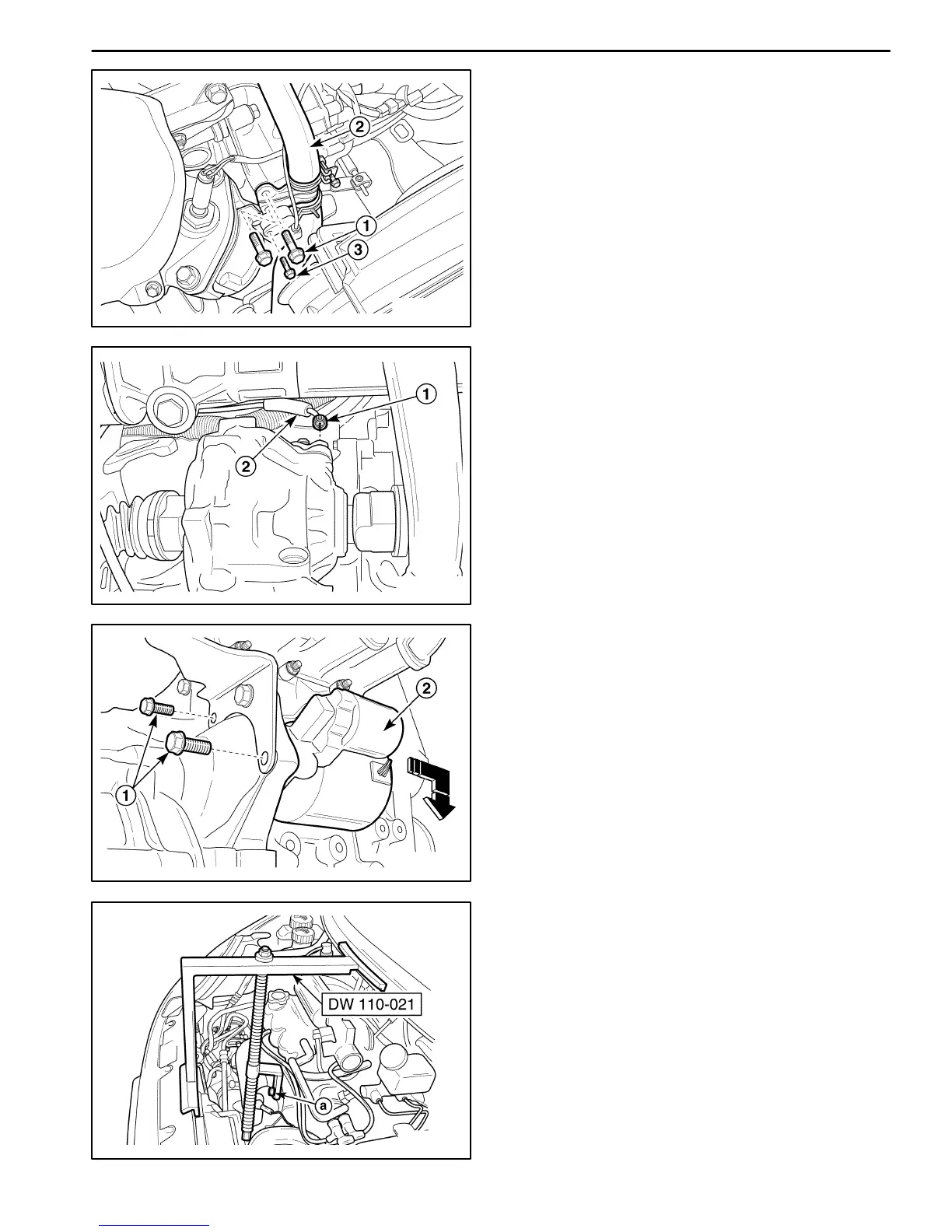

6. Disconnect the radiator lower hose.
D Remove the bolts (1).
D Disconnect the radiator lower hose (2).
7. Remove crankshaft position (CKP) sensor.
D Remove the bolt (3).
D Disconnect the CKP sensor connector
D Remove the CKP sensor.
D103B507
8. Disconnect the speedometer cable.
D Loosen the nut (1).
D Disconnect the cable (2).
9. Remove the vehicle speed sensor (VSS) if
equipped.
D Disconnect VSS connector.
D Remove the VSS.
D102E502
10. Remove the starter motor.
D Remove upper two bolts that securing starter mo-
tor to transaxle.
D13B5041
11. Fix the engine assembly.
D Remove the cowl panel weatherstrip.
D Position the engine support fixture DW110–021
on the cowl panel and the front upper panel.
D Tighten the engine fixture joint with a bolt after re-
moving exhaust manifold bolt (No.4).
To Next Page
