LIGHTING SYSTEMS 9B–7
DAEWOO M-150 BL2
REPAIR INSTRUCTIONS
ON–VEHICLE SERVICE
D209B109

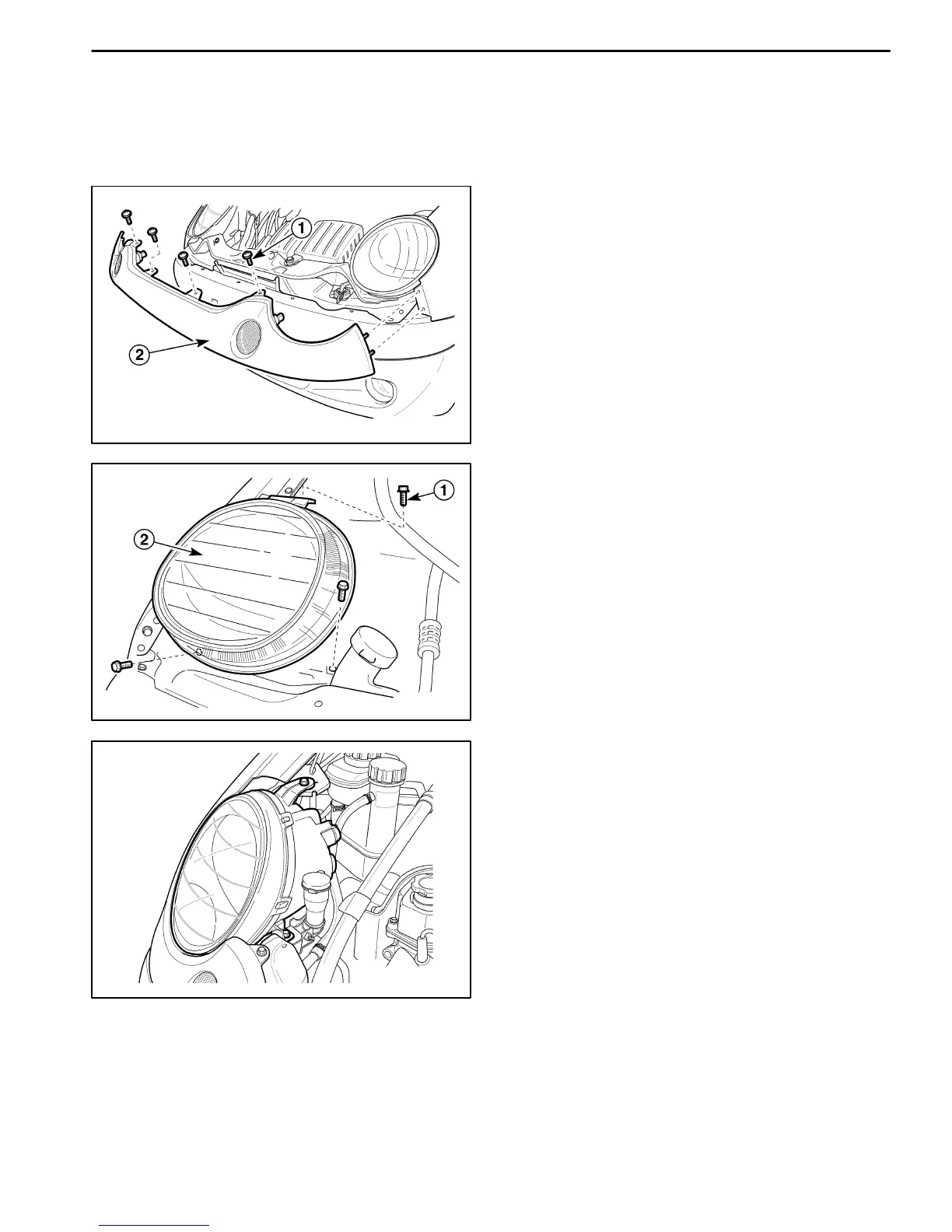

HEADLAMPS
Removal Procedure
1. Support the hood suitably.
2. Disconnect the negative battery cable.
3. Remove the front bumper spacer.
D Remove the bolts (1).
D Remove the front bumper spacer from the bumper
fasia (2).
D19D502A
4. Remove the headlamp.
D Remove the bolts and washer (1).
D Disconnect the electrical connectors.
D Remove the headlamp (2) .
D19D503A
Installation Procedure
1. Install the headlamp with the bolts.
2. Connect the headlamp connector and parking lamp
connector.
3. Install the front bumper spacer with the bolts.
4. Connect the negative battery cable.
To Next Page
