1F–178 ENGINE CONTROLS
DAEWOO M-150 BL2
MAA1F220
DIAGNOSTIC TROUBLE CODE (DTC) – P1385 ROUGH ROAD SENSOR CIRCUIT
FAULT (ABS)

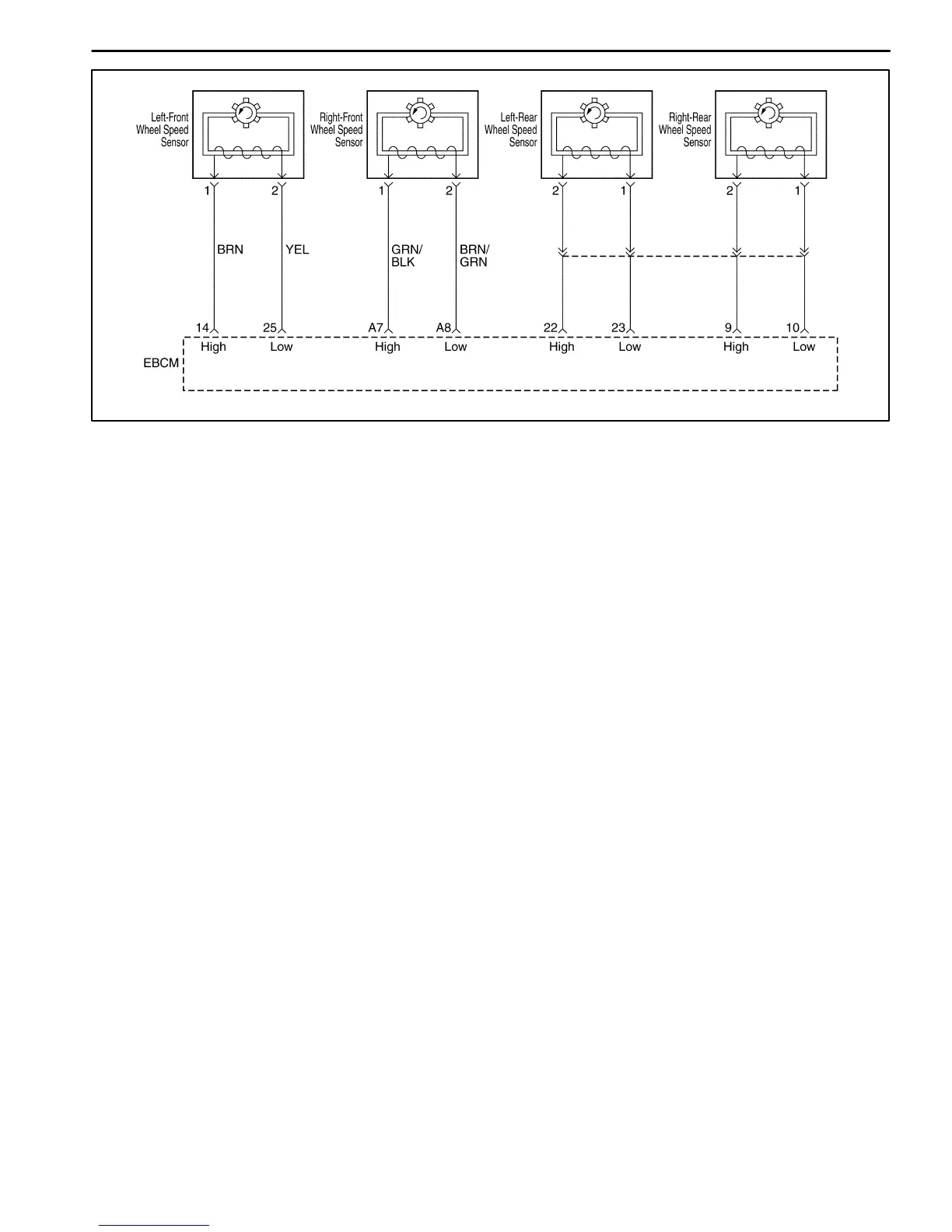

Circuit Description
The wheel speed sensor is used to detecting the road
situation.
As the wheel is rotated, the wheel speed sensor pro-
duces an AC voltage that increase with wheel speed.
The EBCM uses the frequency of the AC signal to calcu-
late wheel speed. The wheel speed sensor is connected
to EBCM by a “twisted pair” of wires. Twisting reduces
noise susceptibility than may cause a DTC to se.If the
wheel speed sensor detects a rough road condition, the
ECM misfire detection diagnostic will be de-activated.
Conditions for Setting the DTC
D Vehicle speed is higher than 10km/h(6.21mph).
D No Vehicle Speed Sensor error not set.
D VR sensor output signal is higher than 0.26.
D VR sensor output signal is not change for 30seconds.
Action Taken When The DTCs Sets
D The Malfunction Indicator Lamp (MIL) will not illumi-
nate.
D The ECM will store conditions which were present
when the DTC was set as Failure Records data only.
D This information will not be stored in the Freeze
Frame data.
Conditions for Clearing the MIL/DTC
D A history DTC will clear after 40 consecutive warm-up
cycles without a fault.
D DTC(s) can be cleared by using the scan tool.
D Disconnecting the ECM battery feed for more than 10
seconds.
To Next Page
