MANUAL TRANSAXLE DRIVE AXLE 3B–7
DAEWOO M-150 BL2
D14B505B

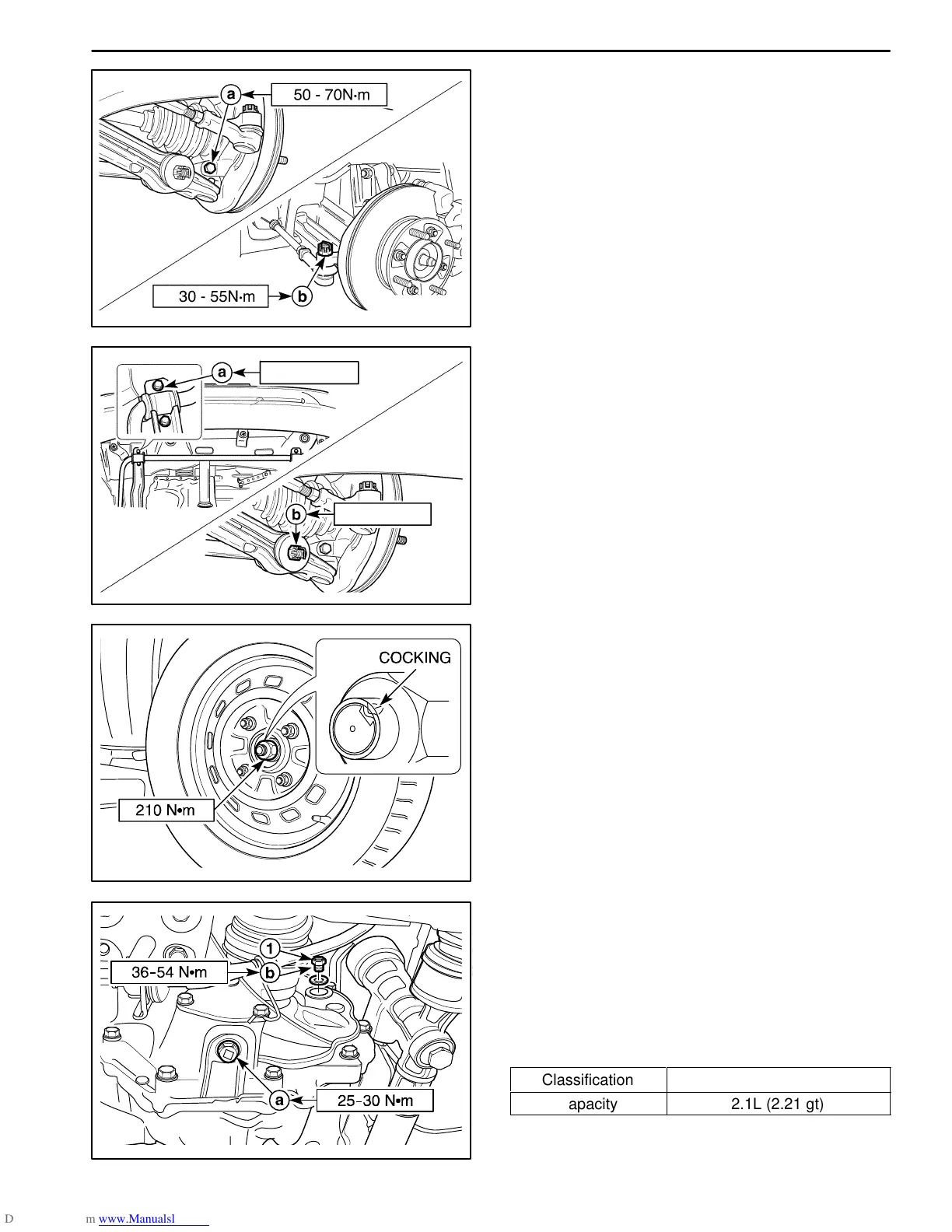

5. Install the control arm ball joint bolt.
Tighten
Tighten the control arm ball joint bolt to 50–70 NSm
(36–52 lb-ft).
a. Control arm ball joint bolt
6. Install the tie rod into the knuckle and install the tie
rod end joint castellated nut.
Tighten
Tighten the tie rod end joint castellated nut to 30–55
NSm (21–41 lb-ft).
b. Tie rod end joint castellated nut.
D14B506A
33–53 NSm
40–50 NSm
7. Install the stabilizer bar.
Tighten
D Tighten the stabilizer bar mounting bolts 33–53
NSm (24–39 lb-ft).
D Tighten the stabilizer bar castellated nut to 40–50
NSm (30–36 lb-ft).
a. Stabilizer bar mounting bolt.
b. Stabilizer bar castellated nut.
D14B507A
8. Install the drive axle shaft nut.
Tighten
Tighten the drive axle shaft nut to 210 NSm (155 lb-ft)
Notice: Always use a new nut. Always peen the
caulking nut with a punch and a hammer until the nut
is locked into place on the wheel hub.
9. Install the wheels. Refer to Section 2E, Tires and
wheels.
D13BB520A
10. Refill the transaxle fluid to the proper level.
D Tighten the drain plug to 25-30 NSm (18-22 lb-ft)
(a).
D Remove the oil level plug (1).
D Refill recommended fluid to the proper level.
D Tighten the oil level plug to 36-54 NSm (26–40 lb-
ft) (b).
Classification
75W–85 (GL–4)
Capacity 2.1L (2.21 gt)
