FIVE-SPEED MANUAL TRANSAXLE 5B–37
DAEWOO M-150 BL2
D103B747

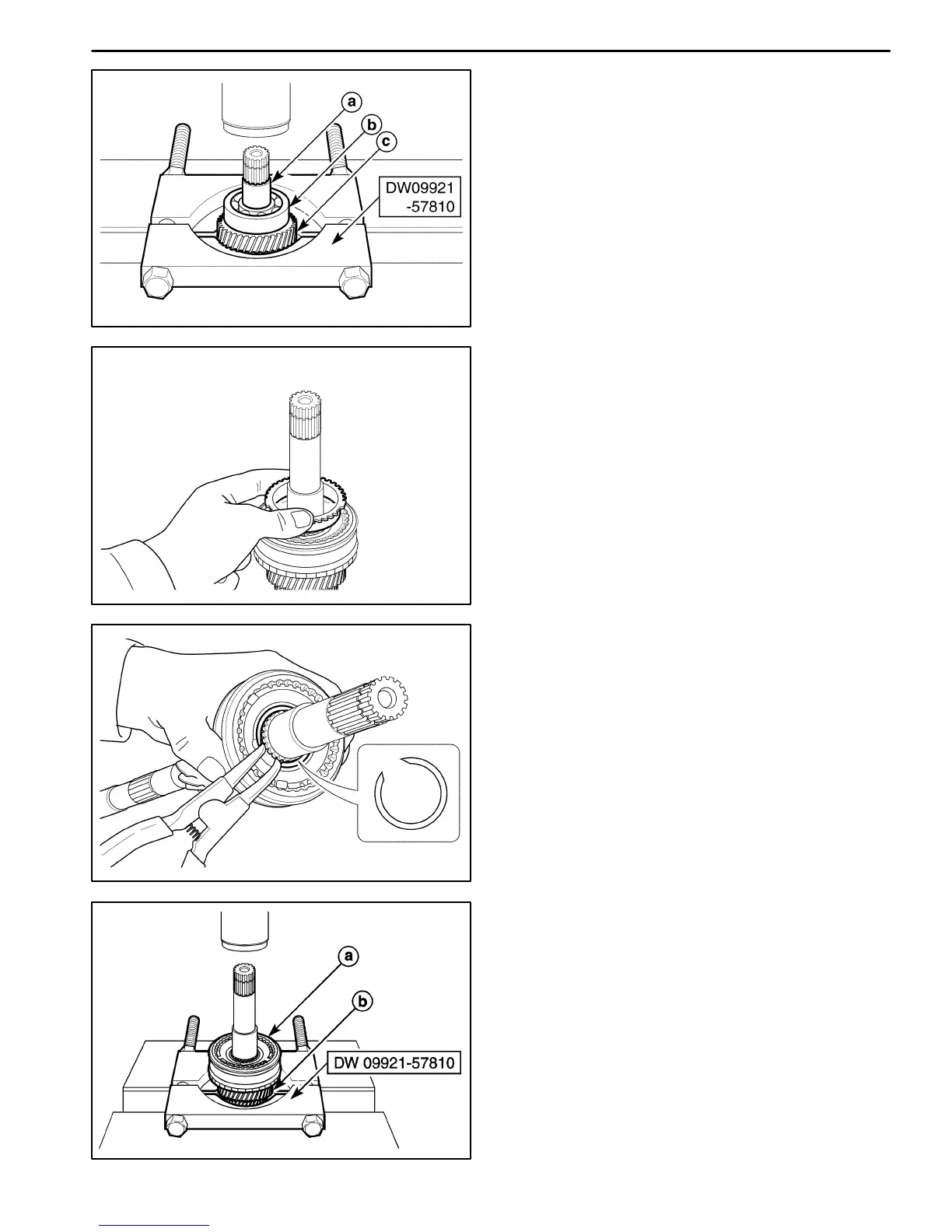

3. Remove the input shaft fifth gear spacer, the left side
bearing and the fourth gear.
D Position the fourth gear to the gear,bearing remov-
er DW09921–57810.
D Remove the following parts.
a. Fifth gear spacer.
b. Left side bearing.
c. Fourth gear
D103B748
4. Remove the fourth gear bearing.
5. Remove the fourth gear synchronizer ring and wave
spring.
D103B749
6. Remove the third–fourth synchronizer circlip.
D103B750
7. Remove the third–fourth synchronizer hub assembly,
the third gear 1 synchronizer ring.
D Position the third gear to the gear, bearing remover
DW09921–57810.
D Remove the following parts.
a. Third–fourth synchronizer hub assembly.
b. Third gear and synchronizer ring.
