5B–40 FIVE-SPEED MANUAL TRANSAXLE
DAEWOO M-150 BL2
D103B759

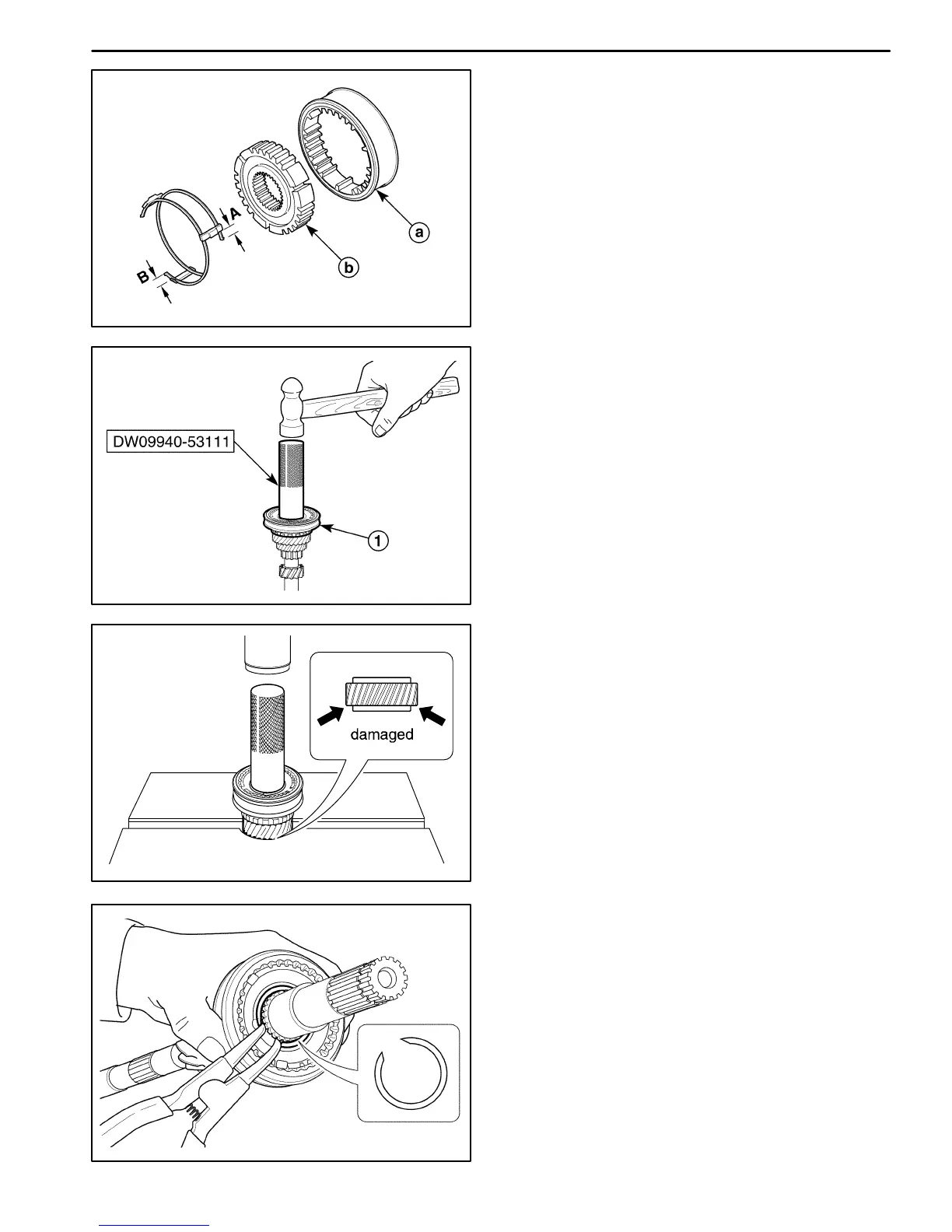

2. Assemble the third–fourth synchronizer hub assem-
bly.
D Install the synchronizer springs to the hub.
D Install the synchronizer key to the hub.
Important: In case of assembling the synchronizer
sleeve and the hub, let A=B.
D Install the hub to the sleeve.
a. Sleeve.
b. Hub.
D103B760
3. Install the third–fourth synchronizer hub assembly.
D Insert the hub assembly into the input shaft (1).
Important: Position the longer flange of hub toward the
third gear and match the key and the ring groove.
D Install the hub assembly using a hammer and the
gear, bearing installer DW09940–53111.
D13B761A
Notice: When installing gear, bearing and hub assem-
bly, install them slowly using the gear, bearing installer
DW09940–53111 and a hammer. If overpressed, the
gear teeth may be damaged.
D103B749
4. Install the third–fourth synchronizer circlip.
5. Install the fourth synchronizer ring and wave spring.
Important: Match the ring groove to the key of hub.
