5B–50 FIVE-SPEED MANUAL TRANSAXLE
DAEWOO M-150 BL2
D103B795

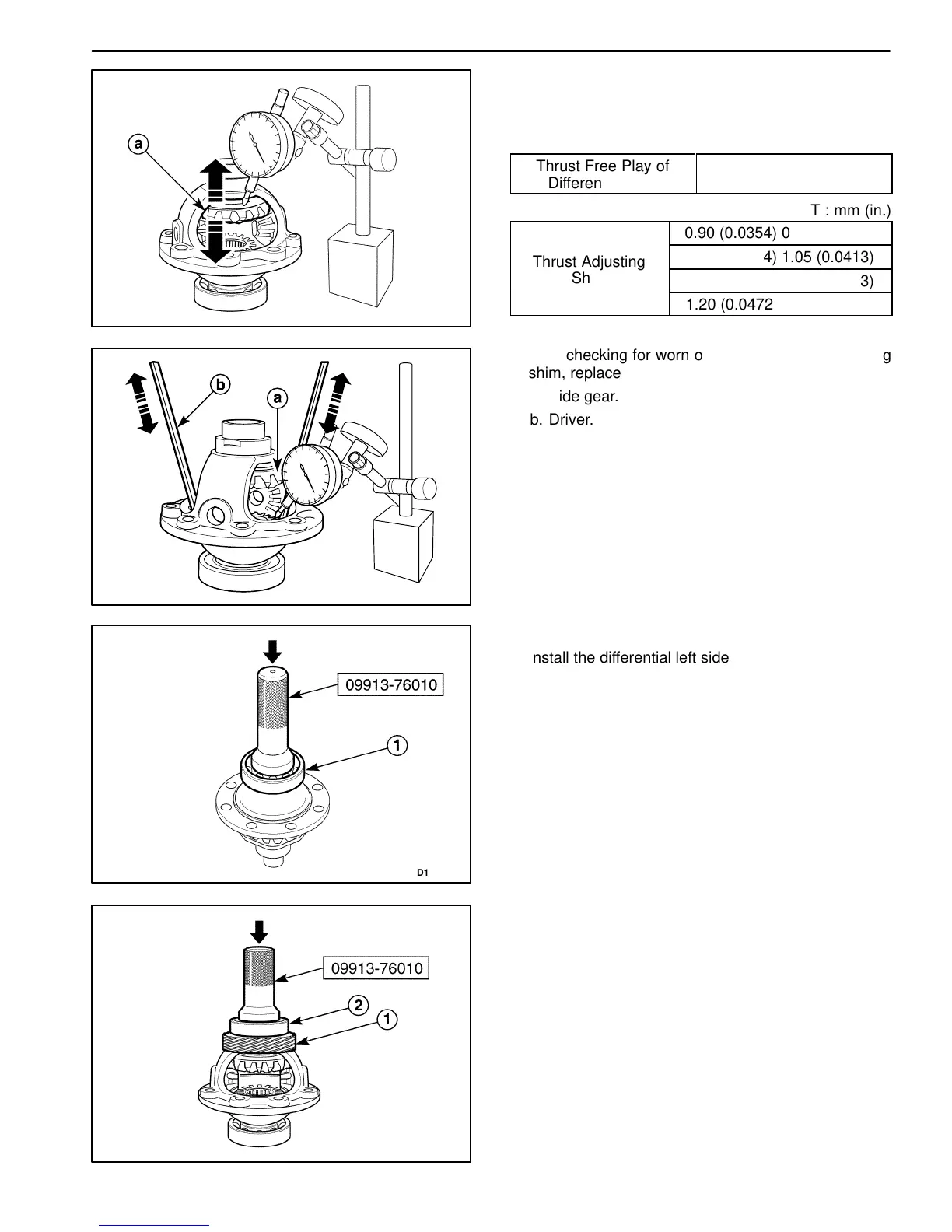

Side Gear Play Inspection
1. Measure the axle direction play of side gear and re-
place a side gear washer if it exceeds limit.
UNIT : mm (in.)
ÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁ
Thrust Free Play of
Differential Side
ÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁ
0.05–0.33
(0.0020–0.0130)
UNIT : mm (in.)
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
0.90 (0.0354) 0.95 (0.0374)
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁ
Thrust Adjusting
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
1.00 (0.0394) 1.05 (0.0413)
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁ
Thrust Adjusting
Shim
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
1.10 (0.0433) 1.15 (0.0453)
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
1.20 (0.0472)
D103B796
2. After checking for worn or scratched thrust adjusting
shim, replace it if necessary.
a. Side gear.
b. Driver.
D103B797
Assembly Procedure
1. Install the differential left side bearing.
D Insert the left side bearing (1).
D Install the left side bearing using the bushing, seal
installer 09913–76010 and a hammer.
Important: Coat the inner parts; bearing, washer, shim
etc. with gear fluid.
D103B798
2. Install the speedometer drive gear and differential
right side bearing.
D Insert the speedometer drive gear(1).
D Insert the differential right side bearing (2).
D Install the right side bearing using the bushing,
seal installer 09913–76010 and a hammer.
