MANUAL STEERING GEAR 6D–3
DAEWOO M-150 BL2
COMPONENT LOCATOR

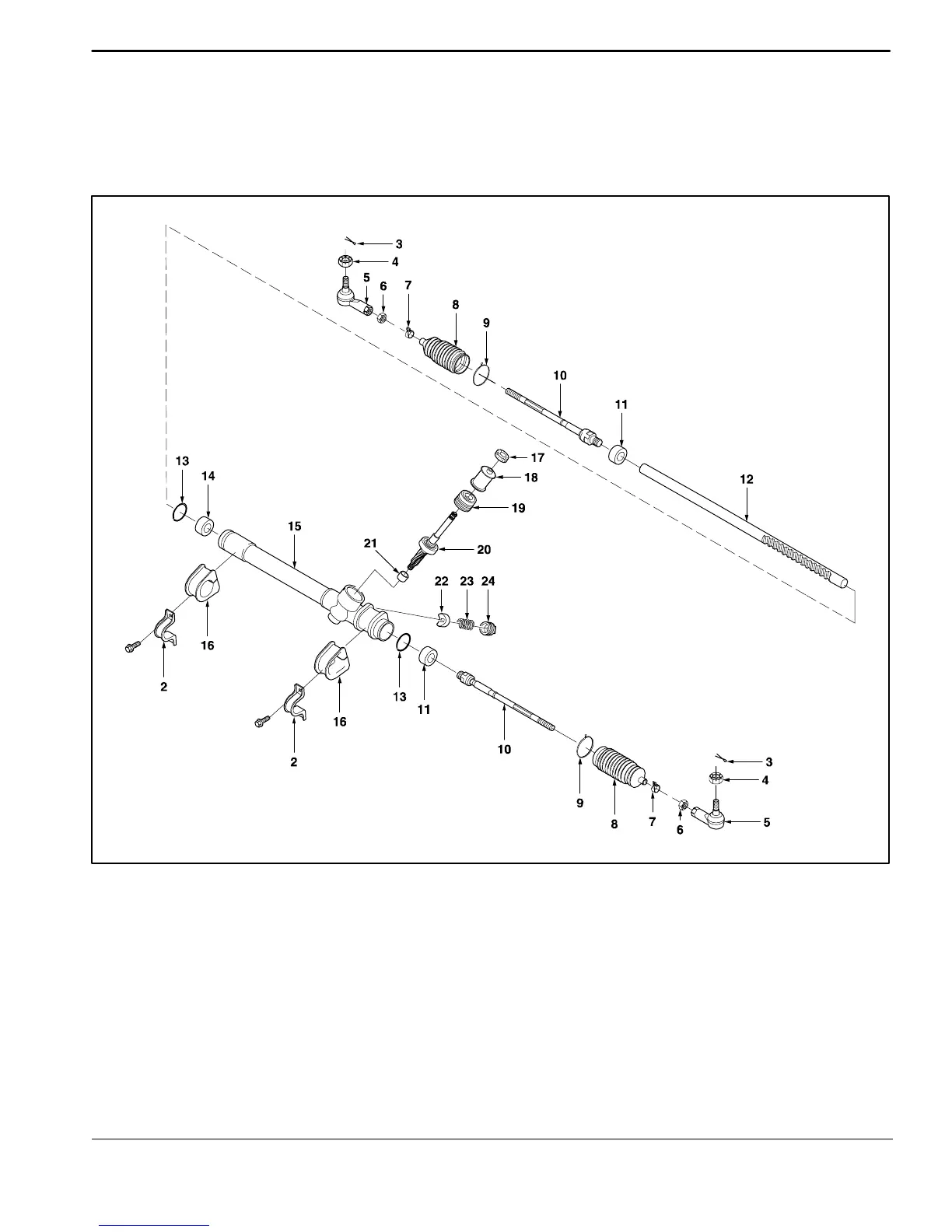

MANUAL RACK AND PINION STEERING GEAR
(Left–Hand Drive Shown, Right–Hand Drive Similar)
D105B401
1. Manual Steering Gear
2. Steering Gear Bracket
3. Cotter Pin
4. Castellated Nut
5. Tie Rod End
6. Tie Rod End Lock Nut
7. Rack and Pinion Boot Clamp
8. Rack and Pinion Boot
9. Rack and Pinion Boot Wire Clamp
10. Tie Rod
11. Shock Damper Ring
12. Steering Rack Gear
13. Bulkhead Retainer
14. Bulkhead Bushing
15. Steering Gear Housing
16. Steering Gear Bracket Bushing
17. Packing
18. Dust Cover
19. Pinion Plug
20. Steering Pinion Gear
21. Roller Bearing
22. Rack Bearing
23. Adjuster Spring
24. Adjuster Plug
