6E –10 STEERING WHEEL AND COLUMN
DAEWOO M-150 BL2
D105A511

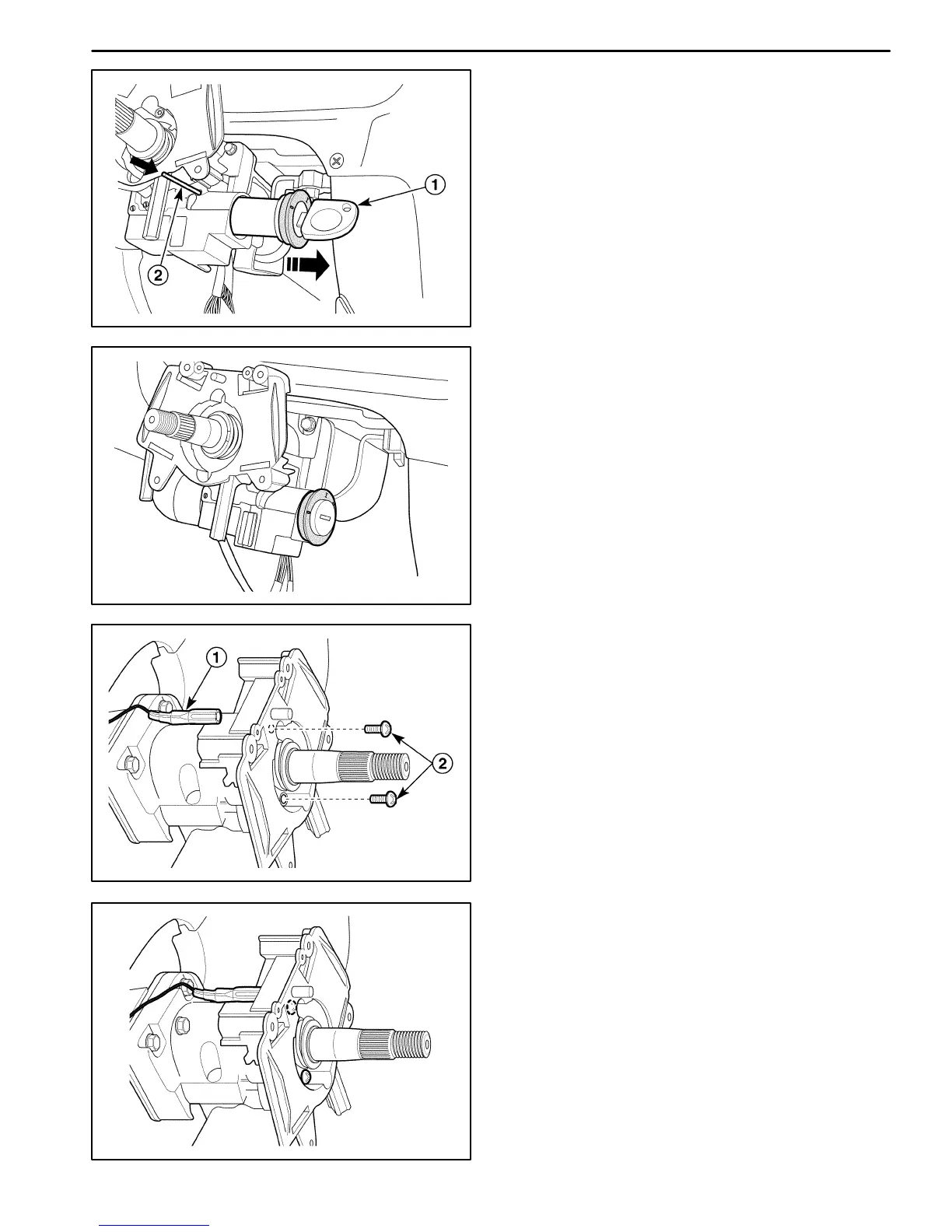

D Remove the lock cylinder by pressing down the
detent spring with a 2.5MM allen wrench, or other
suitable tool, and pulling the lock cylinder out of the
switch cylinder housing (2).
D105A512
Installation Procedure
Important: To install the ignition lock cylinder the igni-
tion position should be designated I.
1. Install the ignition lock cylinder.
2. Connect the electrical connector for the immobilizer
detection coil.
3. Install the steering wheel. Refer to “Steering Wheel”
in this section.
D105A513
SWITCH HOUSING
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Remove the steering wheel. Refer to “Steering
Wheel” in this section.
2. Remove the turn signal switch and windshield wiper
switch. Refer to “Turn Signal Switch and Lever/Wiper
Switch and Lever” in this section.
3. Remove the switch housing.
D Disconnect the horn electrical connector (1).
D Remove the screws retaining the switch housing
(2).
D105A514
Installation Procedure
1. Install the switch housing with the screws.
2. Connect the horn electrical connector.
3. Install the turn signal switch and windshield wiper
switch. Refer to “Turn Signal Switch and Lever/Wiper
switch and Lever” in this section.
4. Install the steering wheel. Refer to “Steering Wheel”
in this section.
